camry 2014 remote start wiring?
Printed From: the12volt.com
Forum Name: Car Security and Convenience
Forum Discription: Car Alarms, Keyless Entries, Remote Starters, Immobilizer Bypasses, Sensors, Door Locks, Window Modules, Heated Mirrors, Heated Seats, etc.
URL: https://www.the12volt.com/installbay/forum_posts.asp?tid=142075
Printed Date: July 09, 2025 at 7:58 PM
Topic: camry 2014 remote start wiring?
Posted By: pesho
Subject: camry 2014 remote start wiring?
Date Posted: November 21, 2016 at 1:24 PM
I need help with wiring a remote start with toyota camry 2014 standart key.
I need help with the ignition connector.
the camry conector have wires as follow:
Pin6 Ignition1 Black thick wire
Pin1 Ignition2 Pink thin wire
Pin3 Starter1 Lt.Green thin wire
Pin7 Starter2 Blue thick wire
Pin5 +12V Batt Green thick wire
Pin2 Accessory White thin wire
the remote starter have:
ACC
IGN1
BAT
BAT
START
IGN2
how they should be connected?
Thank you in advance!
Replies:
Posted By: howie ll
Date Posted: November 21, 2016 at 2:19 PM
Are you kidding?
Ah well here goes:-
Both your batts to pin 5 or to thick white feeding dash fusebox or management ECU
ACC to pin 2
Ign 1 to pin6
Ign 2 to pin 1
Start to pin 7
As for your second starter, what brand of R/Start are you installing?
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: pesho
Date Posted: November 21, 2016 at 4:46 PM
No i Don't kidding!
the remote start Audiovox APS57A there is install manual online for APS57A which is the same.
it is obvious that the accessory go to accessory and so on, but I don't know about the second starter wire!?
the car won't start! when the remote starter try to start the engine it turns on the ignition ( the dashboard light up and you can hear the gas pump running), but the starter don't engage/crank the engine.
I don't know where and how to huck up the second starter wire.
Posted By: howie ll
Date Posted: November 21, 2016 at 4:54 PM
Isn't there a secondary NEG starter output (thin) on the loom?
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: howie ll
Date Posted: November 21, 2016 at 5:02 PM
This is for the APS57E but it should be the same:-
14 pin plug, pin 8 BLACK / YELLOW use a standard automotive relay with a diode 1N4004.
BLACK / YELLOW to 85
Wire from IGN 1 to 86
30amp fused constant to 87
Wire to second starter from 30
Diode goes from 85 to 86, band towards 86.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: pesho
Date Posted: November 21, 2016 at 5:17 PM
all wires that are available are in my first post. please look at it.
I'm not familiar with the new cars. I'm duing this for friend of mine and I don't do this for living, this is my third install of remote starter.
I don't know if second starter is necessary at all. Can you explain the sequence how the whole thing works, maybe I can put a diode/s to the starter wire/s and connect them together???
Posted By: pesho
Date Posted: November 21, 2016 at 5:28 PM
ok I see... the ignition1 and ignition2 should have positive at the same time during start/crank. is that correct?
Thank you for the help! I don't have the car right now, but during the weekend we can will try.
Posted By: pesho
Date Posted: November 21, 2016 at 5:33 PM
I mean igniton1, igniton2, starter1 and starter2 should have positive during start/crank ???
Posted By: howie ll
Date Posted: November 21, 2016 at 5:36 PM
With Toyotas yes. Most other cars IGN isn't that needed to start normally runs HVAC, windows, wipers etc.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: pesho
Date Posted: November 21, 2016 at 5:48 PM
OK Thank you!!!
Posted By: kreg357
Date Posted: November 21, 2016 at 9:08 PM
Not sure what remote start system you have. You mentioned the APS57A, which is very old & similar to the APS57C but not like the
the current APS57E model. Anyway, here is a link to the install guide for the APS57A :
https://www.voxxelectronics.com/docs/common/APS57A/APS57A_IM.pdf
It does not have the needed low current (-) Starter Output you need. The newer model ( APS57E ) does and Howards'
relay info is correct if you have the newer model.

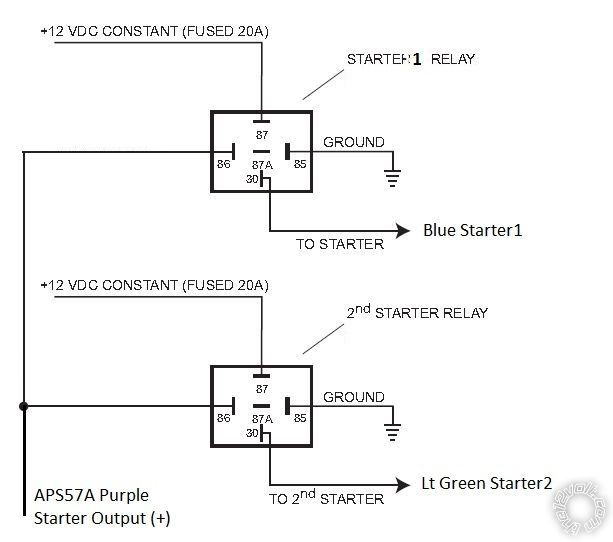

If you have the APS57A ( or APS57C ) you can create the needed Starter2 output using two 30/40 Amp SPDT relays like this :
You didn't mention a bypass module for the Camry's transponder system. The key will probably have a G stamped at the top of the blade.
------------- Soldering is fun!
|
