Topic: Viper/DEI Terminal Type

Posted By: kramttocs
Subject: Viper/DEI Terminal Type
Date Posted: January 20, 2020 at 9:42 PM

Hi,
I'd like to connect a 211HV directly to a 535T without a splice for the relevant wires. Anyone know what the terminals are in the connectors? I don't have the 535T yet so if they are different than the 211HV that would be good to know also.
Thanks

Replies:

Posted By: Ween
Date Posted: January 20, 2020 at 10:05 PM

Molex Mini Fit Jr. for the housing and terminals on the 211HV

Posted By: kramttocs
Date Posted: January 20, 2020 at 10:07 PM

Thanks! That was my guess looking at waytek but hated to order in bulk and be wrong :D

Posted By: Ween
Date Posted: January 20, 2020 at 10:19 PM

Try Mouser or Digi-Key. May want to see about a terminal removal tool, if there's a minimum order requirement.
and look here : https://www.jst-mfg.com/product/productguide_e.php?category_id=1 for 535T connectors and terminals.
Digi-Key has some JST product.

Posted By: kramttocs
Date Posted: January 20, 2020 at 10:27 PM

So they are different? Which style is more popular? Figure I'll use metripacks for all other connections so just need enough to bridge the two modules. Haven't done enough research yet to know how many that is.

Posted By: Ween
Date Posted: January 20, 2020 at 10:42 PM

I know the 211HV has the 18 pin minifit jr, because i ordered a few recently. Was surfing for good pics of the 535T, I know they are not the same.

Posted By: kramttocs
Date Posted: January 20, 2020 at 10:53 PM

Works for me. Matching one is all I need. Much appreciated!

Posted By: geepherder
Date Posted: January 21, 2020 at 5:57 AM

That's good to know. I've used pins for JST connectors on DEI products also (on the smaller connectors like valet switch, etc.).

-------------
My ex once told me I have a perfect face for radio.

Posted By: kramttocs
Date Posted: January 22, 2020 at 5:52 PM

I was looking at the 211HV connector last night and it looks like the power and common wires are 14awg. I am not finding mini fit jr terminals beyond the 18-24 offering. Is there enough tab material on those terminals to work for 14awg?

Posted By: Ween
Date Posted: January 22, 2020 at 7:04 PM

45750-3112 female terminal for 16 gauge wire, 13A max

Posted By: kramttocs
Date Posted: January 22, 2020 at 7:57 PM

Didn't realize the molex terminals and connectors could interchange. Plus terminal with mini-fit housing. Thanks

Posted By: kramttocs
Date Posted: May 20, 2020 at 11:44 PM

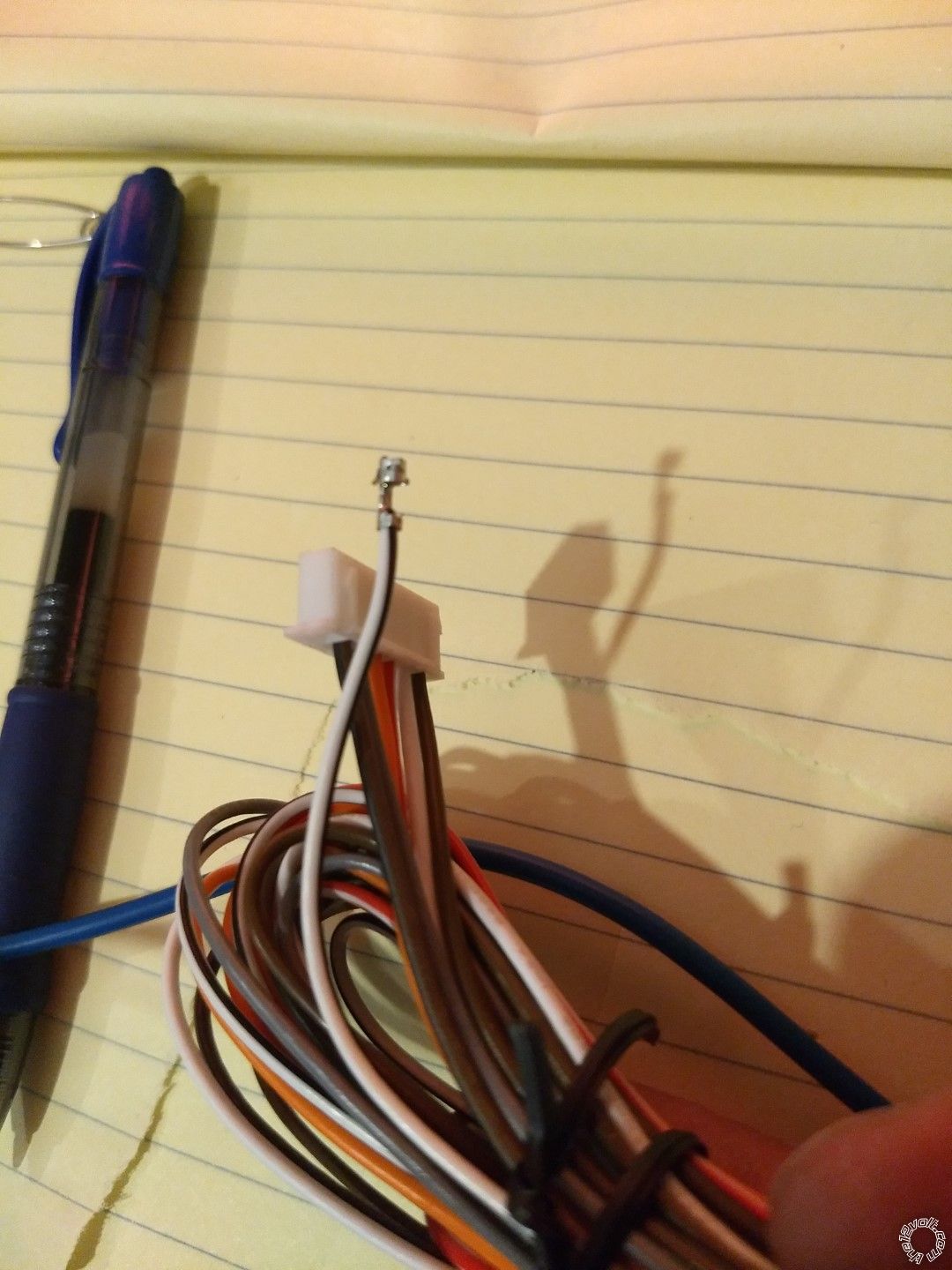

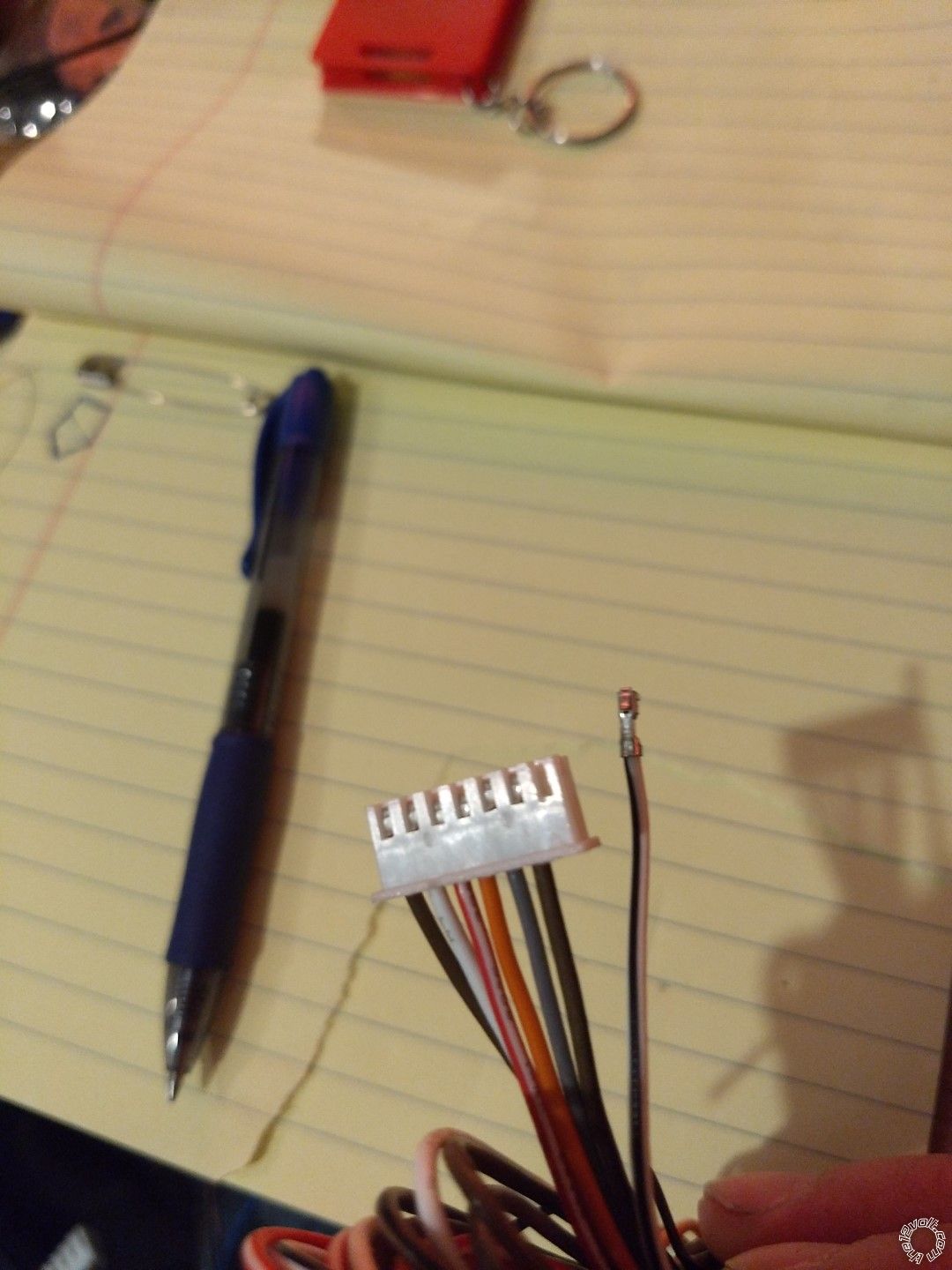

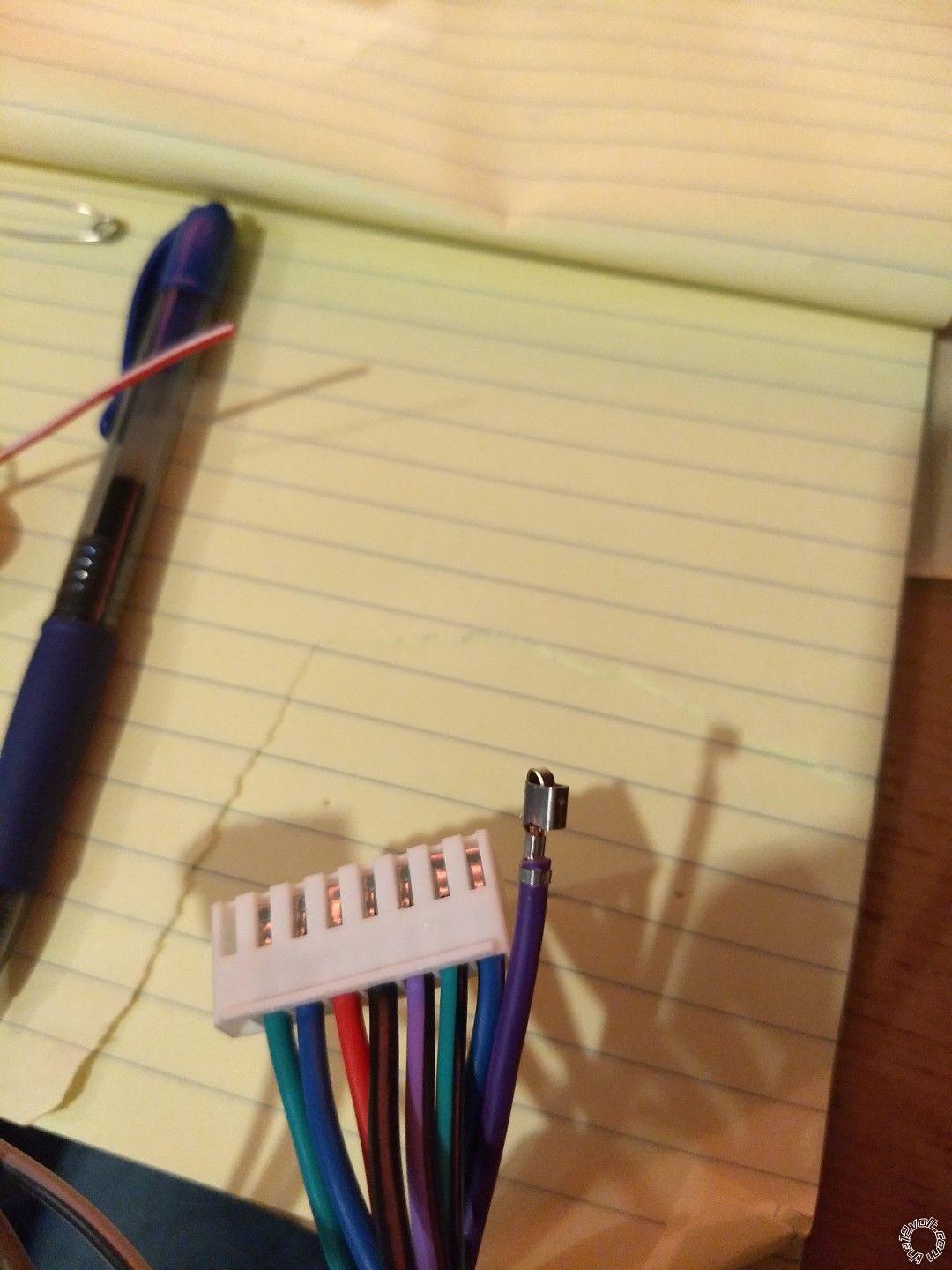

Finally installing these modules. Struggling with the 535T connectors. Been looking at photos (google and the jst site) but can't seem to find what I need to order.
Looks like there are just two. Same style but different sizes.
The small one is on a 22awg wire and the large one looks to be 14awg. Pictures aren't the greatest but I couldn't get my phone to focus any closer. Can find another camera if needed.

posted_image

Photos don't seem to work so I've uploaded them to drive:


Posted By: geepherder
Date Posted: May 21, 2020 at 2:15 PM

I can't see your pics, but found some decent one's on sonicelectronix:

The larger terminals look like they are SVH-41T-P1.1

I can't tell for sure (wrong angle), but the smaller ones may be SXH-001T-P0.6

-------------
My ex once told me I have a perfect face for radio.

Posted By: kramttocs
Date Posted: May 21, 2020 at 2:58 PM

Thanks a lot! Really. I was having no luck at all. Just ordered some of both and will report back with confirmation when I get them.
