DS4 Upgrade Woes

So I needed a replacement remote for my what started life as a 4816v

I've been using a 7856v and 7857v for a while now with no problems, but they've been ravaged by puddles and time

I won a D9857x kit on eBay real cheap, thought I was getting a good deal and they'd pair right up

It came with the new 6867T antenna, and 7656x/7857x

So I go to pair them all up, both two way Vipers take as before, and the one way 7656x pairs and works just fine

But the two way 7857x refuses to pair

I've charged it, tried multiple ways multiple times, I know I'm doing it right because the other 3 go through fine

I erased them all, tried again, no dice

I'm wondering if my original 6826t antenna can't handle the new two way Clifford?

The box makes mention of XDR/DS4, something this install pre dates

I tried swapping in the included XDR antenna, but it's connector has less pins (see the picture)

Do I need a different cable, or a different antenna?

Or is this just never gonna work?

DEIs site says the new control center is supposed to be backwards compatible

Any advice, it'd be appreciated

Thanks,

Mike

it should work, does the 7857v go into pair mode? ie, hold f until it beeps, then remote start, and then lock?

The XDR 2-way remote requires the XDR antenna to be used. Use the (black)4-pin antenna to (green) 6-pin brain cable that should have come with your XDR antenna plug or the 5" Adapter cable (6-pin to 4-pin connectors) to adapt to the XDR antenna depending on what came with your kit. If you didn't get the cable then you'll have to get one. The pink and grey outside wires are the led and valet direct to brain wires the remaining 4 wires are(green send) (red) power , (black) ground and (blue) receive data wires. The led and valet should still work on the new antenna with the 4816v brain. Before switching antenna's delete all remotes, or zap with bit-writer if you have one. Then pull power from brain and swap antenna to XDR. Start by pairing the new 1-way XDR remote first then the 2-way XDR remote once successful, program remaining old remotes. If XDR 2-way remote still won't pair then the data id range for the new remote is outside the programmed data id range the old brain is programmed for. But you won't know until you try with the new Antenna control center.

lurch228 wrote:

---

The XDR 2-way remote requires the XDR antenna to be used. Use the (black)4-pin antenna to (green) 6-pin brain cable that should have come with your XDR antenna plug or the 5" Adapter cable (6-pin to 4-pin connectors) to adapt to the XDR antenna depending on what came with your kit. If you didn't get the cable then you'll have to get one.

---

That's the problem then

My kit didn't come with the antenna cable and or adapter

Is there a separate part number, or does anyone have one they'd be willing to sell me?

That explains the killer deal you got! A 4- pin to 4-pin cable might work if you can find one . You would need to center the 4-pin plug in the main 6-pin on the brain leaving 1 unused pin on both sides. This should work as long as the valet and status led are controlled through data on the antenna receiver. Otherwise if you want to try modding the existing cable just find any antenna wire that has the 4-pin connector for the antenna side and de-pin the 6 and and replace with the 4-pin connector and insulate the gray and pink wires.
Ebay link for Antenna and cable with needed black 4 pin connector

the 4 pin antenna cable is just your regular run of the mill d2d wire. (if you have an old dball bypass, you can hack it up the d2d cable, and extend it. it's just power, ground, tx, rx)

I just ordered that
So if I center it on the connector for the brain, the other end just plugs into my XDR antenna?
Anyone have experience with range on these, any improvement?

I wonder if this adapter would work, and where could I find one?

no that won't work.. those adaptors are for the XL202. the XDR control is completely different.. my advice is buy a new antenna cable 4 pin, or hack up a old d2d cable.

A d2d cable won't work as the XDR antenna he bought has has a 4 pin version of the 6 pin that comes with his original antenna. The XDR antenna has the black 4 pin that is used with other antennas though they only have 3 wires between the brain and antenna but the plug is still 4 pin! His brain has the green 6 pin plug so no go with d2d cable!

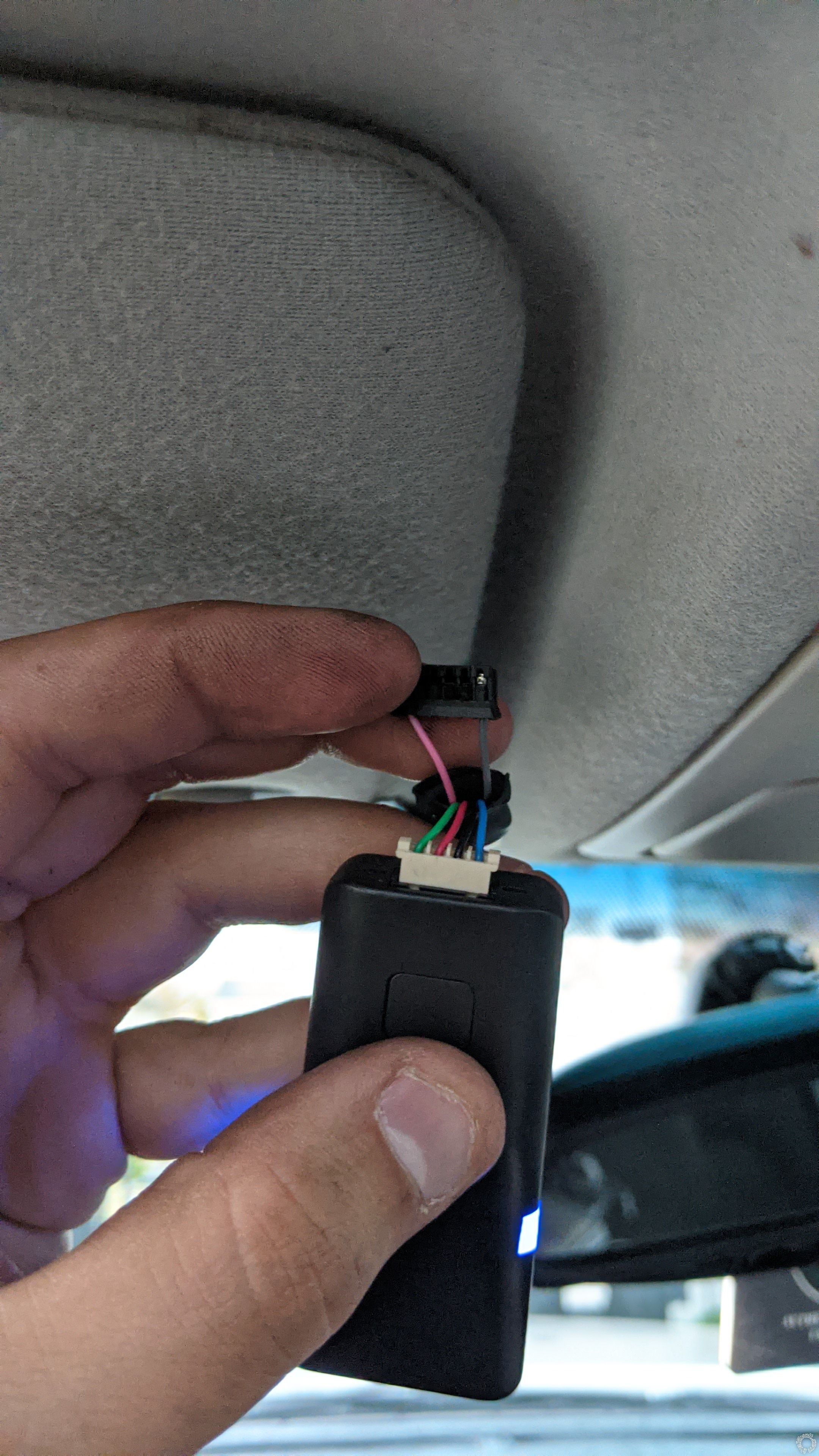

So far I've managed this, the LEDs flicker but the button doesn't respond

Did I pin it wrong?

I'm starting to wonder if this is a fruitless endeavor

Anyone have a source for the correct 4 pin XDR antenna cable?

Is there any known upgraded antennas for my 4X06 brain other than the 6826T I have now?

Or should I just leave well enough alone and sell on this remote that won't work?

Looks like you got the wires inverted. I believe it needs to be green red black blue looking at valet button   top of antenna with plug facing towards you.

I think you described how I have it in the picture?
I tried it by pinning it the other way around, same problem
By the second time I completely obliterated the terminals, so I had to order two new 6826T antennas and cables just to be able to start and open my car again :(
Does anyone have any solid info on whether XDR antennas are supported on non DS4/DS4+ platforms?
How would the valet button work with the two other wires not connected?
I found this on a eBay listing for a DS4 antenna
"This antenna is not compatible with any other Viper systems except DS4!"
...think that might explain the problem

xdr antenna only work with DSX systems, (ds3 and ds4, as they are d2d antennas) all others are analog antennas

You're in uncharted water and trial and error is the only way to find out if crossing things over will work or not. I have had my trials that didn't work too! There is no definitive answer that DEI will tell you, even if it would work they will tell you it won't as upgrading doesn't sell units. I tried using the newer 1 button remote7616v with the 6826T antenna on a Responder One system as the original remote 7211v, and antenna is the 6212T and the antenna can't be had for under $40 usually. Figured I had nothing to lose as I already had the 6826T antenna. and the new version 1-button was really cheap at the time. It's possible that it won't work with systems that have a 6 pin antenna but might work with a system that has a 4 wire antenna with valet and status led on the said 4 wire system control center(antenna) or I may not until someone gives it a try were all just guessing!
