Viper 5806V Alarm/Remote Start

Hi Have a Viper 5806v and it is its first power up. I have power to the unit (6pin 12VDC+), ground continuity confirmed, fuse is good.
I was attempting to pair the remote for the first time, however following the guide I get zero from th control centres- literally no lights/ nadda nothing at all - what can I check methodology. when the system is powered for the firs time i should be getting something?

All remotes shipped with the unit are already programmed to it. Only non supplied (add on) remotes need to be paired with the 5806v.

understand - but when i power the 5806V on i should get something right? (led beep, something?)

No

-------------
My ex once told me I have a perfect face for radio.

then how can you tell its online - should i get led feedback from the control center?

Hit a button on the remote and see if it works.

-------------
My ex once told me I have a perfect face for radio.

This may sound lame- but what am I looking for?

Lock or unlock output and/or parking light output.

Also, if the 5806 is a two-way unit, you should get confirmation on your remote.

-------------
My ex once told me I have a perfect face for radio.

ill give this a try tomorrow an see what happens

on pressing arm (lock icon) it takes about 3-4 seconds then the orange led flashes 5 times and a tone - not a beep

That's an error tone. The system is not communicating with the remote.

-------------
My ex once told me I have a perfect face for radio.

UPDATE: 5806v is on the bench, not sure if a need a new one (hardware failure) investing into another one or new installation which hellishly expensive as this unit is pretty much unused. However if a new unit is needed then I want to make sure I have made the decision based upon a solid test method.

Just need to understand if I my method for checking if this is working (at any level) is solid. so then i can make an informed judgement call.

Test environment: (tested continuity for the connected = all good)
5806v - 6 pin harness connected to ground and power (12VDC)
Control console connected
Remote new batteries (2x 2016) - leds working

1. connect power ground (nothing noticeable) - press lock on remote: get 5 orange flashes and a tone (error - not connecting)
2. control centre - no cigar either (no led activity)

Do I need to connect anything else jus to test the unit ? should i connect the siren and LED as the parkers (or is this effort not going to provide additional insight)

is there something I should be checking at the board level, resetting or is the above indicative of an issue worthy of replacement?

Do you have the ignition wire connected? What about a door trigger? These are both required to program remotes.

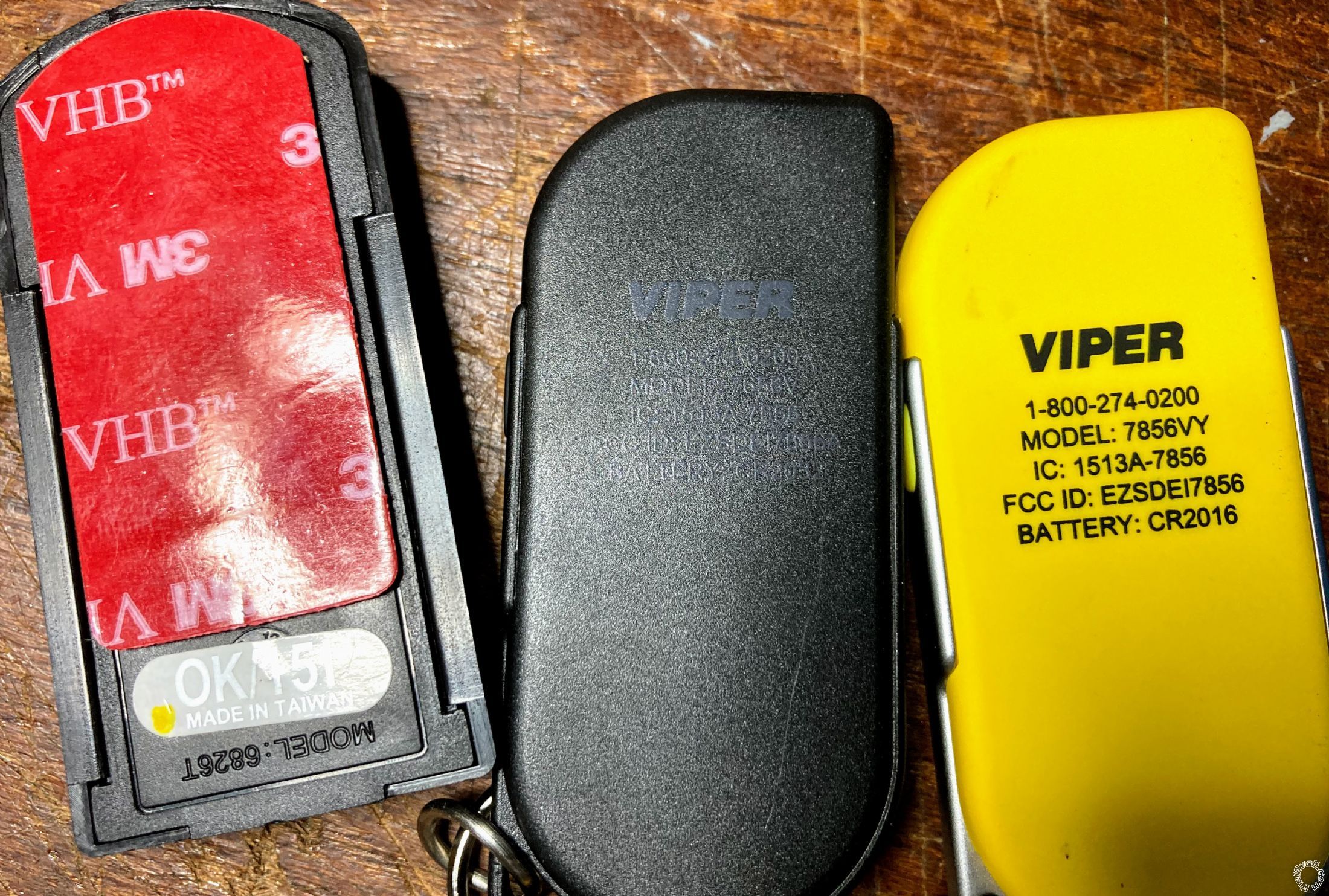

Have you tried both remotes? Verify the FCC ID numbers match on the back of the remotes as well as the antenna.
To test the parking light output, I've used a simple test light before. If you get no response from either remote, check continuity through the antenna lead as these wires are tiny (maybe 24 gauge) and break easily.

You can also buy a cheap RF tester to make sure the remotes have output.

-------------
My ex once told me I have a perfect face for radio.

Hi

This issue as i see it is there is zero feedback from the unit at all - so the next step of pairing maybe fruitless

no ignition wire (or simulation) on the test bench

Door trigger is to ground - when open ( so i can set this up)
check continuity through the antenna lead (all ok - my first step)

To simulate ignition, connect 12 volts to the ignition wire. If you still can't get the remotes to program, it's more likely the antenna than both remotes. You can look online for a replacement, otherwise, maybe the main unit is faulty.

-------------
My ex once told me I have a perfect face for radio.

tried about everything - no - go

i suspect its a dead unit......- order a new one :-(

Hi Forum,

working my way along the viper journey - not I have it responding moving to the next items, to this end its the started kill for the 5806V unit which has me lost....

So far I have wired the green (from crank IGN switch output) to the Pin 6 of the Remote Start, White 10-pin heavy gauge connector (no other connection) and pin 7 Violet of the Remote Start, White 10-pin heavy gauge connector to the starter relay.

Starter relay is a 4 pin with const earth - power etc....

When disarmed- - cranks and starts, and the same for Armed - My understanding is the on-board relay should isolate when armed - what am i doing wrong here?

Equally - to setup the anti grind feature - I need a 5 pin relay - how is the wiring for this differ?

The starter kill relay is built into the unit- no need for an external relay.

If you cut your vehicle's factory starter wire at the ignition harness, the green wire will connect to the side that comes from the ignition switch. The purple wire will connect to the side that goes to the starter.

If I remember correctly, the anti-grind feature is also built in, so you should not have to do anything extra.

-------------
My ex once told me I have a perfect face for radio.

SOLVED - its because I didn't have the any other wires connected - in particular the pink IGN in/out wire which appears to energise on-board relays which would make sense.

Hi Forum,

Working my through my viper install. On to remote start which is currently showing an error. I am looking to eliminate what this could be - for manual trans what is the min i need connected (PS doors, bonnet and trunk are NO to ground when closed) - so I assume this can be simply left disconnected to simulate everything closed. I monitor the D2D logger and i get a lot of commands (some with unknown errors) on arm and disarm but very few for remote start- normal? (also new batteries and fully charged remotes)

summary below actions (log extracts from D2D from XK3 loader included for reference)

Viper Alarm

Viper Alarm 5806v

Software version FW19

Part Number: ICAZNSM29B

FEW ATTEMPTS

Status:System Armed - setting manual trans

RF control LED blinking normally..

systems and notifications Unremarkable

1 -Remote start command from Remote 7756V

2- Remote 7756V show Remote start Error on LCD and error tone

3- 7 flashes from Parker lights

NEXT ATTEMPT

Status:System Armed - setting Automatic

RF control LED blinking normally..

systems and notifications Unremarkable

1 -Remote start command from Remote 7756V

2- Remote 7756V show Remote start Error on LCD and error tone

3- 8 flashes from Parker lights

Notes:

Recently completed hooking up the 10pin heavy gauge -

green from IGN crank

voilet to starter relay

pink to 'T' IGN live

red to Const fused 12VDC

Red/Black (same as red)

also noted RF control LED give a 2 pulse, pause, 3 pulse cycle sometimes

Logs:

[12-26-2020 - 02:05:52:00005] - -----------------------------------------------------------------

[12-26-2020 - 02:05:52:00005] - d2d_log.txt

[12-26-2020 - 02:05:52:00005] - Created at 12-26-2020 - 02:05:52:00005

[12-26-2020 - 02:05:52:00005] - -----------------------------------------------------------------

[12-26-2020 - 02:05:52:00005] - unknown function 73

[12-26-2020 - 02:05:52:00005] - function dome off from remote starter

[12-26-2020 - 02:05:52:00005] - return 2 bytes digit 1 to 2

[12-26-2020 - 02:05:52:00005] - function car finder

[12-26-2020 - 02:05:52:00005] - function panic on from remote 2

[12-26-2020 - 02:05:52:00005] - function panic off from remote 1

[12-26-2020 - 02:05:52:00005] - gwr off

[12-26-2020 - 02:05:52:00005] - unused

[12-26-2020 - 02:05:52:00005] - unknown function 27

[12-26-2020 - 02:05:52:00005] - reserved for encryption

[12-26-2020 - 02:05:52:00005] - unknown function 3

[12-26-2020 - 02:05:52:00005] - unknown function 127

[12-26-2020 - 02:05:52:00005] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 02:05:52:00005] - unknown function 143

[12-26-2020 - 02:05:52:00005] - function car finder

[12-26-2020 - 02:05:53:00005] - request vin digit 12 to 14

[12-26-2020 - 02:05:53:00005] - reserved for encryption

[12-26-2020 - 02:05:53:00005] - request battery voltage 0 to 15.94

[12-26-2020 - 02:05:53:00005] - unknown function 127

[12-26-2020 - 02:05:53:00005] - function ground when running on

[12-26-2020 - 02:05:53:00005] - function ground when running on

[12-26-2020 - 02:05:53:00005] - function lock on from remote 3

[12-26-2020 - 02:06:06:00006] - unknown function 71

[12-26-2020 - 02:06:06:00006] - function parking off from remote starter

[12-26-2020 - 02:06:06:00006] - return 2 bytes digit 1 to 2

[12-26-2020 - 02:06:06:00006] - function panic on from remote 2

[12-26-2020 - 02:06:06:00006] - function chirp from remote 1

[12-26-2020 - 02:06:06:00006] - function panic off from remote 1

[12-26-2020 - 02:06:06:00006] - unknown function 0

[12-26-2020 - 02:06:06:00006] - unused

[12-26-2020 - 02:06:06:00006] - request vin digit 12 to 14

[12-26-2020 - 02:06:06:00006] - reserved for encryption

[12-26-2020 - 02:06:06:00006] - unknown function 3

[12-26-2020 - 02:06:06:00006] - unknown function 127

[12-26-2020 - 02:06:06:00006] - unknown function 137

[12-26-2020 - 02:06:06:00006] - function ground when running on

[12-26-2020 - 02:06:06:00006] - function panic on from remote 3

[12-26-2020 - 02:06:06:00006] - unknown function 27

[12-26-2020 - 02:06:06:00006] - reserved for encryption

[12-26-2020 - 02:06:06:00006] - unknown function 3

[12-26-2020 - 02:06:06:00006] - send ignition off to remote starter

[12-26-2020 - 02:06:06:00006] - function arm only

[12-26-2020 - 02:06:06:00006] - function ground when running on

[12-26-2020 - 02:06:06:00006] - function car finder

[12-26-2020 - 02:06:32:00006] - unknown function 71

[12-26-2020 - 02:06:32:00006] - function dome off from remote starter

[12-26-2020 - 02:06:32:00006] - unknown function 41

[12-26-2020 - 02:06:32:00006] - function panic on from remote 3

[12-26-2020 - 02:06:32:00006] - function panic on from remote 2

[12-26-2020 - 02:06:32:00006] - unknown function 24

[12-26-2020 - 02:06:32:00006] - unknown function 0

[12-26-2020 - 02:06:32:00006] - unused

[12-26-2020 - 02:06:32:00006] - request vin digit 12 to 14

[12-26-2020 - 02:06:32:00006] - reserved for encryption

[12-26-2020 - 02:06:32:00006] - unknown function 3

[12-26-2020 - 02:06:32:00006] - unknown function 127

[12-26-2020 - 02:06:32:00006] - function ground when running on

[12-26-2020 - 02:06:32:00006] - function ground when running on

[12-26-2020 - 02:06:32:00006] - function panic on from remote 3

[12-26-2020 - 02:06:32:00006] - unknown function 27

[12-26-2020 - 02:06:32:00006] - reserved for encryption

[12-26-2020 - 02:06:32:00006] - unknown function 3

[12-26-2020 - 02:06:32:00006] - send ignition off to remote starter

[12-26-2020 - 02:06:32:00006] - function arm only

[12-26-2020 - 02:06:32:00006] - function ground when running on

[12-26-2020 - 02:06:32:00006] - function car finder

[12-26-2020 - 02:06:40:00006] - function unlock driver on from remote 2

[12-26-2020 - 02:06:40:00006] - function panic on from remote 3

[12-26-2020 - 02:06:40:00006] - unknown function 2

[12-26-2020 - 02:06:40:00006] - function panic on from remote 3

[12-26-2020 - 02:06:40:00006] - function unlock driver on from remote 2

[12-26-2020 - 02:06:40:00006] - function panic on from remote 3

[12-26-2020 - 02:06:42:00006] - unknown function 2

[12-26-2020 - 02:06:42:00006] - function car finder

[12-26-2020 - 02:06:48:00006] - unknown function 71

[12-26-2020 - 02:06:48:00006] - function parking off from remote starter

[12-26-2020 - 02:06:48:00006] - return 2 bytes digit 1 to 2

[12-26-2020 - 02:06:48:00006] - function panic on from remote 2

[12-26-2020 - 02:06:48:00006] - function chirp from remote 1

[12-26-2020 - 02:06:48:00006] - function panic off from remote 1

[12-26-2020 - 02:06:48:00006] - unknown function 0

[12-26-2020 - 02:06:48:00006] - unused

[12-26-2020 - 02:06:48:00006] - request vin digit 12 to 14

[12-26-2020 - 02:06:48:00006] - reserved for encryption

[12-26-2020 - 02:06:48:00006] - request vehicle speed

[12-26-2020 - 02:06:48:00006] - unknown function 127

[12-26-2020 - 02:06:48:00006] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 02:06:48:00006] - unknown function 142

[12-26-2020 - 02:06:48:00006] - function panic on from remote 3

[12-26-2020 - 02:06:48:00006] - request vin digit 12 to 14

[12-26-2020 - 02:06:48:00006] - reserved for encryption

[12-26-2020 - 02:06:48:00006] - unknown function 3

[12-26-2020 - 02:06:48:00006] - unknown function 127

[12-26-2020 - 02:06:48:00006] - unknown function 137

[12-26-2020 - 02:06:48:00006] - function ground when running on

[12-26-2020 - 02:06:48:00006] - function lock on from remote 3

[12-26-2020 - 02:06:56:00006] - unknown function 71

[12-26-2020 - 02:06:56:00006] - unknown function 73

[12-26-2020 - 02:06:56:00006] - unknown function 41

[12-26-2020 - 02:06:56:00006] - function panic on from remote 3

[12-26-2020 - 02:06:56:00006] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 02:06:56:00006] - unknown function 24

[12-26-2020 - 02:06:56:00006] - unknown function 0

[12-26-2020 - 02:06:56:00006] - unused

[12-26-2020 - 02:06:56:00006] - request engine coolant temperature

[12-26-2020 - 02:06:56:00006] - reserved for encryption

[12-26-2020 - 02:06:56:00006] - unknown function 3

[12-26-2020 - 02:06:56:00006] - reserved for encryption

[12-26-2020 - 02:06:56:00006] - function ground when running on

[12-26-2020 - 02:06:56:00006] - function ground when running on

[12-26-2020 - 02:06:56:00006] - function panic on from remote 3

[12-26-2020 - 02:06:56:00006] - unknown function 27

[12-26-2020 - 02:06:56:00006] - reserved for encryption

[12-26-2020 - 02:06:56:00006] - unknown function 3

[12-26-2020 - 02:06:56:00006] - send ignition off to remote starter

[12-26-2020 - 02:06:56:00006] - function arm only

[12-26-2020 - 02:06:56:00006] - function ground when running on

[12-26-2020 - 02:06:56:00006] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-26-2020 - 02:08:03:00008] - XKLoader3 disconnected

[12-26-2020 - 02:09:49:00009] - unknown function 71

[12-26-2020 - 02:09:49:00009] - function dome off from remote starter

[12-26-2020 - 02:09:49:00009] - unknown function 41

[12-26-2020 - 02:09:49:00009] - function panic on from remote 3

[12-26-2020 - 02:09:49:00009] - function panic on from remote 1

[12-26-2020 - 02:09:49:00009] - unknown function 24

[12-26-2020 - 02:09:49:00009] - unknown function 0

[12-26-2020 - 02:09:49:00009] - unused

[12-26-2020 - 02:09:49:00009] - request vin digit 12 to 14

[12-26-2020 - 02:09:49:00009] - reserved for encryption

[12-26-2020 - 02:09:49:00009] - unknown function 3

[12-26-2020 - 02:09:49:00009] - reserved for encryption

[12-26-2020 - 02:09:49:00009] - function ground when running on

[12-26-2020 - 02:09:49:00009] - function ground when running on

[12-26-2020 - 02:09:49:00009] - function panic on from remote 2

[12-26-2020 - 02:09:49:00009] - function stop from remote

[12-26-2020 - 02:09:49:00009] - reserved for encryption

[12-26-2020 - 02:09:49:00009] - unknown function 3

[12-26-2020 - 02:09:49:00009] - unknown function 127

[12-26-2020 - 02:09:49:00009] - function arm only

[12-26-2020 - 02:09:49:00009] - reserved

[12-26-2020 - 02:09:49:00009] - function alarm triggered from remote starter (mostly for smart start signaling)

---
[12-26-2020 - 03:19:55:00019] - -----------------------------------------------------------------

[12-26-2020 - 03:19:55:00019] - d2d_log.txt

[12-26-2020 - 03:19:55:00019] - Created at 12-26-2020 - 03:19:55:00019

[12-26-2020 - 03:19:55:00019] - -----------------------------------------------------------------

[12-26-2020 - 03:19:55:00019] - XKLoader3 disconnected

[12-26-2020 - 03:23:24:00023] - XKLoader3 disconnected

[12-26-2020 - 03:28:26:00028] - request millage (km)

[12-26-2020 - 03:28:26:00028] - function panic on from remote 3

[12-26-2020 - 03:28:49:00028] - XKLoader3 disconnected

[12-26-2020 - 03:32:08:00032] - function unlock driver on from remote 2

[12-26-2020 - 03:32:08:00032] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-26-2020 - 03:32:11:00032] - request millage (km)

[12-26-2020 - 03:32:11:00032] - function panic on from remote 3

[12-26-2020 - 03:36:10:00036] - function unlock driver on from remote 2

[12-26-2020 - 03:36:10:00036] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-26-2020 - 03:37:33:00037] - unknown function 71

[12-26-2020 - 03:37:33:00037] - function parking off from remote starter

[12-26-2020 - 03:37:33:00037] - return 2 bytes digit 1 to 2

[12-26-2020 - 03:37:33:00037] - function lock on from remote 3

[12-26-2020 - 03:37:33:00037] - unknown function 171

[12-26-2020 - 03:37:33:00037] - unknown function 24

[12-26-2020 - 03:37:33:00037] - unknown function 0

[12-26-2020 - 03:37:33:00037] - send ignition on to remote starter

[12-26-2020 - 03:37:33:00037] - unknown function 27

[12-26-2020 - 03:37:33:00037] - reserved for encryption

[12-26-2020 - 03:37:33:00037] - unknown function 3

[12-26-2020 - 03:37:33:00037] - send ignition off to remote starter

[12-26-2020 - 03:37:33:00037] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:37:33:00037] - function ground when running on

[12-26-2020 - 03:37:33:00037] - function car finder

[12-26-2020 - 03:37:33:00037] - unknown function 29

[12-26-2020 - 03:37:33:00037] - reserved for encryption

[12-26-2020 - 03:37:33:00037] - request rpm (tach)

[12-26-2020 - 03:37:33:00037] - unknown function 127

[12-26-2020 - 03:37:33:00037] - function arm only

[12-26-2020 - 03:37:33:00037] - unknown function 143

[12-26-2020 - 03:37:33:00037] - function lock on from remote 3

[12-26-2020 - 03:37:35:00037] - request millage (km)

[12-26-2020 - 03:37:35:00037] - function panic on from remote 3

[12-26-2020 - 03:37:38:00037] - unknown function 71

[12-26-2020 - 03:37:38:00037] - function dome off from remote starter

[12-26-2020 - 03:37:38:00037] - unknown function 41

[12-26-2020 - 03:37:38:00037] - function panic on from remote 3

[12-26-2020 - 03:37:38:00037] - function panic on from remote 1

[12-26-2020 - 03:37:38:00037] - unknown function 24

[12-26-2020 - 03:37:38:00037] - unknown function 0

[12-26-2020 - 03:37:38:00037] - unused

[12-26-2020 - 03:37:38:00037] - unknown function 29

[12-26-2020 - 03:37:38:00037] - reserved for encryption

[12-26-2020 - 03:37:38:00037] - request rpm (tach)

[12-26-2020 - 03:37:38:00037] - unknown function 127

[12-26-2020 - 03:37:38:00037] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:37:38:00037] - unknown function 143

[12-26-2020 - 03:37:38:00037] - function car finder

[12-26-2020 - 03:37:38:00037] - request vin digit 12 to 14

[12-26-2020 - 03:37:38:00037] - unknown function 205

[12-26-2020 - 03:37:38:00037] - request battery voltage 0 to 15.94

[12-26-2020 - 03:37:38:00037] - unknown function 127

[12-26-2020 - 03:37:38:00037] - function ground when running on

[12-26-2020 - 03:37:38:00037] - function ground when running on

[12-26-2020 - 03:37:38:00037] - function lock on from remote 3

[12-26-2020 - 03:37:46:00037] - unknown function 71

[12-26-2020 - 03:37:46:00037] - unknown function 73

[12-26-2020 - 03:37:46:00037] - return 2 bytes digit 1 to 2

[12-26-2020 - 03:37:46:00037] - function lock on from remote 3

[12-26-2020 - 03:37:46:00037] - unknown function 171

[12-26-2020 - 03:37:46:00037] - function panic off from remote 1

[12-26-2020 - 03:37:46:00037] - unknown function 0

[12-26-2020 - 03:37:46:00037] - send ignition on to remote starter

[12-26-2020 - 03:37:46:00037] - return 3 bytes digit 12 to 14

[12-26-2020 - 03:37:46:00037] - reserved for encryption

[12-26-2020 - 03:37:46:00037] - unknown function 3

[12-26-2020 - 03:37:46:00037] - reserved for encryption

[12-26-2020 - 03:37:46:00037] - function ground when running on

[12-26-2020 - 03:37:46:00037] - function ground when running on

[12-26-2020 - 03:37:46:00037] - function panic on from remote 2

[12-26-2020 - 03:37:46:00037] - unknown function 29

[12-26-2020 - 03:37:46:00037] - reserved for encryption

[12-26-2020 - 03:37:46:00037] - return 3 bytes digit 6 to 8

[12-26-2020 - 03:37:46:00037] - unknown function 127

[12-26-2020 - 03:37:46:00037] - function arm only

[12-26-2020 - 03:37:46:00037] - reserved

[12-26-2020 - 03:37:46:00037] - function alarm triggered from remote starter (mostly for smart start signaling)

---
[12-26-2020 - 03:38:34:00038] - -----------------------------------------------------------------

[12-26-2020 - 03:38:34:00038] - d2d_log.txt

[12-26-2020 - 03:38:34:00038] - Created at 12-26-2020 - 03:38:34:00038

[12-26-2020 - 03:38:34:00038] - -----------------------------------------------------------------

[12-26-2020 - 03:38:34:00038] - unknown function 71

[12-26-2020 - 03:38:34:00038] - reserved for encryption

[12-26-2020 - 03:38:34:00038] - unknown function 41

[12-26-2020 - 03:38:34:00038] - function panic on from remote 3

[12-26-2020 - 03:38:34:00038] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:38:34:00038] - unknown function 24

[12-26-2020 - 03:38:34:00038] - unknown function 0

[12-26-2020 - 03:38:34:00038] - unused

[12-26-2020 - 03:38:34:00038] - unknown function 27

[12-26-2020 - 03:38:34:00038] - reserved for encryption

[12-26-2020 - 03:38:34:00038] - unknown function 3

[12-26-2020 - 03:38:34:00038] - send ignition off to remote starter

[12-26-2020 - 03:38:34:00038] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:38:34:00038] - function ground when running on

[12-26-2020 - 03:38:34:00038] - function car finder

[12-26-2020 - 03:38:34:00038] - request vin digit 12 to 14

[12-26-2020 - 03:38:34:00038] - reserved for encryption

[12-26-2020 - 03:38:34:00038] - request rpm (tach)

[12-26-2020 - 03:38:34:00038] - unknown function 127

[12-26-2020 - 03:38:34:00038] - function arm only

[12-26-2020 - 03:38:34:00038] - unknown function 143

[12-26-2020 - 03:38:34:00038] - function lock on from remote 3

[12-26-2020 - 03:39:10:00039] - handbrake is disengaged

[12-26-2020 - 03:39:10:00039] - function dome off from remote starter

[12-26-2020 - 03:39:10:00039] - unknown function 171

[12-26-2020 - 03:39:10:00039] - function panic off from remote 2

[12-26-2020 - 03:39:10:00039] - gwr off

[12-26-2020 - 03:39:10:00039] - unused

[12-26-2020 - 03:39:10:00039] - request vin digit 12 to 14

[12-26-2020 - 03:39:10:00039] - reserved for encryption

[12-26-2020 - 03:39:10:00039] - request rpm (tach)

[12-26-2020 - 03:39:10:00039] - unknown function 127

[12-26-2020 - 03:39:10:00039] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:39:10:00039] - unknown function 143

[12-26-2020 - 03:39:10:00039] - function car finder

[12-26-2020 - 03:39:10:00039] - request vin digit 12 to 14

[12-26-2020 - 03:39:10:00039] - reserved for encryption

[12-26-2020 - 03:39:10:00039] - request battery voltage 0 to 15.94

[12-26-2020 - 03:39:10:00039] - unknown function 127

[12-26-2020 - 03:39:10:00039] - function ground when running on

[12-26-2020 - 03:39:10:00039] - function ground when running on

[12-26-2020 - 03:39:10:00039] - function lock on from remote 3

[12-26-2020 - 03:39:18:00039] - unknown function 71

[12-26-2020 - 03:39:18:00039] - function dome off from remote starter

[12-26-2020 - 03:39:18:00039] - unknown function 155

[12-26-2020 - 03:39:18:00039] - gwr off

[12-26-2020 - 03:39:18:00039] - unused

[12-26-2020 - 03:39:18:00039] - function stop from remote

[12-26-2020 - 03:39:18:00039] - reserved for encryption

[12-26-2020 - 03:39:18:00039] - unknown function 3

[12-26-2020 - 03:39:18:00039] - unknown function 127

[12-26-2020 - 03:39:18:00039] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:39:18:00039] - function ground when running on

[12-26-2020 - 03:39:18:00039] - function car finder

[12-26-2020 - 03:39:18:00039] - request vin digit 12 to 14

[12-26-2020 - 03:39:18:00039] - reserved for encryption

[12-26-2020 - 03:39:18:00039] - request intake air temperature(outside temp)

[12-26-2020 - 03:39:18:00039] - unknown function 127

[12-26-2020 - 03:39:18:00039] - function arm only

[12-26-2020 - 03:39:18:00039] - unknown function 140

[12-26-2020 - 03:39:18:00039] - function lock on from remote 3

[12-26-2020 - 03:39:39:00039] - unknown function 71

[12-26-2020 - 03:39:39:00039] - function dome off from remote starter

[12-26-2020 - 03:39:39:00039] - unknown function 41

[12-26-2020 - 03:39:39:00039] - function panic on from remote 3

[12-26-2020 - 03:39:39:00039] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:39:39:00039] - unknown function 24

[12-26-2020 - 03:39:39:00039] - unknown function 0

[12-26-2020 - 03:39:39:00039] - unused

[12-26-2020 - 03:39:39:00039] - return 3 bytes digit 12 to 14

[12-26-2020 - 03:39:39:00039] - reserved for encryption

[12-26-2020 - 03:39:39:00039] - unknown function 3

[12-26-2020 - 03:39:39:00039] - send ignition off to remote starter

[12-26-2020 - 03:39:39:00039] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:39:39:00039] - function ground when running on

[12-26-2020 - 03:39:39:00039] - function car finder

[12-26-2020 - 03:39:39:00039] - request vin digit 12 to 14

[12-26-2020 - 03:39:39:00039] - reserved for encryption

[12-26-2020 - 03:39:39:00039] - request vehicle speed

[12-26-2020 - 03:39:39:00039] - unknown function 127

[12-26-2020 - 03:39:40:00039] - function arm only

[12-26-2020 - 03:39:40:00039] - unknown function 142

[12-26-2020 - 03:39:40:00039] - function lock on from remote 3

[12-26-2020 - 03:39:50:00039] - function dome on from remote starter

[12-26-2020 - 03:39:50:00039] - function chirp from remote 1

[12-26-2020 - 03:39:50:00039] - function panic off from remote 1

[12-26-2020 - 03:39:50:00039] - gwr off

[12-26-2020 - 03:39:50:00039] - unused

[12-26-2020 - 03:39:50:00039] - unknown function 27

[12-26-2020 - 03:39:50:00039] - reserved for encryption

[12-26-2020 - 03:39:50:00039] - unknown function 3

[12-26-2020 - 03:39:50:00039] - send ignition off to remote starter

[12-26-2020 - 03:39:50:00039] - Status support synchronization for Smartstart 3.0.1

[12-26-2020 - 03:39:50:00039] - function ground when running on

[12-26-2020 - 03:39:50:00039] - function car finder

[12-26-2020 - 03:39:50:00039] - unknown function 29

[12-26-2020 - 03:39:50:00039] - reserved for encryption

[12-26-2020 - 03:39:50:00039] - request rpm (tach)

[12-26-2020 - 03:39:50:00039] - unknown function 127

[12-26-2020 - 03:39:50:00039] - function arm only

[12-26-2020 - 03:39:50:00039] - unknown function 143

[12-26-2020 - 03:39:51:00039] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-26-2020 - 03:39:51:00039] - unknown function 75

[12-26-2020 - 03:39:51:00039] - function dome off from remote starter

[12-26-2020 - 03:39:51:00039] - return 2 bytes digit 1 to 2

[12-26-2020 - 03:39:51:00039] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-26-2020 - 03:39:51:00039] - function panic on from remote 2

[12-26-2020 - 03:39:51:00039] - unknown function 0

[12-26-2020 - 03:39:51:00039] - gwr off

[12-26-2020 - 03:39:51:00039] - unused

[12-26-2020 - 03:39:51:00039] - request engine coolant temperature

[12-26-2020 - 03:39:51:00039] - reserved for encryption

[12-26-2020 - 03:39:52:00039] - unknown function 3

[12-26-2020 - 03:39:52:00039] - reserved for encryption

[12-26-2020 - 03:39:52:00039] - function ground when running on

[12-26-2020 - 03:39:52:00039] - function ground when running on

[12-26-2020 - 03:39:52:00039] - function panic on from remote 2

[12-26-2020 - 03:39:52:00039] - function stop from remote

[12-26-2020 - 03:39:52:00039] - reserved for encryption

[12-26-2020 - 03:39:52:00039] - unknown function 3

[12-26-2020 - 03:39:52:00039] - unknown function 127

[12-26-2020 - 03:39:52:00039] - function arm only

[12-26-2020 - 03:39:52:00039] - function ground when running on

[12-26-2020 - 03:39:52:00039] - function alarm triggered from remote starter (mostly for smart start signaling)

Do you have the Viper connected to a car? What Brand / Make / Model / Year vehicle.

An install on a Manual Transmission vehicle is more involved. There are several things that must be done.

!. You must run the Viper with Engine Checking = Tach and do a successful Tach Learn.
2. You must connect the Door, Hood and Trunk trigger wires.
3. You must bypass the clutch interlock circuit.
4. You must successfully enter Reservation Mode.

It is not safe to run the Viper R/S in Auto Trans Mode. If the vehicle is left in gear and remote started it will start moving... Reservation Mode prevents this but requires Door Pin connections to work.

If your vehicle has door pins that show Chassis Ground when closed and open when the door is open you have NC door triggers. The easy way to handle this is via an Omega AU-NCT module. The other way is using Directed TechTip 1097. Here is that link : https://www.the12volt.com/installbay/file.asp?ID=1139 You can find the Omega AU-NCT module on EBay for $35.

-------------
Soldering is fun!

Door pins show open when doors closed - so these are NO correct?

Just to clarify

Yes, Normally Open. This type will show a chassis ground when the door is open. You can use all four door trigger wires with 1N4001 diode isolation as the Viper (-) Door Trigger Input. No need for the AU-NCT module.

-------------
Soldering is fun!

how does one You must bypass the clutch interlock circuit....? no sure how this hooks up

ech Tip #10000

apologies found it in the downloads - appreciated

Ok the clutch bypass seems straight forward - what I don't understand is its purpose, what is the need to send a (-). Is this similar to the brake cut off in some way?

the (-) connects to what on the 5806v exactly - I don't see reference to clutch (-) input?

NOTE: My vehicle has not switch or connection to the clutch (only the brake) its hardly drive by wire vehicle for sure

The purpose is to be able to simulate a press of the clutch so you can remote start.

If you are not using the negative starter output, you can use it.

-------------
My ex once told me I have a perfect face for radio.

OK things are moving along - removed all my connections and double checked - found issue with WTS (diesel) and foot brake (+), for the short term i have put wait to start as timed and set to 3 seconds (90-110F average temp here and starts fine without so all ok) the foot brake was not sending (+) so fixed this issue.....
completed Techo learning procedure (key start within 5 seconds press RF control - solid LED indicator, shutdown car...)

Completed MTS procedure ...... all worked as expected.....MAGIC!

Armed car ----- Engine shutdown as expected...... a little more magic

remote start from fob -- starts then shuts down....Viper RS tries a few times same result, then an error is sent back to FOB

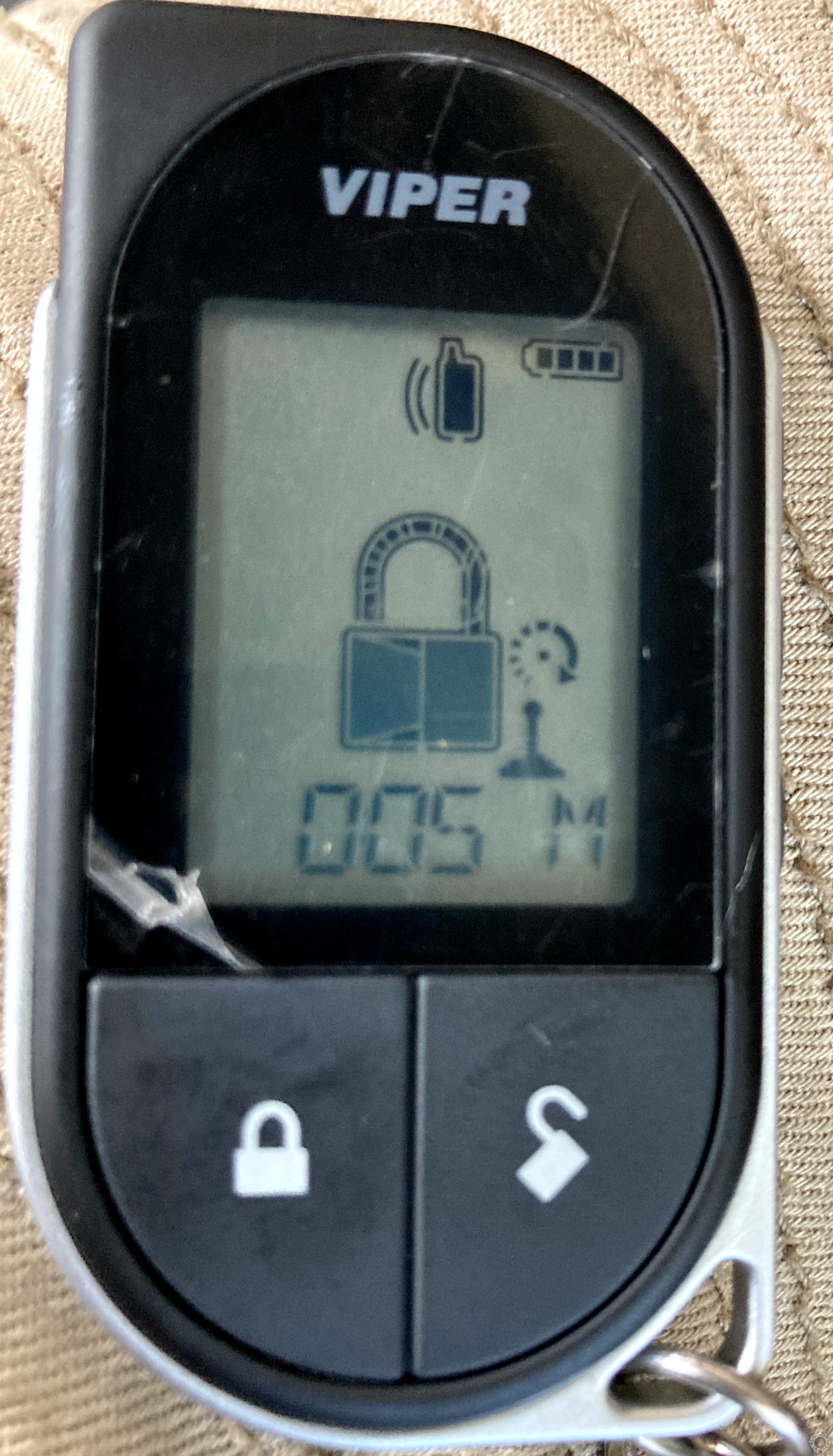

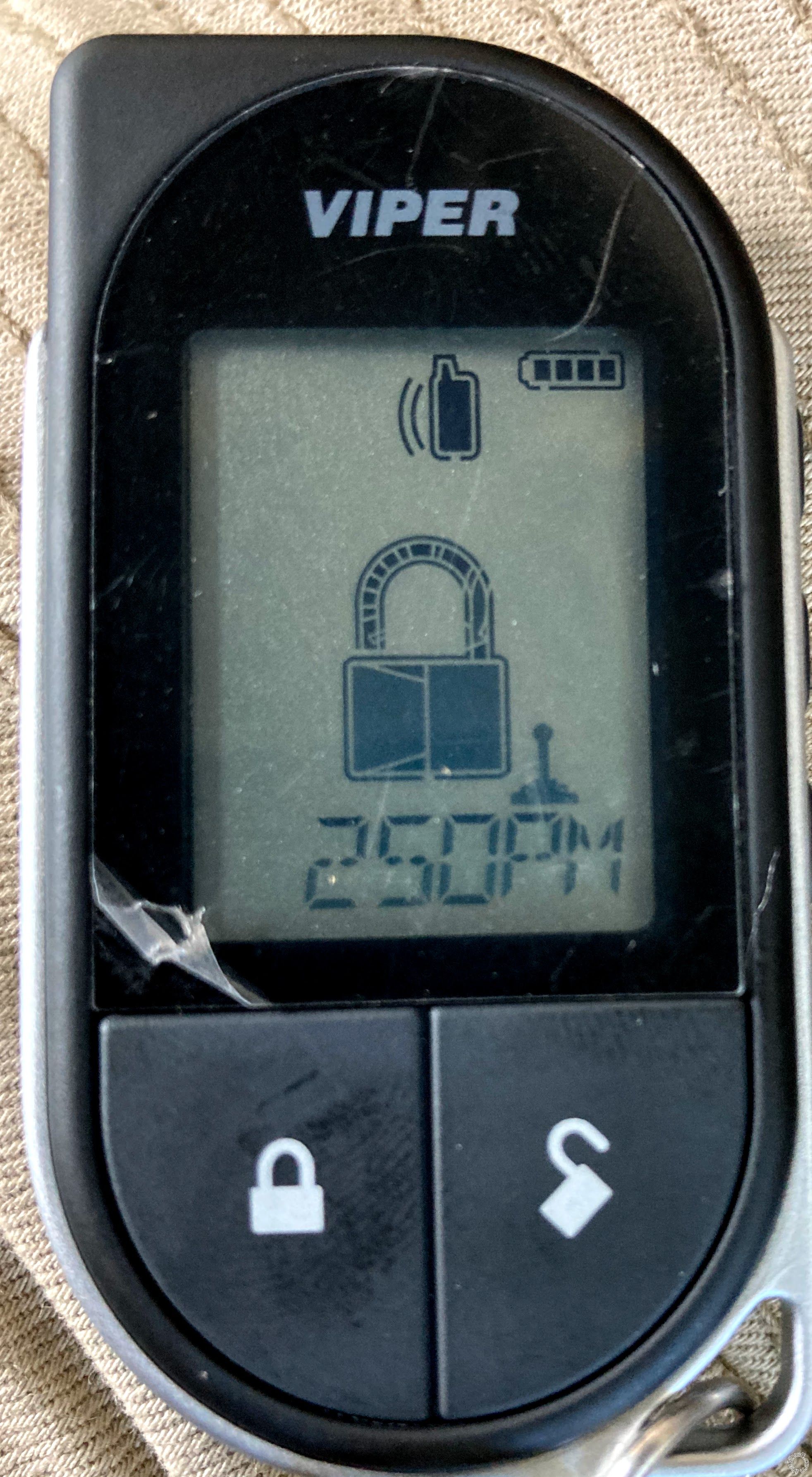

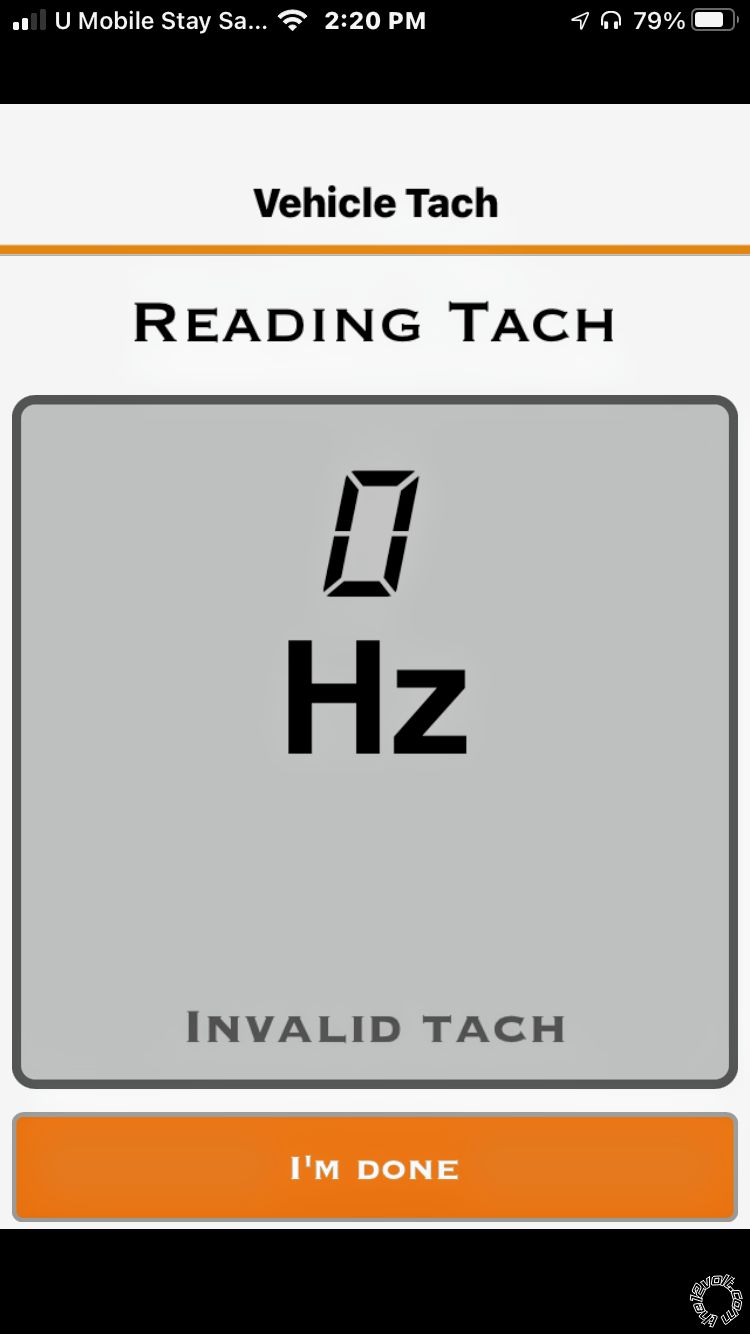

I have been trying to use the Directechs XK3 PRG-100 function but I get lots of communication errors - I assume this is due to not having a direct tech account (et. limitation)?

My assumption is there is an issue with Tachometer learning? - but I unsure of how to approach - set to virtual tach?, relearn and if so how do i determine if ist different?

Here are some extra info that may help shed some light

I Run a Dakota Digital DSL1E which reads RPM ('W' wire) from the alternator and outputs (standard tach output = tachometer signal to drive a standard ignition system tachometer)

Dakaota Digital DSL1E details

D2D logs below:

MTS Ready D2D log

2 of 5,820
D2D Log MTS competed

[12-27-2020 - 02:44:25:00044] - -----------------------------------------------------------------

[12-27-2020 - 02:44:25:00044] - d2d_log.txt

[12-27-2020 - 02:44:25:00044] - Created at 12-27-2020 - 02:44:25:00044

[12-27-2020 - 02:44:25:00044] - -----------------------------------------------------------------

[12-27-2020 - 02:44:25:00044] - unknown function 71

[12-27-2020 - 02:44:25:00044] - function dome off from remote starter

[12-27-2020 - 02:44:25:00044] - unknown function 41

[12-27-2020 - 02:44:25:00044] - function lock on from remote 3

[12-27-2020 - 02:44:25:00044] - function panic on from remote 2

[12-27-2020 - 02:44:25:00044] - unknown function 24

[12-27-2020 - 02:44:25:00044] - gwr off

[12-27-2020 - 02:44:25:00044] - unused

[12-27-2020 - 02:44:25:00044] - request vin digit 12 to 14

[12-27-2020 - 02:44:25:00044] - reserved for encryption

[12-27-2020 - 02:44:25:00044] - unknown function 3

[12-27-2020 - 02:44:25:00044] - unknown function 127

[12-27-2020 - 02:44:25:00044] - function ground when running on

[12-27-2020 - 02:44:25:00044] - function ground when running on

[12-27-2020 - 02:44:25:00044] - function panic on from remote 3

[12-27-2020 - 02:44:25:00044] - unknown function 27

[12-27-2020 - 02:44:25:00044] - reserved for encryption

[12-27-2020 - 02:44:25:00044] - unknown function 3

[12-27-2020 - 02:44:25:00044] - send ignition off to remote starter

[12-27-2020 - 02:44:25:00044] - function arm only

[12-27-2020 - 02:44:25:00044] - function ground when running on

[12-27-2020 - 02:44:25:00044] - function car finder

[12-27-2020 - 02:44:33:00044] - function unlock all on from remote 2

[12-27-2020 - 02:44:33:00044] - function panic on from remote 3

[12-27-2020 - 02:44:57:00044] - function dome on from remote starter

[12-27-2020 - 02:44:57:00044] - unknown function 24

[12-27-2020 - 02:44:57:00044] - request millage (km)

[12-27-2020 - 02:44:57:00044] - unused

[12-27-2020 - 02:44:57:00044] - unknown function 2

[12-27-2020 - 02:44:57:00044] - function car finder

[12-27-2020 - 02:44:57:00044] - request engine coolant temperature

[12-27-2020 - 02:44:57:00044] - reserved for encryption

[12-27-2020 - 02:44:57:00044] - unknown function 3

[12-27-2020 - 02:44:57:00044] - unknown function 127

[12-27-2020 - 02:44:57:00044] - function ground when running on

[12-27-2020 - 02:44:57:00044] - function ground when running on

[12-27-2020 - 02:44:57:00044] - function panic on from remote 2

[12-27-2020 - 02:44:57:00044] - function stop from remote

[12-27-2020 - 02:44:57:00044] - reserved for encryption

[12-27-2020 - 02:44:57:00044] - unknown function 3

[12-27-2020 - 02:44:57:00044] - send ignition off to remote starter

[12-27-2020 - 02:44:57:00044] - function arm only

[12-27-2020 - 02:44:57:00044] - function ground when running on

[12-27-2020 - 02:44:57:00044] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-27-2020 - 02:45:02:00045] - function unlock all on from remote 2

[12-27-2020 - 02:45:02:00045] - function panic on from remote 3

[12-27-2020 - 02:45:05:00045] - unknown function 2

[12-27-2020 - 02:45:05:00045] - function alarm triggered from remote starter (mostly for smart start signaling)

[12-27-2020 - 02:45:09:00045] - unknown function 71

[12-27-2020 - 02:45:09:00045] - function parking off from remote starter

[12-27-2020 - 02:45:09:00045] - return 2 bytes digit 1 to 2

[12-27-2020 - 02:45:09:00045] - function panic on from remote 2

[12-27-2020 - 02:45:09:00045] - function parking on from remote starter

[12-27-2020 - 02:45:09:00045] - function panic off from remote 1

[12-27-2020 - 02:45:09:00045] - unknown function 0

[12-27-2020 - 02:45:09:00045] - unused

[12-27-2020 - 02:45:09:00045] - request vin digit 12 to 14

[12-27-2020 - 02:45:09:00045] - reserved for encryption

[12-27-2020 - 02:45:09:00045] - unknown function 3

[12-27-2020 - 02:45:09:00045] - unknown function 127

[12-27-2020 - 02:45:09:00045] - function ground when running on

[12-27-2020 - 02:45:09:00045] - function ground when running on

[12-27-2020 - 02:45:09:00045] - function panic on from remote 3

[12-27-2020 - 02:45:09:00045] - unknown function 27

[12-27-2020 - 02:45:09:00045] - reserved for encryption

[12-27-2020 - 02:45:09:00045] - unknown function 3

[12-27-2020 - 02:45:09:00045] - send ignition off to remote starter

[12-27-2020 - 02:45:09:00045] - function arm only

[12-27-2020 - 02:45:09:00045] - function ground when running on

[12-27-2020 - 02:45:09:00045] - function car finder

d2d_log.txt
Displaying d2d_log.txt.

Remote start D2D Log

[12-27-2020 - 02:46:02:00046] - -----------------------------------------------------------------

[12-27-2020 - 02:46:02:00046] - d2d_log.txt

[12-27-2020 - 02:46:02:00046] - Created at 12-27-2020 - 02:46:02:00046

[12-27-2020 - 02:46:02:00046] - -----------------------------------------------------------------

[12-27-2020 - 02:46:02:00046] - function parking on from remote starter

[12-27-2020 - 02:46:02:00046] - function panic off from remote 1

[12-27-2020 - 02:46:02:00046] - unknown function 0

[12-27-2020 - 02:46:02:00046] - unused

[12-27-2020 - 02:46:02:00046] - request vin digit 12 to 14

[12-27-2020 - 02:46:02:00046] - reserved for encryption

[12-27-2020 - 02:46:02:00046] - request intake air temperature(outside temp)

[12-27-2020 - 02:46:02:00046] - unknown function 127

[12-27-2020 - 02:46:02:00046] - Status support synchronization for Smartstart 3.0.1

[12-27-2020 - 02:46:02:00046] - unknown function 140

[12-27-2020 - 02:46:02:00046] - function panic on from remote 3

[12-27-2020 - 02:46:02:00046] - request vin digit 12 to 14

[12-27-2020 - 02:46:02:00046] - reserved for encryption

[12-27-2020 - 02:46:02:00046] - unknown function 3

[12-27-2020 - 02:46:02:00046] - reserved for encryption

[12-27-2020 - 02:46:02:00046] - unknown function 137

[12-27-2020 - 02:46:02:00046] - function ground when running on

[12-27-2020 - 02:46:02:00046] - function lock on from remote 2

[12-27-2020 - 02:46:26:00046] - unknown function 202

[12-27-2020 - 02:46:26:00046] - function panic off from remote 1

[12-27-2020 - 02:46:26:00046] - unknown function 0

[12-27-2020 - 02:46:26:00046] - send ignition on to remote starter

[12-27-2020 - 02:46:26:00046] - request vin digit 12 to 14

[12-27-2020 - 02:46:26:00046] - unknown function 205

[12-27-2020 - 02:46:26:00046] - request battery voltage 0 to 15.94

[12-27-2020 - 02:46:26:00046] - unknown function 127

[12-27-2020 - 02:46:26:00046] - function panic on from remote 2

[12-27-2020 - 02:46:26:00046] - function ground when running on

[12-27-2020 - 02:46:26:00046] - function panic on from remote 3

[12-27-2020 - 02:46:26:00046] - request engine coolant temperature

[12-27-2020 - 02:46:26:00046] - reserved for encryption

[12-27-2020 - 02:46:26:00046] - unknown function 3

[12-27-2020 - 02:46:26:00046] - reserved for encryption

[12-27-2020 - 02:46:26:00046] - unknown function 137

[12-27-2020 - 02:46:26:00046] - function ground when running on

[12-27-2020 - 02:46:26:00046] - function lock on from remote 2

d2d_log.txt
Displaying d2d_log.txt.

My understanding with DEI R/S units, is that in Manual Transmission Mode they must run in Tach Mode. The Vipers Tach Input wire must be connected to an acceptable Tach signal source and successful Tach Learn must be completed. Finding a Tach source on a Diesel can be a challenge.

Two things to try.

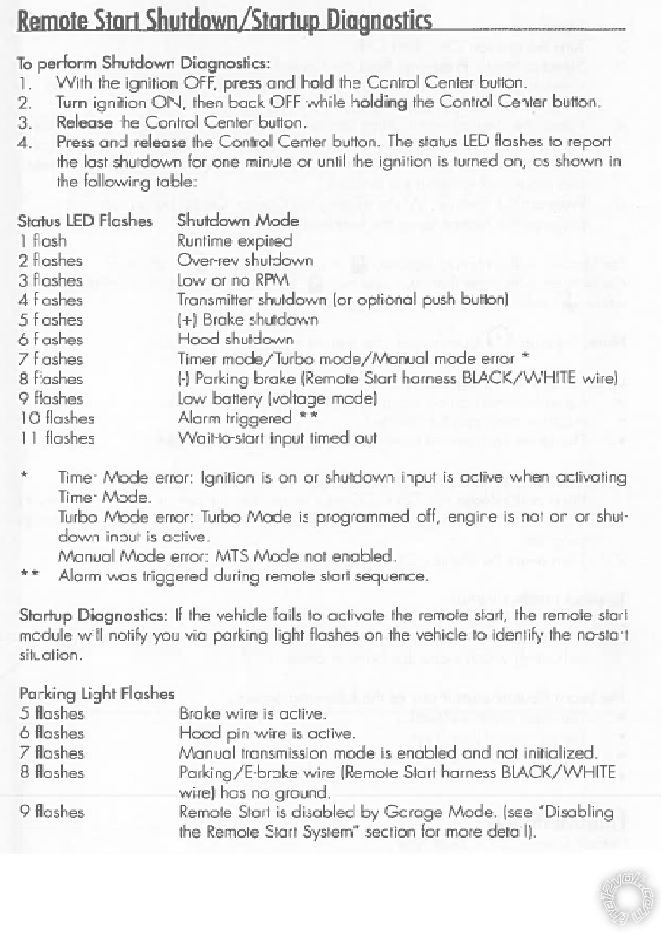

1. The Viper has something called Shutdown Diagnostics. It will tell you the reason for the 3 R/S attempts and why it gave up.
2. Directed makes a module called a Tach Generator. It's a 454T. You can use that module to supply the Vipers needed Tach Input signal.

-------------
Soldering is fun!

Hi and thanks- the Viper Shutdown Diagnostics you refer to - how to access- XK loader 3 - of so what modules?

I haven't upgraded to the XKLoader3 yet. I still use the BitWriter. Here is the Shutdown Diagnostics routine :



-------------
Soldering is fun!

Did a diagnostic - an yes it indicates low or no RPM - suspected as such

more investigation needed

Few things based on investigation thus far... I am getting 3 led flashes from control = No or Low RPM, I can confirm the instrument panel is showing RPM correctly.

So may take there are a few things which are worthy of a deeper dive:

1. Learning routine - VIPER: If this is not working or not detecting then this would result similar issues- whilst I have run the process and al seems ok - is there a way of confirming this ti be the case - either by Bitwriter, RF control or XKloader?
2. Cranking delay - DSL1E tacho electronics: on cranking the instrument panel divert power for crank - I am wondering if this delay (pause) in reporting RPM is potentially the source of the issue and if so can i program a delay into Viper to compensate?

any thoughts or guides are welcome

Setting the Viper to a 15 second delay ( Menu 3, Item 9 to Option 2 ) won't hurt the vehicle. That will eliminate that possible issue.

In Tach Mode the Viper will output a (+)Starter signal until the engine RPM's reach a certain level based on the Tach Learn and then turn off the Starter output. After a bit the Viper will check the Tach signal to see if it is OK. If too low it will shutdown everything, wait a second or so and try again with added time to the Starter output. After three unsuccessful attempts, it gives up.

You can try doing the Tach Learn Process with the engine under load ( slowest possible RPM ) and see if that helps. You could go the other way and add RPM's via the accelerator pedal and get a Tach Learn at a higher RPM and see if that helps. Last resort, find another Tach source that is better or use the Directed 454T module. Diesels are tough without Spark plugs or electric F.I.'s. Cam Timing sensors can be used if available.

-------------
Soldering is fun!

Try a different output on the Dakota DSL-1 for the viper pur/wht tach wire. Don't piggy-back onto the same output you are using for the dashboard tach. The Viper should be able to learn any of the DSL-1 outputs. I'd try the OUT 3 "half speed" output.

If the Viper pur/wht is connected to the "W" terminal on the alternator, this will not work. The Viper can not recognize a sine-wave signal, which is what the W output is. Use one of the outputs on the DSL-1.

RESOLVED I changed the power from accessory 12VDC (+) to IGN 12VDC (+) to the Dakota Digital DSL1E. Now RS it works just fine. It was the automated power down from the DSL1E for cranking which created the no-low RPM error.

thanks for al your support
