1998 Toyota Sienna, Crimestopper 2011

Hey guys....
I'll eventually be installing a Crimestopper 2011 alarm and remote starter into a friend's '98 Sienna. I haven't started yet...I'm just in the researching phase. I wanted to ask a few questions before I got started. Any hints would be great.

1. It already has an alarm (the remote says "Code Alarm"). She said it's an alarm (and not just KE) because she's heard the siren sound before. My question is: is this an aftermarket unit that I can probably just pull out, or is this the factory alarm? I doubt it's the factory because I think I've heard of Code Alarm before.

2. I've been reading the wiring diagrams on this site, as well as on Bulldog's site, and they mention the child locks. I'm a bit confused by this, and I've also never done something with these locks before. I would just like ALL of the doors to lock and unlock with one push of the button. Do I have to get around the child locks?

3. Are there any domelight issues I should know about? Such as the alarm tripping when you arm the car because the domelight is still lit?

4. I guess there's no "transponder" key for this car...but there's no other surprises that I need to know, right?

THANKS!

-------------
Q: What's the best nation in the world?
A: Donation!     Donate to the12volt.com

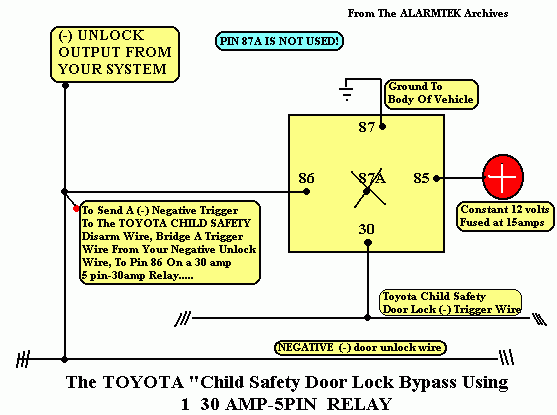

Here's how to get around the Child Safety Locks:
