Topic: 96 toyota camry remote start
Posted By: erinh
Subject: 96 toyota camry remote start
Date Posted: January 09, 2004 at 1:27 AM
having trouble installing remote start on a toyota camry 96. i need a wire that is only on in run position, a "heater" blower wire. the site lists it as accessory and BLACK / YELLOW - but that is an ignition wire, any ideas?
Replies:
Posted By: daniel2002p
Date Posted: January 09, 2004 at 8:45 AM
A ign is only on in the run position and as soon as that wire along with all the other ignitions and accesories (if applicable) is powerred up, it should work.
-------------
2005 Toyota Corolla S
1.8L VVT-i I-4
Always double check your wires with a DMM!!!
Do Not Use A Test Light!!!
MECP Certified Installer!
Best Buy 665 - IN IT TO WIN IT! TEAM MOBLE!
Posted By: erinh
Date Posted: January 09, 2004 at 9:33 AM
the BLACK / YELLOW is only on in run position, any ideas which wire may be the heater?
Posted By: jrilla
Date Posted: January 09, 2004 at 9:50 AM
BLACK / YELLOW is Accessory
BLACK/ Orange is Ignition
BLACK / YELLOW Should power the heater
-------------
J Rilla
Owner/Installer
Posted By: erinh
Date Posted: January 09, 2004 at 10:21 AM
sorry, its early - i meant to say BLACK / YELLOW is on in run and crank positions. BLACK/ orange is the same. so still not clear on which is the heater :( now i also have a new problem - there are 2 power wires that are always on going to the ignition, white and WHITE/ red, today i accidently touched the WHITE/ red to a ground and i saw a spark, and now that wire has no power. i guess a fuse blew somewhere, any ideas of where it may be located? the car still cranks by key, so i wonder why there are 2 power wires like that going to it, if its even needed or could i even just splice into the white one?
Posted By: erinh
Date Posted: January 09, 2004 at 6:45 PM
ugh, update - i tried to actually crank the car, and it does not crank now. it just soundslike it is trying. i guess it needs that other power wire - can i just splice in to the other or where could i find the fuse?
Posted By: daniel2002p
Date Posted: January 09, 2004 at 7:47 PM
I would not recommend that. Go into the fuse box under the hood and there should be 2 fuses labeled IGN one rated a 40amp and another one (but I do not know the amp rating). Just replace the one that is blown, it should crank up right away.
-------------
2005 Toyota Corolla S
1.8L VVT-i I-4
Always double check your wires with a DMM!!!
Do Not Use A Test Light!!!
MECP Certified Installer!
Best Buy 665 - IN IT TO WIN IT! TEAM MOBLE!
Posted By: erinh
Date Posted: January 09, 2004 at 8:00 PM
ah, i found it - it was a 30amp fuse by the way. the car cranks again :) well i'm at least back to the point of if i can't get this thing working this weekend i can just pull it out and go back to using my keys  i called bulldog and asked them what i should try, they said i should disconnect all the wires from the remote start unit except the power and ground and see if it cranks, and then add one wire at a time... guess i'll try that.
Posted By: erinh
Date Posted: January 10, 2004 at 4:00 AM
i disconnected everything tonight, and hooked up the remote start using the instructions on this site, i used: white for 12v constant power BLACK/ white for starter black orange for ignition BLACK / YELLOW for accessory GREEN / WHITE for brake green for parking ligthts grounded the ground wire to chassis still same as before :( when i plug in it will flash the parking lights when i hit start, but doesn't try to crank the car. any ideas? about to ready to give up on this.
Posted By: profuse007
Date Posted: January 10, 2004 at 10:15 AM
do you have some kind of starter inhibitor relay (starter kill)? if so, you may have putted the starter wire at the wrong side of the starter inhibitor relay (starter kill).
-------------
Houston,TX
"The two most common elements in the universe are H+ and stupidity" (Ellison).
Posted By: erinh
Date Posted: January 10, 2004 at 10:21 AM
do you mean like some kind of factory protection? i don't think so.
Posted By: profuse007
Date Posted: January 10, 2004 at 10:36 AM
did you installed a relay b/t the camry's starter wire (BLACK/ white)? you said that it didnt crank when you hit start. i assumed that you plug in the starter wire(rs unit) to the BLACK/ white, since the unit starts up.
the starter kill relay is w/ the rs unit, not factory, so did you installed one?
-------------
Houston,TX
"The two most common elements in the universe are H+ and stupidity" (Ellison).
Posted By: erinh
Date Posted: January 10, 2004 at 11:24 AM
the remote starter unit is a bulldog security rs 102 ( https://www.bulldogsecurity.com/pdf/RS102_112_122.pdf ). the unit has an 18 wire harness and a 4 relay harness, there is a wire coming from one of the relays that plugs into that BLACK/ white starter wire - and i did connect it to that. i'm guessing that relay is the starter kill relay? thanks for trying to help me, i was about to the giving up point.
Posted By: profuse007
Date Posted: January 10, 2004 at 12:00 PM
dont give up...let me take a look at the manual
-------------
Houston,TX
"The two most common elements in the universe are H+ and stupidity" (Ellison).
Posted By: profuse007
Date Posted: January 10, 2004 at 12:13 PM
it seems like you dont have a starter kill relay. i hvent install one of these bdog unit.
at the starter/crank wire of the unit, yellow/blk, test the wire while starting rs.
i am stump on the ignition input wire on the 18pin, cant figure what it is. theres not enough info for installer like other companies do provide.
-------------
Houston,TX
"The two most common elements in the universe are H+ and stupidity" (Ellison).
Posted By: erinh
Date Posted: January 10, 2004 at 12:14 PM

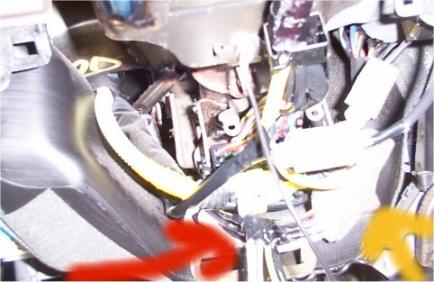

thanks for helping! this is the first time i've hooked something up like this, only done cd players before. i have one question: i hooked the wires from the rs to the ignition harness where the red arrow is pointing. there is a plugin where the yellow arrow is pointing, to the right runs to where the key goes in. the other side runs to under the hood, is it okay the i spliced in where i did?
Posted By: erinh
Date Posted: January 10, 2004 at 12:16 PM
oops, my picture didn't come out - my wires are spliced in on the side of the connector that runs under the hood. is that okay? i can go test what you want me to now - do you just want me to check how much voltage there is in different key positions or when i press the start button on the remote?
Posted By: erinh
Date Posted: January 10, 2004 at 12:21 PM
i'll wait for your post to see exactly what you want me to test. in the meantime, their tech support just called me back and he told me to try a test off their webpage: https://www.bulldogsecurity.com/pdf/relayharness.htm gonna run out there and try it real quick.
|
