Topic: 1989 Corvette, alarm/keyless entry

Posted By: harbrns
Subject: 1989 Corvette, alarm/keyless entry
Date Posted: June 16, 2006 at 11:03 AM

Does anyone know off hand what door lock setup the 1989 Corvette Conv. has? I am going to install an alarm on this car and would like to prewire my relays for the door lock system before getting started. Also does anyone have any tips for installing an alarm on this car? Basically is there anything out of the ordinary? Thank you to all in advance for your responses..

Harvey

Replies:

Posted By: extreme1
Date Posted: June 16, 2006 at 12:18 PM

positive trigger locks. car is a back breaker to work on for security.

-------------
Shaughn Murley
Install Manager, Dealer Services
Visions Electronics
Red Deer, Alberta

Posted By: harbrns
Date Posted: June 16, 2006 at 1:27 PM

Thanks alot for the quick response! Just so I can be sure what you mean by positive triggers, which diagram from the door lock wiring section should I follow the 5 wire positive, 3 wire positive etc? Sorry, Thanks again

Posted By: mo12v
Date Posted: June 16, 2006 at 1:59 PM

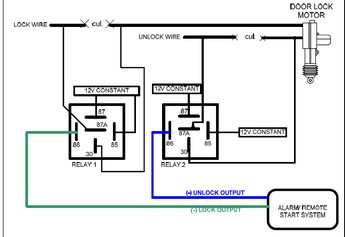

Been a while, but last time I did one, it was 5 Wire Reversal

Light Blue = Lock
Black = Unlock
Either Kick Panel..................Test from Passenger Door Switch

-------------
MO

Don't Learn from Others Mistakes
You Might Be the One That Knows.

Posted By: harbrns
Date Posted: June 16, 2006 at 2:18 PM

thanks

Posted By: harbrns
Date Posted: June 16, 2006 at 3:30 PM

sorry guys but I am a Newbee, I have installed a couple of alarms before but this is a totally diffrent animal. The first post I got said positive door trigger locks and the second said 5 wire reversal. Being a newbee I am looking at the diagrams and see a 5 Wire Alternating 12 Volts Positive Door Locks and a 5 wire reverse polarity/acuators. To me it sounds like the first reply was telling me to go with the 5 wire alternating positive door locks and the second was telling me to go with the 5 wire reverse polarity? Sorry if this is a stupid question and if I beat this subject into the ground. Thanks

Posted By: extreme1
Date Posted: June 16, 2006 at 11:01 PM

I suppose I'm wrong, it is infact 5 wire reversal mastered from the passenger switch.

-------------
Shaughn Murley
Install Manager, Dealer Services
Visions Electronics
Red Deer, Alberta

Posted By: spookiestylez
Date Posted: June 17, 2006 at 12:08 AM

12volts	red	+	ignition harness
Starter	yellow	+	ignition harness
Second Starter
Ignition	pink	+	ignition harness
Second Ignition
Third Ignition
Accessory	orange	+	ignition harness
Notes: For vehicles with digital dash, also energize brown accessory wire with additional relay.
Second Accessory
Keysense
Power Lock	lt.blue	5wi	either kick panel
Notes: Corvette door locks are mastered from the passenger switch.
Power Unlock	black	5wi	either kick panel
Notes: Corvette door locks are mastered from the passenger switch.
Lock Motor
Unlock Motor
Parking Lights+	brown	+	light switch
Parking Lights-
Hazards
Turn Signal(L)
Turn Signal(R)
Reverse Light
Door Trigger	white	-	under dash light
Dome Supervision
Trunk/Hatch Pin	black	-	at trunk pin switch
Hood Pin
Trunk/Hatch Release	black	+	deck release relay
Notes: Deck release relay is at the right rear corner of luggage compartment. Also BROWN / white wire in drivers kick panel (-).
Power Sliding Door
Factory Alarm Arm	arms with lock
Factory Alarm Disarm	lt. green	-	either kick panel
Disarm No Unlock
Tachometer	PURPLE / white or wht	ac	ignition module
Wait to start
Brake Wire	lt. blue	+	at brake switch
Parking Brake
Horn Trigger	black	-	steering column
Memory Seat 1
Memory Seat 2
Memory Seat 3

Interface Module:	Category: Immobilizer Bypass	Required: Yes	Type: VATS
Part #: 652T resistor pack
Alternate Part1 #: DesignTech 20402
Alternate Part2 #: DesignTech 29402
Notes: See DirectFax document 1049 for interface information.

-------------
RTFM

Posted By: harbrns
Date Posted: June 18, 2006 at 6:38 PM

When installing an aftermarket keyless entry alarm on a 1989 corvette equipped with Vats, do you have to disable the vats system? If you have to does anyone have a diagram of how to do this or can someone help by telling me what needs to be done?

Thanks Harvey

Posted By: mo12v
Date Posted: June 18, 2006 at 6:50 PM

If you are just Installing a KEYLESS Entry, you DO NOT have to disable the VATS.
You are just wanting to LOCK & UNLOCK??

Power Lock	LIGHT BLUE	DRIVER KICK PANEL, MUST TEST
Power Unlock	BLACK	FROM PASSENGER SWITCH

Reversal Rest At Ground Door Locks

-------------
MO

Don't Learn from Others Mistakes
You Might Be the One That Knows.

Posted By: harbrns
Date Posted: June 18, 2006 at 7:30 PM

I think I might be confused by calling it vats, I am refering to the factory alarm system that came in the 89 corvette which if you had the doors locked and reached through the window and unlocked the car from the inside avoiding putting the key in the door (like keyless would) then the horn would honk etc. I was just thinking that if I installed keyless then the factory alarm would go off, so I would have to do something to prevent this. Any help would be greatly appreciated.

Thanks Harvey

Posted By: mo12v
Date Posted: June 18, 2006 at 9:04 PM

OEM Alarm Disarm

LIGHT GREEN

(-) IN EITHER KICK PANEL

-------------
MO

Don't Learn from Others Mistakes
You Might Be the One That Knows.

Posted By: harbrns
Date Posted: June 18, 2006 at 9:16 PM

sorry I am a newbee to this kind of thing, saw that you use the lt green wire to disarm the factory alarm, However the alarm/keyless that I am looking at is the clifford arrow 5 and on the list of outputs that it has on the dei website it says that it does not have a factory disarm output? What would I do in this case? Thanks for all your help and advice. Harvey

Posted By: spookiestylez
Date Posted: June 18, 2006 at 10:55 PM

look for (-) output on disarm

-------------
RTFM

Posted By: dea,can
Date Posted: June 19, 2006 at 3:51 AM

-------------
dragon

Posted By: dea,can
Date Posted: June 19, 2006 at 4:07 AM

you can use the unlock wire also but you have to diode the circuits with 1amp

-------------
dragon

Posted By: harbrns
Date Posted: June 19, 2006 at 3:53 PM

So if I use the unlock wire (-) from the alarm and I place a 1 amp diode inline from the unlock wire to the factory alarm disarm then I should be ok? Do I need to put any other diodes in place? Sorry I am really new to the use of diodes, but this sounds like a great shortcut to get this done.

Posted By: dea,can
Date Posted: June 20, 2006 at 1:57 AM

u need 2, 1amp / to split one wire going to unlock wire and the other wire going to the disarm wire with the silver band facing the switches.

-------------
dragon

Posted By: harbrns
Date Posted: June 20, 2006 at 12:07 PM

thanks
