Topic: Prestige RS 2006 Chrysler 300C
Posted By: lsondubz
Subject: Prestige RS 2006 Chrysler 300C
Date Posted: November 24, 2006 at 1:47 PM
Had a friend that wants an autostart installed into a 06 300C, I always use Prestige Remote Start systems and I was looking up diagrams and the only thing I cant figure out is that the APS-57 doesnt have any - aux trigger outputs for 2nd start,2nd acc,etc, I am thinking I might have to get another brand of RS because how am I suppose to hook up the relays if I dont have a - 2ndstarter/2nd acc output to trigger them? I have read numerous posts about how much of a PITA these cars are so thats why I want to get everything straight.
Replies:
Posted By: mxxmikexx
Date Posted: November 26, 2006 at 5:50 PM
these cars are actually pretty easy once you get the hang of them. does the aps-57 have a four pin plug with BLACK/ blue, BLACK / YELLOW,etc..? if it does your all set, but either way you can still do it with the unit you have. you can always use the main starter ouput wire and diode isolate. the second acc. wire you can just use your main acc. wire from your remote starter to trigger the relay you need to use anyway.
-------------
Mike Battaglia
Specialized Car Audio
Bensenville IL 60106
Posted By: soundzplusinc
Date Posted: November 26, 2006 at 6:03 PM
youre my hero mike .... lol..
Posted By: master5
Date Posted: November 26, 2006 at 6:31 PM
Although you probably don't need one..here is a diagram how do 2nd circuits on any RS that does not provide them. ..I just like making diagrams..lol rs_circuit.jpg -------------
Posted By: NowYaKnow
Date Posted: November 26, 2006 at 7:45 PM
You wouldn't want to use that diagram because those relays will be active everytime you start/run the vehicle with the key, not to mention throw 12 volts constant to negative circuits. And the 2nd starter portion on a 300C which has a negative 2nd starter would surely fry something.
Mike
Posted By: NowYaKnow
Date Posted: November 26, 2006 at 7:58 PM
Posted By: mxxmikexx
Date Posted: November 26, 2006 at 8:12 PM
if you have a BLACK / YELLOW wire (which is pulse while cranking) on a four pin harness on your audiovox, you dont even need to use that extra relay with resistor for the 2nd start wire, just hook up the BLACK / YELLOW directly and it will work. You still need the other relay however for the acc. portion however. nowyaknow is right, dont follow that diagram that master5 posted.
-------------
Mike Battaglia
Specialized Car Audio
Bensenville IL 60106
Posted By: master5
Date Posted: November 26, 2006 at 8:20 PM

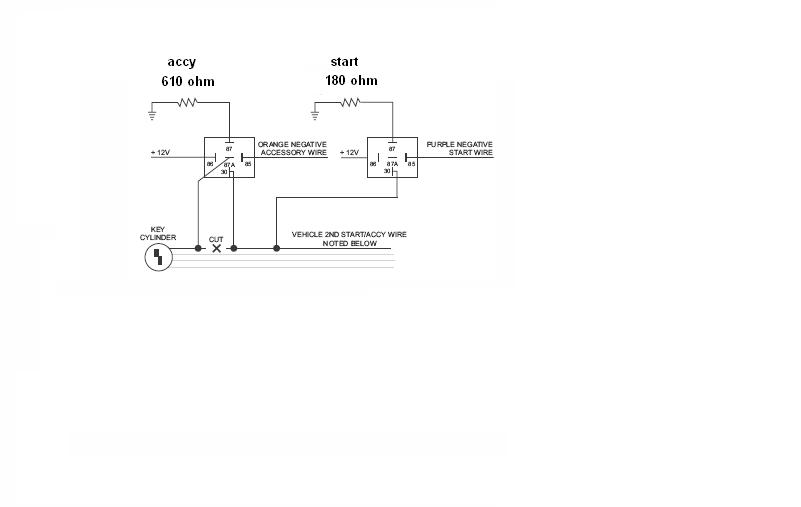

Oops, I stand corrected..I should have looked up the wiring on that vehicle before posting that diagram. The throws to the relays should have been diode isolated as well to prevent feedback although I don't think a relay simply being active while the key is on per say would have caused damage in itself. Here is what I got for wiring..I have done a few of the newer chryslers but guess I forgot they have negative circuits at the harness..but I do not remember any being that diffcult overall. I also don't list any 2nd ignition being nessecary to connect. Also see diagram below..if you need anymore help please feel free to ask. 12volts lt. blue/red (15A) + ignition harness
Starter pink/dk. green + ignition harness
Second Starter PURPLE / brown - ignition harness
Notes: The second starter wire is negative trigger thru an 180 ohm resistor. MUST use a relay.
Ignition pink/white + ignition harness
Accessory same as second starter wire - ignition harness
Notes: The accessory wire is negative trigger thru a 610 ohm resistor. MUST use a relay
-------------
Posted By: master5
Date Posted: November 26, 2006 at 8:28 PM
also note..if you find your RS unit does not have the negative control outputs (the one in the diagram is for DEI products) you can use the positves from the exisiting acc and start output and put the 86's to a ground during RS output wire on your RS unit.
-------------
Posted By: lsondubz
Date Posted: November 27, 2006 at 6:29 AM
Yes it does have the aux 4 pin plug but I didnt know those would work, For starter it might but it says a pulse during crank, that is a short hit fromt the brain isnt it? Or does it pulse the whole time its cranking? And how safe is it to just use that wire straight the the starter wire in the car? How would that be wired then?
Posted By: mxxmikexx
Date Posted: November 27, 2006 at 9:28 AM
follow the link that nowyaknow has posted above, however you dont need to use the relay and 180 ohm resistor for the 2nd start circuit, just take your BLACK / YELLOW (pulse while crank) and hook that up to the vehicle side (BCM) of the 2nd start wire that you cut and used a relay for your acc. circuit.
I have done several chryslers like this without any problems, i just did an 06' ram1500 like this on saturday, as well as many 300's, magnums, etc.
-------------
Mike Battaglia
Specialized Car Audio
Bensenville IL 60106
Posted By: master5
Date Posted: November 27, 2006 at 3:10 PM
yeah, I would try it the way stated in the last post..obviosly he has experience with the audiovox in the chryslers like this and knows it works..the internal resistance apparantly is close enough to be recognized on the second starter wire which is negative as well so no relay needed. And it being a pulsed output is fine..it only needs to see the negative during "crank"..just like with the key itself..we only need the RS to mimmick what the key does to get it to work. connect the second accy with a relay/resistor as in the correct diagrams and the "tricky" part is done. Good Luck -------------
|
