Topic: How do I wire for a motorized amp rack?
Posted By: scorponox
Subject: How do I wire for a motorized amp rack?
Date Posted: July 19, 2004 at 3:42 PM
I will use window motor to move my amp rack...but I would like to know how to wire it. I think I need 2 relays and 2 limit switches....any schematics? Is there any other way to wire it up with a window module?
Replies:
Posted By: scorponox
Date Posted: July 19, 2004 at 3:51 PM
I fogot to add that I would like the rack to slide out when the trunk opens and then when the trunk is closed the rack slides back. The trunk has a switch that grounds in order to turn on the trunk light....so I was thinking to use this switch to control the amp rack.
Posted By: auex
Date Posted: July 22, 2004 at 12:10 AM
There actually is a good article on basic motorization that would probably help you out in the september issue of CA&E. When I can find a link to the article then I will post it.
-------------
Certified Security Specialist
Always check info with a digital multimeter.
I promise to be good.
Tell Darwin I sent you.
I've been sick lately, sorry I won't be on much.
Posted By: ropes
Date Posted: July 25, 2004 at 7:21 PM
I saw your question and I was intrigued...and I think I have figured it out. The way I figure, you would have to use three relays...one that runs off the trunk switch and two for polarity reversal. You'll see what I mean in the diagram...
All you would have to do is figure out where to phisically put the limit switches so that the motor stops moving your rack setup. Hope this helps.
Posted By: ice4life8269
Date Posted: August 03, 2004 at 6:23 AM
scorponox, did you try it yet? i'm interested to see your progress
-------------
Posted By: swede
Date Posted: August 08, 2004 at 10:39 PM
Is there a place to buy adjustable actuators or is using window motors usually the norm? ------------- Subtlety is EVERYTHING.
Posted By: scorponox
Date Posted: August 15, 2004 at 11:24 PM
IT WORKED...THANKS ROPES. It works like a charm. But now I have a problem...the motor spins too fast and I need to slow it down. How do I do this...with a resistor?
Posted By: promodeepcycle
Date Posted: August 31, 2004 at 11:49 AM
i just finished doing some motorization yesterday ..used 2 pulse timers 2 relays and a reed switch ...lifting the hatch on a 88 civic hb turned out pretty good
-------------
dont be a pet monkey ..use your dmm
Posted By: Asmodeus
Date Posted: September 02, 2004 at 11:23 PM
swede] wrote:
p>Is there a place to buy adjustable actuators or is using window motors usually the norm?
Fishman Car Audio sell good Linear Actuators that I have used on numerous occasions....They are smooth actuating and are REAL Strong... I am sure that most any Linear Actuator would be just as good..I have just been dealing With Fishman Custom Car audio accesories and like their business....They have all kinda stuff for doing custom installs.... -------------  Making the World A Louder Place
Posted By: hotwaterwizard
Date Posted: September 08, 2004 at 9:35 PM
Look what I found as a Starting place.
------------- John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
Posted By: hotwaterwizard
Date Posted: September 08, 2004 at 11:13 PM

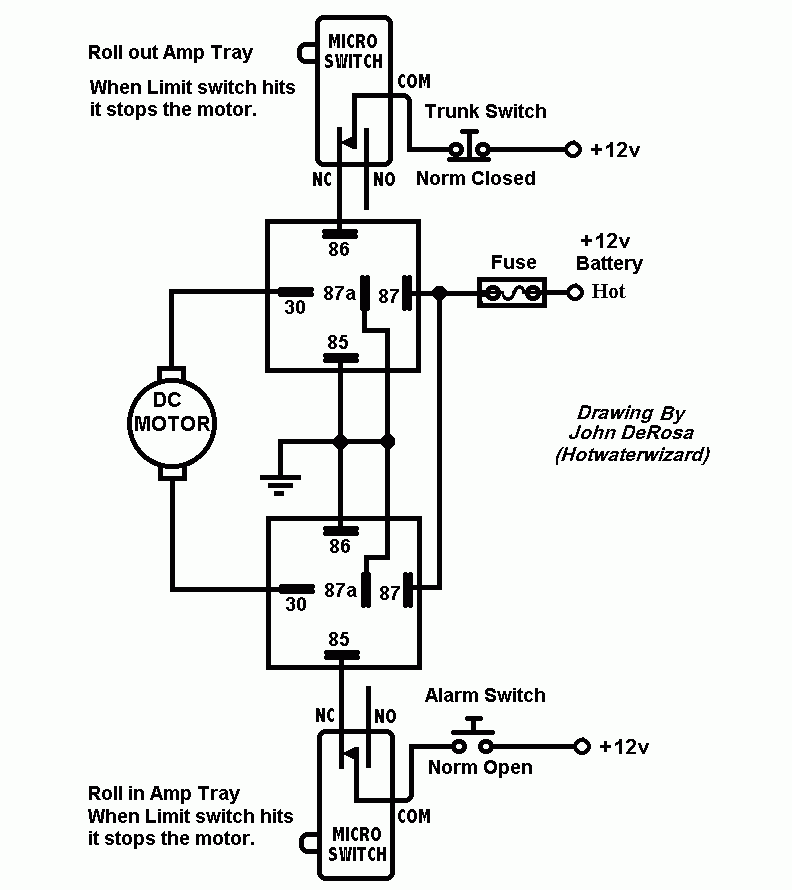

Here is what I came up with using the Above Circuit as a referance.  ------------- John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
Posted By: ropes
Date Posted: September 09, 2004 at 4:02 PM
Hey scorponox, Yeah...a resistor may do the trick for your motor, experiment with it. Try various resistors also might want to try some potentiometers. Any decent electronics store should have a supply of either of those. Post a pic or two....let us see what it looks like.
Posted By: hotwaterwizard
Date Posted: September 09, 2004 at 5:35 PM
ropes] wrote:
p>Hey scorponox,Yeah...a resistor may do the trick for your motor, experiment with it. Try various resistors also might want to try some potentiometers. Any decent electronics store should have a supply of either of those. Post a pic or two....let us see what it looks like.
A Resistor or potentiometer would fry because of the current. Now a Light Dimmer from the Junk yard may do it or a Wiper speed control. I will see what I can come up with. ------------- John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
Posted By: hustlin247
Date Posted: September 12, 2004 at 4:36 PM
Put a coil in series with the motor on the ground side in order to slow it down...
Posted By: scorponox
Date Posted: September 13, 2004 at 7:21 AM
What do you mean by "coil"?
Posted By: cache
Date Posted: October 31, 2004 at 11:02 AM
does fishman car audio have a web site?
Posted By: auex
Date Posted: November 01, 2004 at 12:29 AM
Yeah, not much there yet. FishmanAudio------------- Certified Security Specialist
