Topic: Sequential tail lights

Posted By: hotwaterwizard
Subject: Sequential tail lights
Date Posted: March 26, 2006 at 4:08 PM

I finally found my diagram that was downloaded from Fire Pinto when it was on the web a few years back. It is a large relay circuit for Sequential tail lights. Too large to post here. If Interested just email me hotwaterwizard@aol.com

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Replies:

Posted By: hotwaterwizard
Date Posted: April 23, 2006 at 2:42 AM

Here is an Easier one using only 2 relays. But, you need to make 2 of these.

posted_image

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: bdl666
Date Posted: April 23, 2006 at 8:18 AM

Why don't you just upload the diagram to the downloads section of this site.

It will save the trouble of having to answer so many e-mail messages.

Posted By: hotwaterwizard
Date Posted: April 23, 2006 at 1:06 PM

I have never uploaded there. I can not find where to upload.

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: bdl666
Date Posted: April 23, 2006 at 8:12 PM

Here you go :

https://www.the12volt.com/downloads/addfile.asp

Posted By: crimsonalba0
Date Posted: April 27, 2006 at 10:52 PM

Hey hey hey uh... for that second diagram... where can i buy one of those relays... like whtas the number and stuff?

Posted By: hotwaterwizard
Date Posted: April 27, 2006 at 11:22 PM

I tried the second one with small relays and it worked fine but, when I used VW relays it didn't work.

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: crimsonalba0
Date Posted: April 28, 2006 at 12:04 PM

Could you tell me what sort of SPDT relay i need? like the voltage and stuff...?

Posted By: hotwaterwizard
Date Posted: April 28, 2006 at 8:17 PM

Hasco HS212 -12(sensitive).
1 amp 12v coil 960 ohms 12.5ma

https://www.hascorelays.com/pdf/hasco_catalog_08_05.pdf
https://www.hascorelays.com/electro_power_consumption.asp
https://www.allelectronics.com/pdf/relays.pdf

posted_image

Hasco HS212
Substitutes
Mouser Part #:   817-RY-12W-K
Mfr. Part #:   RY-12W-K
Mfr.:   Fujitsu
https://www.fcai.fujitsu.com/pdf/ry.pdf

https://www.mouser.com/index.cfm?handler=displayproduct&lstdispproductid=587684&e_categoryid=156&e_pcodeid=81701

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: hotwaterwizard
Date Posted: April 30, 2006 at 9:09 PM

Here is another type only one light lights up at a time.

posted_image

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: eternal1
Date Posted: May 07, 2006 at 9:18 AM

I actually saw this on a car here around where i live and came up with an idea that i was wanting to try. would it be able to be used as a light flasher for an alarm? for instance when i arm the alarm the lights will flash through high beam low beam then parking lights? and would i need to create this for both sides of the car or would it be possible to create just one curciut since i would only be using it in place of parking light flash from alarm?

Posted By: hotwaterwizard
Date Posted: May 07, 2006 at 10:59 PM

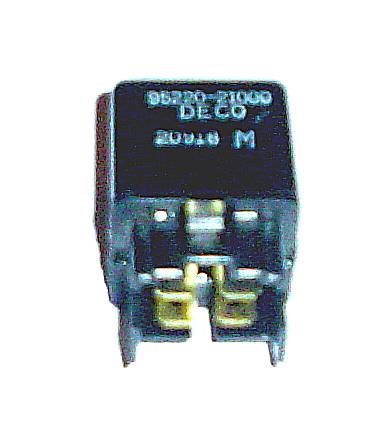

Will I spent some time perfectong Diagram #2 and it does not work with standard Bosch relays. However it works prefect with Honda relays.

posted_image

-------------
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

Posted By: eternal1
Date Posted: May 08, 2006 at 5:26 PM

ok but that doesnt really answer my question as to wiether or not it will work through an alarm. does the alarm flash last long enough for it to cycle through the lights. and will it work on the headlights as i described as well?

Posted By: gregory863
Date Posted: May 08, 2006 at 7:50 PM

use that pac timer thing. something 7? the one people us for alpine flips

Posted By: hotwaterwizard
Date Posted: May 08, 2006 at 8:41 PM

I don't know if it will work for your application the sequence only lasts about 1 second.

How long is the flash on the alarm?

-------------
