Topic: Two Triggers, one output

Posted By: pthermes
Subject: Two Triggers, one output
Date Posted: May 31, 2006 at 12:30 PM

Hi - I'd like to control my footwell neons in the following manner. If anyone could help me with a relay diagram it would be greatly appreciated.

Come on with the door open (negative trigger), and also come on if the parking lights are flipped on (positive trigger). I know I can do this with two relays, but do I need to use diodes across the coils or anwhere else?

Thanks

Paul

Replies:

Posted By: Hoptup32
Date Posted: May 31, 2006 at 9:00 PM

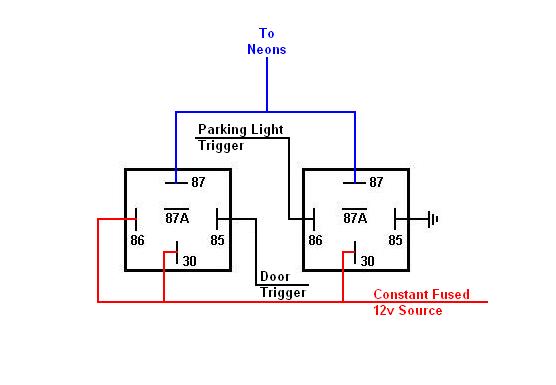

Here's a simple diagram to use both triggers, no diodes required if you use the same constant 12v fused power source.

posted_image

Posted By: pthermes
Date Posted: May 31, 2006 at 9:30 PM

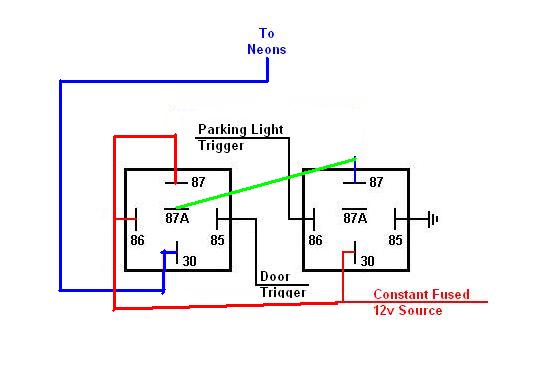

Wouldn't this work also?? Or would this cause some problems? posted_image

Posted By: KPierson
Date Posted: June 01, 2006 at 1:31 PM

You should be able to do it with one relay.

Pin 86 - 12vdc
Pin 85 - (-)Door pin

Pin 30 -(+) 12vdc output to neons
Pin 87A (+)12vdc parking light signal
Pin 87A (+)12vdc

When the door is closed and the parking lights are off no voltage will flow to your neons.

When you open the door it will energize the relay and the 12vdc will run the neons.

If the door is closed and you turn on your parking lights the parking light signal will run the neons.

-------------
Kevin Pierson

Posted By: KPierson
Date Posted: June 01, 2006 at 1:31 PM

You should be able to do it with one relay.

Pin 86 - 12vdc
Pin 85 - (-)Door pin

Pin 30 -(+) 12vdc output to neons
Pin 87A (+)12vdc parking light signal
Pin 87A (+)12vdc

When the door is closed and the parking lights are off no voltage will flow to your neons.

When you open the door it will energize the relay and the 12vdc will run the neons.

If the door is closed and you turn on your parking lights the parking light signal will run the neons.

-------------
Kevin Pierson

Posted By: djfearny2
Date Posted: June 01, 2006 at 1:48 PM

k peirson is right you can do it with one relay however one thing is wrong.

Pin 86 - 12vdc
Pin 85 - (-)Door pin

Pin 30 -(+) 12vdc output to neons
Pin 87A (+)12vdc parking light signal
Pin 87 (+)12vdc (this was the mistake)

-------------
Jon
Installer/Help Technician
---coral springs florida---
mecp certification is not always needed. I have it and it has not helped me out at all. my experience out shines it.

Posted By: KPierson
Date Posted: June 01, 2006 at 2:28 PM

what, your relays don't have two 87As??????

Sorry about that.

-------------
Kevin Pierson

Posted By: pthermes
Date Posted: June 01, 2006 at 5:01 PM

Thanks for all the replies. I don't want to do it with one relay because I plan on adding some other items to the circuit and think it would be too much of a draw on the parking light circuit.

Thanks

Posted By: KPierson
Date Posted: June 01, 2006 at 5:52 PM

If that is the case I would go with the first diagram. The 2nd one will work, but its more complicated and tehre is no need to connect the relays together. For troubleshooting purposes I would keep all relays as seperate as possible.

-------------
Kevin Pierson

Posted By: KPierson
Date Posted: June 01, 2006 at 5:52 PM

-------------
Kevin Pierson

Posted By: fozzymix
Date Posted: June 12, 2006 at 10:44 PM

hello......actually i'm beginnin to install car-alarms. and

i need to know one thing: "alarm imput wire " wath is for?

thank "u"

-------------
edgar

Posted By: church_of_bass
Date Posted: June 12, 2006 at 11:04 PM

if i read correctly, you are probably dealing with some kind of sensor input, most likely a shock sensor or a door pinswitch sensor...what kind of alarm is it?

-------------
