Topic: alarm wiring, 97 honda s-mx
Posted By: bala
Subject: alarm wiring, 97 honda s-mx
Date Posted: September 29, 2011 at 7:15 PM
Hi,
Can someone provide me the Vehicle Wiring Information for 1997 Honda S-MX as I wanted to install car alarm in it.
Thanks
-------------
kaalz
Replies:
Posted By: i am an idiot
Date Posted: September 29, 2011 at 8:23 PM
Do you have any idea of that vehicles name here in the states?
Posted By: bala
Date Posted: September 29, 2011 at 8:34 PM
Sorry I do not know whats it called in States.  ------------- kaalz
Posted By: i am an idiot
Date Posted: September 29, 2011 at 8:37 PM
I do not think I have ever seen one of those over here. Give me a minute.
Howie, Peter, HELPPPP
Posted By: i am an idiot
Date Posted: September 29, 2011 at 8:41 PM
https://www.the12volt.com/installbay/forum_posts.asp~TID~110410
Do you have a voltmeter to verify some info if I give it to you?
Posted By: i am an idiot
Date Posted: September 29, 2011 at 8:43 PM
 |
Battery |
|
WHITE |
|
(+) |
|
IGNITION SWITCH HARNESS |
|
|
|
Ignition 1 |
|
BLACK / YELLOW |
|
(+) |
|
IGNITION HARNESS OR YEL 22 PIN DRIV KICK |
|
|
|
Starter 1 |
|
WHITE |
|
(+) |
|
IGNITION SWITCH HARNESS |
|
|
|
All Door Trigger |
|
LIGHT GREEN/ RED |
|
(-) |
|
GRAY MOLEX DRIVERS KICK PANEL |
|
|
|
Trunk Trigger |
|
BLUE/BLACK |
|
(-) |
|
22 PIN FACTORY ALARM PLUG BEHIND DRV KIC |
|
|
|
Parking Lights |
|
RED / BLACK SLV |
|
(+) |
|
GRN PLUG ABOVE FUSE BOX |
Posted By: i am an idiot
Date Posted: September 29, 2011 at 8:44 PM
Posted By: bala
Date Posted: September 29, 2011 at 8:47 PM
yes i do
-------------
kaalz
Posted By: bala
Date Posted: September 29, 2011 at 8:48 PM
thank you so much.will check and u know...u guys have been a great help
-------------
kaalz
Posted By: howie ll
Date Posted: September 30, 2011 at 12:17 PM
Craig, sorry busy yesterday and got to this late.
12v+ constant white.
Ignition, BLACK / YELLOW.
Starter, BLACK/ white
Acc, WHITE/ black and yellow.
Indicators (not parking lights except US), GREEN/ YELLOW and GREEN/ blue, all above on steering column loom or various points on the fuse box.
If the poster can give us a fuse box photo, I'll identify them.
Central locking control probably in driver's door module, blue and blue/white test, or driver's kick panel, negative control, might be single point locking, i.e. from driver's door only so unless the poster has a keyless entry, i.e. factory fob an actuator MIGHT be required.
The interior of the vehicle doesn't look at all familiar but I'm guessing it's similar to the Honda Jazz/City. All the Honda colours were the same then whatever the vehicle.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 02, 2011 at 5:40 PM

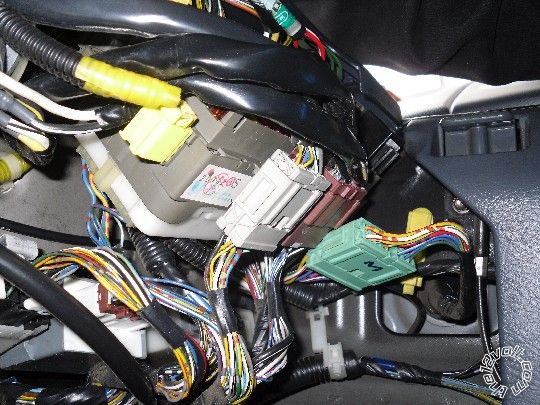

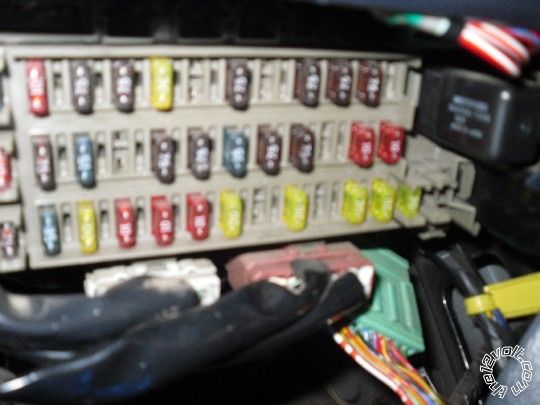

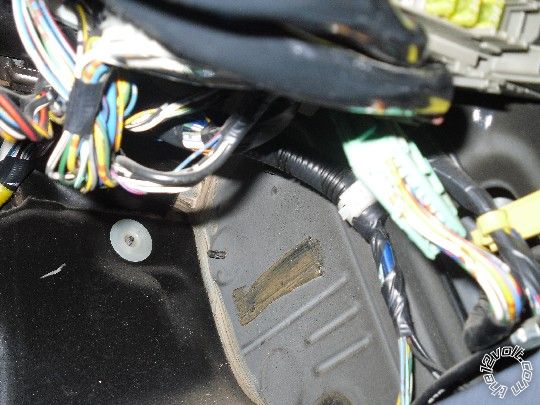

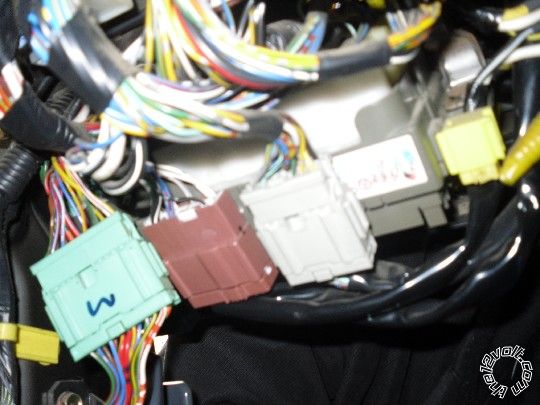

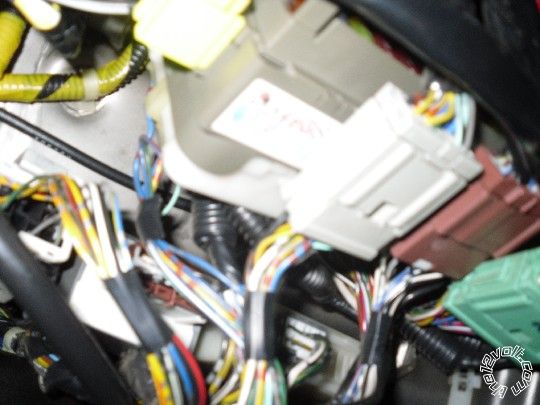

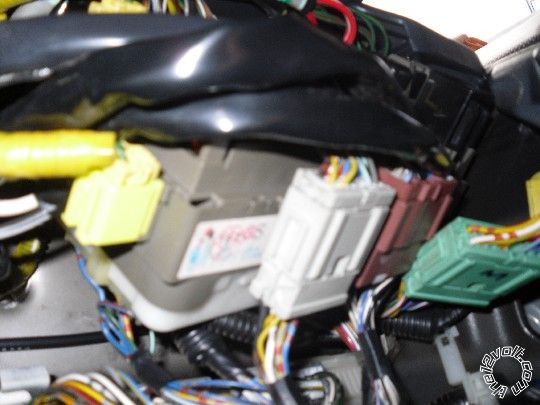

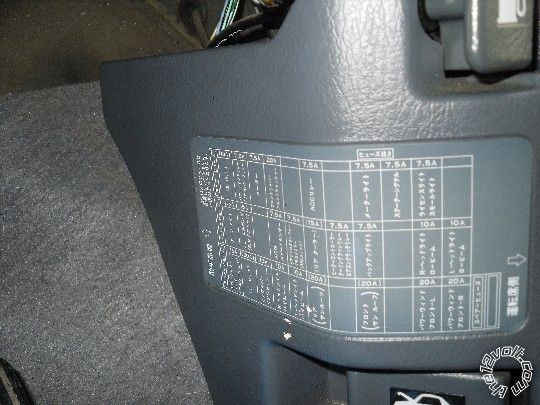

Please see attached pictures. Thanks
-------------
kaalz
Posted By: bala
Date Posted: October 02, 2011 at 5:48 PM
  ------------- kaalz
Posted By: bala
Date Posted: October 02, 2011 at 5:50 PM
Posted By: howie ll
Date Posted: October 02, 2011 at 5:51 PM
Sorry, doesn't help at all! I was actually looking for the plugs, top and bottom. Get out your DMM and test, it can't be difficult. I was wrong earlier, it's based on the CR-V of that year.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 06, 2011 at 8:34 PM

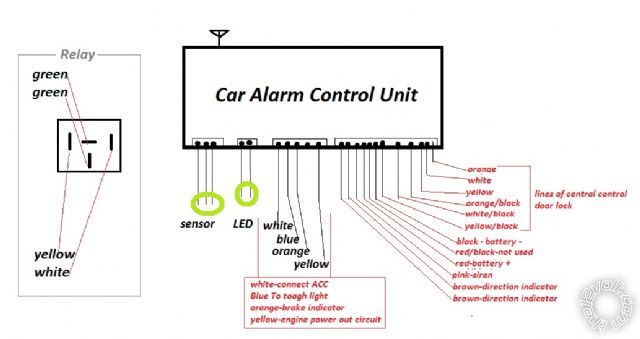

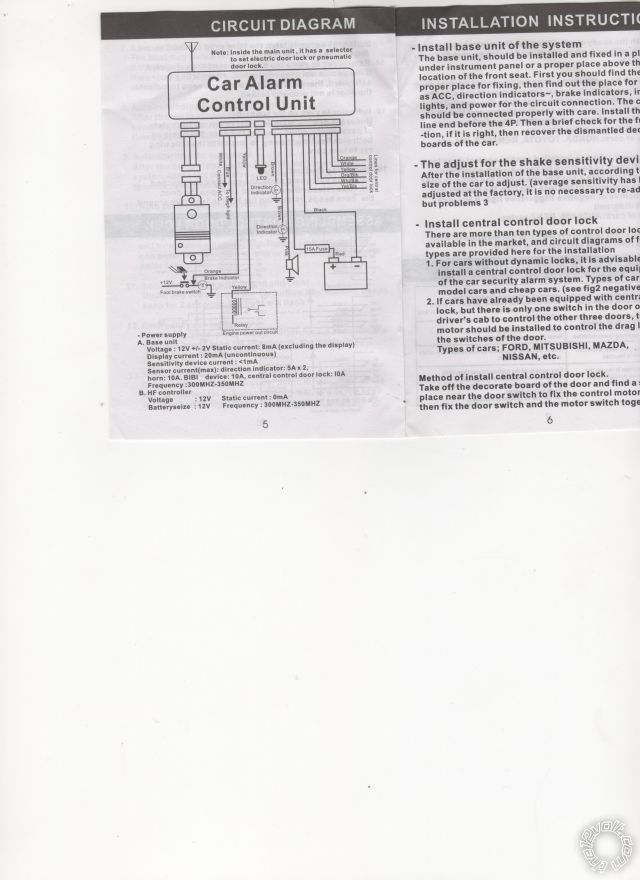

Please see the alarm circuit which I want to install. Apart from foot brake,ACC,LED,Siren and battery connections can you please guide me the connections for the other wires like....Blue to toagh light,brown direction indicator,brown direction indicator and central locking.  ------------- kaalz
Posted By: bala
Date Posted: October 06, 2011 at 10:10 PM

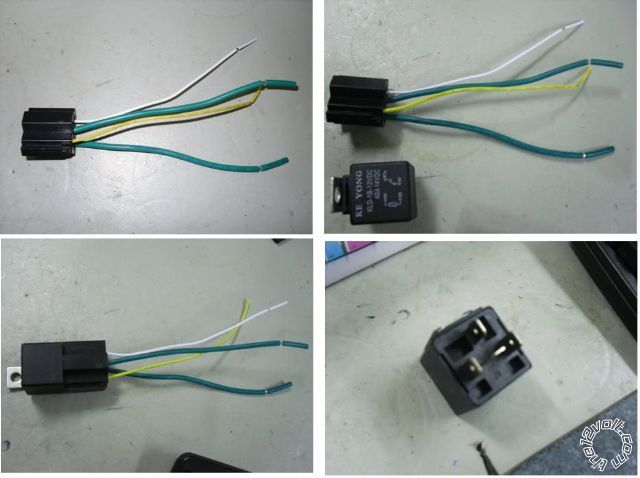

How to connect this wires of relay ------------- kaalz
Posted By: howie ll
Date Posted: October 07, 2011 at 3:13 AM
Cut the starter wire. Join the greens to each end.
One wire the white? I can't read the diagram, goes to the alarm's GWA (ground whilst armed), the other yellow probably to an alarm lead marked ignition, also joined to the vehicles ignition.
With the locking you're on your own, I'm GUESSING a white control unit in the driver's door (CRV style). It could be either neg swiching or 5 wire you will have to test or post a photo of the unit.
Could we please have a list of the alarm wires, colours and functions.
Having seen your answers I strongly suggest taking this to a pro. to have it installed.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 08, 2011 at 2:16 AM
where does the white wire of the relay go...will post the post of the door control soon.thanks ------------- kaalz
Posted By: howie ll
Date Posted: October 08, 2011 at 2:31 AM
As you can see from the diagram the yellow and white from the relay go to the yellow and white of the alarm. The white also goes to the BLACK / YELLOW of ignition, NOT ACC as shown in the diagram.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 08, 2011 at 5:21 AM
does the blue wire from the alarm go to doom light and the two brown wires go to the left and right indicator?
-------------
kaalz
Posted By: howie ll
Date Posted: October 08, 2011 at 5:29 AM
Yes but from your questions and the alarms wiring I wouldn't bother.
Your questions imply a lack of knowledge that leads me to say don't do this.
The alarm diagrams and spelling tell me it's rubbish.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 16, 2011 at 7:00 PM
Thanks Howii.I have installed the alarm and its working fine now. Thanks for your help. The central locking was in the centre behind the centre cup holder. Negative trigger.
Is the wiring for the 2000 suzuki swift and 2005 suzuki swift the same? I also want to install alarm in my 2005 suzuki swift. Thanks
-------------
kaalz
Posted By: howie ll
Date Posted: October 17, 2011 at 1:19 AM
Not really, same basic principles but the colours will all be different. Should be on this site under vehicle wiring.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: bala
Date Posted: October 17, 2011 at 6:12 AM
sorry howie I could not find the wiring for 2005 suzuki swift on this site.Will try to find somewhere else.Thanks
-------------
kaalz
Posted By: bala
Date Posted: April 17, 2012 at 7:19 PM
Hi. Thanks I was able to install the alarm. Your information was very clear. Much appreciated.
Do you have the alarm wiring information for 2005 Suzuki Swift and 1998 Daihatsu Terios. Both are 1300cc.Thanks
-------------
kaalz
|
