Topic: 2015 Ford F-150, Alarm Wiring Diagram
Posted By: ghades
Subject: 2015 Ford F-150, Alarm Wiring Diagram
Date Posted: September 28, 2022 at 1:22 PM
Does anyone have the wiring diagram for an alarm install on a 2015 Ford 150?
-------------
...
Replies:
Posted By: i am an idiot
Date Posted: September 28, 2022 at 7:53 PM
Smart Key, Regular Key or Work Truck?
-------------
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
Posted By: ghades
Date Posted: September 28, 2022 at 8:44 PM
regular key 2015 ford f150 xlt 5.0
-------------
...
Posted By: i am an idiot
Date Posted: September 28, 2022 at 10:30 PM
Item Wire Color Polarity Wire Location
12 Volts green/red (50A) + BCM in passenger kick, 22 pin plug (G), pin 22
Ground (chassis ground)
Starter blue/white + ignition switch, black 7 pin plug, pin 7
Ignition white/orange + ignition switch, black 7 pin plug, pin 1
Accessory violet/green + ignition switch, black 7 pin plug, pin 6
Keysense blue/gray + ignition switch, black 7 pin plug, pin 5
CAN Bus High white/blue (HS CAN) data Gateway Module on data link connector, black 24 pin plug, pin 20
CAN Bus Low white (HS CAN) data Gateway Module on data link connector, black 24 pin plug, pin 19
CAN Bus High 2 gray/orange (MS CAN) data Gateway Module on data link connector, black 24 pin plug, pin 23
CAN Bus Low 2 violet/orange (MS CAN) data Gateway Module on data link connector, black 24 pin plug, pin 22
CAN Bus High 3 green/orange (HS2 CAN) data Gateway Module on data link connector, black 24 pin plug, pin 18
CAN Bus Low 3 gray/blue (HS2 CAN) data Gateway Module on data link connector, black 24 pin plug, pin 17
IMMO Data blue/white (LIN bus) data PATS Transceiver on ignition switch, black 4 pin plug, pin 3
Power Lock gray/yellow - door lock switch in driver door, black 4 pin plug, pin 1 or black 8 pin plug, pin 7
Power Unlock violet/gray - door lock switch in driver door, black 4 pin plug, pin 3 or black 8 pin plug, pin 8
Lock Motor gray/brown 5 wire driver kick or BCM in passenger kick, 36 pin plug (C), pin 35
Driver Unlock Motor blue/green 5 wire driver kick or BCM in passenger kick, 36 pin plug (C), pin 27
Passenger Unlock Motor brown/green 5 wire BCM in passenger kick, 36 pin plug (C), pin 32
Factory Alarm Arm (arms on lock)
Factory Alarm Disarm (see disarm no unlock)
Disarm No Unlock (transponder and ignition)
Parking Lights blue/gray (F); blue/gray (R) + BCM in passenger kick, 22 pin plug (G), pin 3; 36 pin plug (C), pin 12
Parking Lights - gray - headlight switch, black 16 pin plug, pin 11
Note - Parking Lights -: See Tech Doc 1096
Parking Lights Interrupt black/violet cut headlight switch, black 16 pin plug, pin 4
Note - Parking Lights Interrupt: See Tech Doc 1096
Hazards brown - hazard switch or BCM in passenger kick, black 52 pin plug (B), pin 19
Turn Signal (Left) blue/green (F); gray/orange (R) + BCM in passenger kick, 40 pin plug (F), pin 39; 52 pin plug (E), pin 26
Turn Signal (Right) yellow/violet (F); green/orange (R) + BCM in passenger kick, 40 pin plug (F), pin 38; 52 pin plug (E), pin 52
Headlight blue - headlight switch, black 16 pin plug, pin 12
AutoLights violet cut headlight switch, black 16 pin plug, pin 13
Reverse Light green/brown + driver kick or BCM in passenger kick, 36 pin plug (C), pin 11
Left Front Door Trigger brown - N.C. driver kick, harness to rear or BCM in passenger kick, 52 pin plug (E), pin 33
Right Front Door Trigger white - N.C. BCM in passenger kick, 52 pin plug (E), pin 21
Left Rear Door Trigger green - N.C. BCM in passenger kick, 52 pin plug (E), pin 46
Right Rear Door Trigger yellow - N.C. BCM in passenger kick, 52 pin plug (E), pin 19
Dome Light gray/violet + BCM in passenger kick, 36 pin plug (C), pin 13
Trunk/Hatch Pin brown/yellow or yellow/orange (tailgate ajar) - driver kick or BCM in passenger kick, 52 pin plug (E), pin 34
Hood Pin blue/orange - N.C. BCM in passenger kick, 40 pin plug (F), pin 14
Trunk/Hatch Release brown/yellow (tailgate release) (rear handle switch) - driver kick or BCM in passenger kick, 52 pin plug (E), pin 14
Trunk Release Motor green/white (tailgate release motor) 5 wire driver kick or BCM in passenger kick, 36 pin plug (C), pin 33
Tachometer green/blue (fuel injector 1) ac PCM on passenger firewall, 95 pin plug, pin 84 (EcoBoost) or 1 (Ti-VCT)
Fuel Pump yellow/violet - BCM in passenger kick, 40 pin plug (F), pin 26
Rear Defroster brown - latched climate control switch, 26 pin plug, pin 7
Mirror Defroster (same as rear defroster)
Left Front Heated Seat (MS CAN)
Right Front Heated Seat (MS CAN)
Speed Sense yellow/orange ac PCM on passenger firewall, 95 pin plug, pin 12 (EcoBoost) or 26 (Ti-VCT)
Brake Wire violet/white + brake switch or BCM in passenger kick, 22 pin plug (A), pin 1
Parking Brake white/violet (without electric parking brake only) - parking brake switch or BCM in passenger kick, 52 pin plug (E), pin 47
Horn Trigger green/white or lt. green/white - horn switch or BCM in passenger kick, black 52 pin plug (B), pin 18
Wipers (LIN bus)
Left Front Window (Up/Down) green - blue A Driver Door Module in door, 24 pin plug, pins 13 - 14
Right Front Window (Up/Down) gray/yellow - green/white A Passenger Door Module in door, 24 pin plug, pins 13 - 14
Left Rear Window (Up/Down) green/violet - brown A left rear window switch in door, 8 pin plug, pins 6 - 7
Right Rear Window (Up/Down) white/violet - gray A right rear window switch in door, 8 pin plug, pins 6 - 7
Rear Sliding Window Open-Close yellow - violet + window switch in roof, 6 pin plug, pins 3 - 2 or passenger kick, harness to rear
Sun Roof (Open/Close) violet/brown - yellow/orange (function with ignition on only) - overhead console, 24 pin plug, pins 18 - 20
Memory Seat 1 violet/white - memory set switch in driver door, black 8 pin plug, pin 5
Memory Seat 2 yellow - memory set switch in driver door, black 8 pin plug, pin 4
Memory Seat 3 blue/orange - memory set switch in driver door, black 8 pin plug, pin 3
-------------
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
Posted By: audiokid1
Date Posted: October 01, 2022 at 7:42 AM
What system do you plan to install? You can run a CAN module with DL-FM8 firmware and bypass connecting MS CAN wires for programming.
Everything you'll need is available at the gateway and the headlamp switch.
Posted By: ghades
Date Posted: October 01, 2022 at 9:46 AM
sound good is there a guide for this ?
-------------
...
Posted By: ghades
Date Posted: October 06, 2022 at 11:05 AM
@i am an idiot
can you advice what can i use a trigger? from the info you provided thank you to install a shock sensor
-------------
...
Posted By: ghades
Date Posted: October 12, 2022 at 10:50 AM
i installed directed shock sensor and relay on 2015 ford f150 oem alarm its already install and working "but i don't know when should i install the resistor? im using has a trigger "Left Rear Door Trigger
-------------
...
Posted By: i am an idiot
Date Posted: October 12, 2022 at 7:39 PM
If you are trying to add a shock sensor to the ford alarm system, I would suggest using an alarm system that will use your OEM keyfobs. Audiovox makes one that works great. I have one at the shop and will post a model number tomorrow.
-------------
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
Posted By: audiokid1
Date Posted: October 12, 2022 at 8:23 PM
I believe the Audiovox alarm module you are referring to is the VOXXSEC.
The VOXXSEC along with an FLCART module that is flashed with DL-FM8 firmware will make for a clean and fairly easy install.
Wire chart, diagram, and programming instructions for the FLCART module after wiring connections are complete
Gateway Connector
Note: The Blue wire in this photo will be White/Blue on your truck
Headlamp Connector
Diagram of how to prep the alarm for this application
Posted By: ghades
Date Posted: October 13, 2022 at 11:36 AM

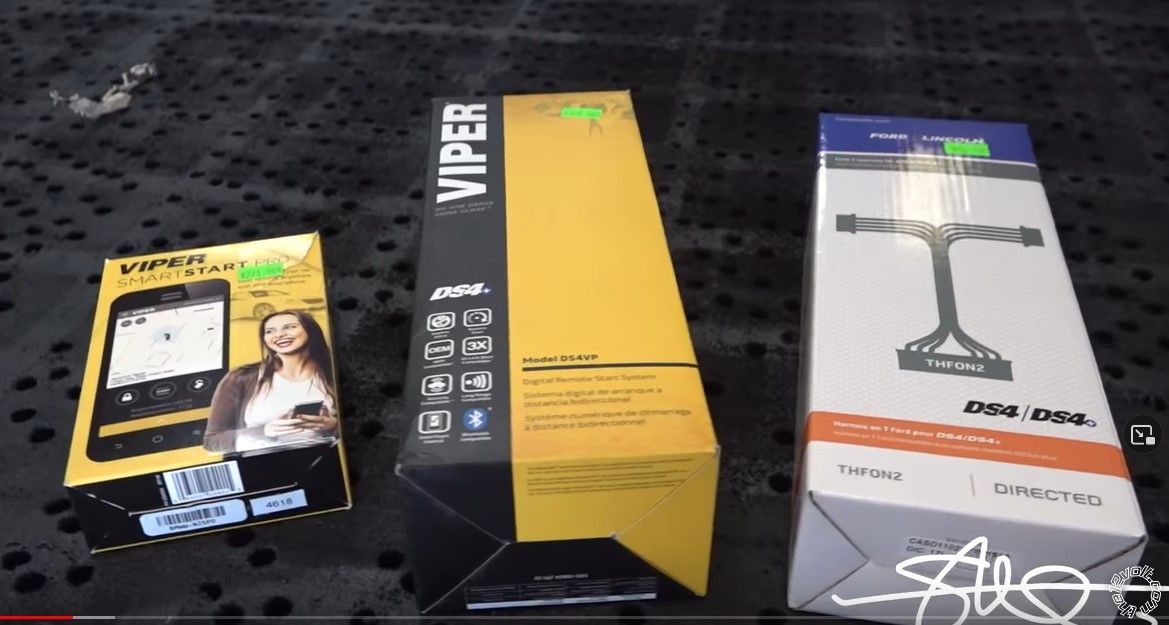

Thank you were can i purchase this VOXXSEC and FLCART module flashed with DL-FM8 firmware i was going to buy this system which would you guys recommend ???  ------------- ...
Posted By: ghades
Date Posted: October 14, 2022 at 12:11 PM
i am an idiot wrote:
If you are trying to add a shock sensor to the ford alarm system, I would suggest using an alarm system that will use your OEM keyfobs. Audiovox makes one that works great. I have one at the shop and will post a model number tomorrow.
were can i buy this setup ? ------------- ...
Posted By: audiokid1
Date Posted: October 14, 2022 at 9:46 PM
Posted By: ghades
Date Posted: October 23, 2022 at 2:55 PM
i am an idiot would you sell it to me? there's no one in my area that sells voxxx
-------------
...
Posted By: ghades
Date Posted: November 16, 2022 at 3:44 PM
Ok, so I'm a newbie; to clarify, I have a 2015 ford f150 xlt, and I have a "Directed Install essentials Dual Zone Motion Sensor 508d. "Are you telling me I could connect straight to the dome light without adding and relay and resistors, and it should work
-------------
...
|
