Subwoofer Enclosures
Second Order / Acoustic Suspension / Sealed Enclosures
These enclosures are usually the easiest enclosures to build
and are the most forgiving of many constuction and design errors.
Other characteristics include a shallow roll off on the low end (12 dB), great
low frequency power handling, the best transient responses,
and smaller enclosure sizes than most other designs.
However, magnet structures will not cool as well as they do in some ported enclosures, and
distortion in the upper bass frequencies is more noticable than ported enclosures, but can
usually be compensated for by lowering the crossover frequency or using a steeper cut-off filter.
Remember, none of these enclosures are shown to scale. Please refer to your driver's
specifications for recommended/optimal enclosure volumes.
Here is a basic sealed enclosure. Often these are construsted with the face or rear wall
of the encloser angled to prevent standing waves within the enclosure, but since
many sealed enclosures are so small this is unlikely to occur and may be a simple box shape as shown, but lining the walls with
an acoustic damping material is still recommended.
When enclosure space must be at a minimum, sealed isobaric designs work very well. These
usually require half the space of a basic sealed enclosure, but require twice as many drivers and will
acheive the same acoustical output as the single driver show above in the larger enclosure.

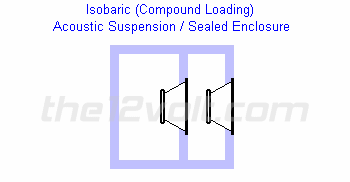

Another isobaric enclosure with the drivers facing the same direction. Obviously this will require
a larger enclosure than the one shown above, but again, output will be the same.

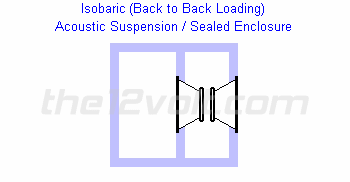

Another variation of an isobaric enclosure. It doesn't matter which way the two
drivers face, but if you have the space to use this enclosure,
you should be able to use a simple sealed enclosure instead (only one driver reguired!).

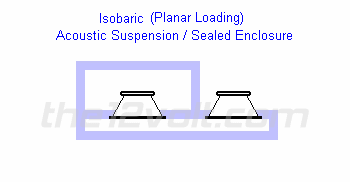

Odd spaces will require unique box shapes. This isobaric enclosure can be a great solution
for such a space. Remember, the volume of air space between the two drivers is not crucial to
the design of the enclosure, (however, you do not want to make it too small) only the volume of
the main section of the enclosure (that of the rear enclosed driver).
