tnez2

Member - Posts: 26

Joined: March 19, 2006

Location: United States

Posted: January 29, 2008 at 2:35 PM / IP Logged

Hey out there can any one tell me where i can get a 12 volt instant on delay off relay. I have tried to make one like the diagrams seen here but for some reason i cant get them to work. I am using this relay to keep the circut on a bit longer on my sequence turn signal mirrors for my motorcycle. My turn signal flash to fast and mirrors have 3 rows of light that operats in a sequence but only 2 rows light up third just a quick flash. need to stay on a tad longer on order to finish the sequence. Thanks

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: January 30, 2008 at 9:43 PM / IP Logged

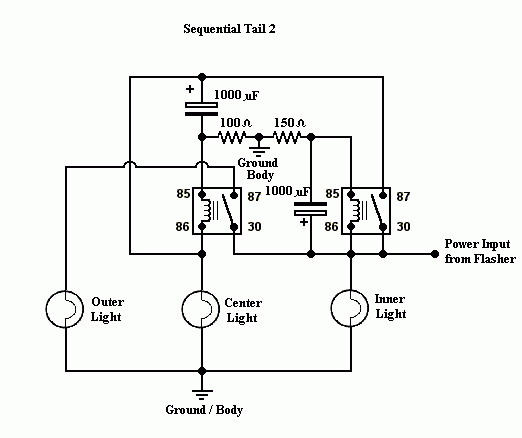

Hmmm Try this circuit

instant on delay off relay -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: January 30, 2008 at 9:45 PM / IP Logged

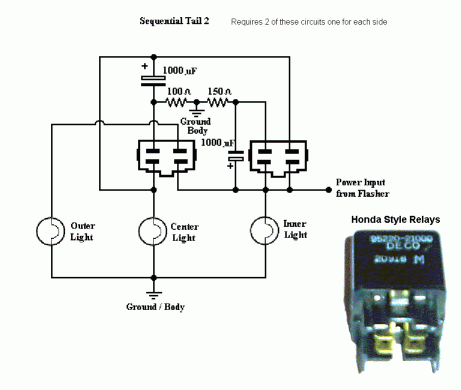

Here is another view of what is going on.

instant on delay off relay -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !
