the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Car Security and Convenience

Subject Topic: 08 silverado, viper remote start problem (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message    << Prev Topic  |  Next Topic >>
CutDog504
Silver
Silver
spacespace

Joined: May 14, 2002
Location:
Louisiana,
United States
Posts: 640
Posted: January 16, 2011 at 10:44 AM - IP Logged

I'm installing a viper alarm with remote start on a 08 Silverado. I'm using a PKUMUX as the bypass. How do I hook up this bypass? It came with no instructions whatsoever. I found an install diagram online but its very vague.
I'm also having trouble finding the ign,accesory and start wires. The wire colors I'm finding do not match up with anything on the diagrams for a 08 Silverado. This is a barebones work truck model with no power anything and a v6 engine if that matters.
Back to Top Search for other posts by CutDog504
Hi Guest
Not a member?
Register

Already a member?
Sign In
CutDog504
Silver
Silver
spacespace

Joined: May 14, 2002
Location:
Louisiana,
United States
Posts: 640
Posted: January 16, 2011 at 11:01 AM - IP Logged

Also, from reading other threads on here, people say you need to use relays and resistors on the Ign, Accy, and Start wires. Why do none of thw iring diagrams, including the one on this site mention none of this about relays or resistors? Now I'm even more confused.
I was an installer for years but have not done it since 05. These newer vehicles are more complex it seems with everything done by the computer. I remember back in the the day the only bypass that was needed was if the car had VATS! Then the transponders came out and I usually would use a key in box bypass. Now this 08 Silverado with the PK3 immobilizer is causing me headaches .
Back to Top Search for other posts by CutDog504
smokeman1
Gold
Gold
spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace

Joined: September 14, 2009
Location:
Wisconsin,
United States
Posts: 1,194
Posted: January 16, 2011 at 11:32 AM - IP Logged

Which Viper model are you installing??
___________________________________
When all else fails, Read the Instructions
Support the12volt.com
Back to Top Search for other posts by smokeman1
jim hunter
Silver
Silver
spacespace

Joined: March 23, 2006
Location:
United States
Posts: 353
Posted: January 16, 2011 at 12:18 PM - IP Logged

these trucks are super easy, just use an extra circle plus key programmed and put in a universal box, ign(pink), acc(brown) power(red/blk at backof fusebox) ground, brake(blue/white at switch) and lights(neg lt blue at switch)
Back to Top Search for other posts by jim hunter
monty_77
Silver
Silver
spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace

Joined: January 15, 2009
Location:
North Dakota,
United States
Posts: 457
Posted: January 16, 2011 at 1:21 PM - IP Logged

petty straight forward on the install

the bypass will do the resistor stuff

the remote starter all you will have to hook up is the ignition and accessory to vehicle

just use page 7 and 8 of this guide for the bypass

Manual
Back to Top Search for other posts by monty_77
CutDog504
Silver
Silver
spacespace

Joined: May 14, 2002
Location:
Louisiana,
United States
Posts: 640
Posted: January 16, 2011 at 3:28 PM - IP Logged

Its a viper 5901
Back to Top Search for other posts by CutDog504
CutDog504
Silver
Silver
spacespace

Joined: May 14, 2002
Location:
Louisiana,
United States
Posts: 640
Posted: January 16, 2011 at 10:50 PM - IP Logged

I have the alarm installed but not the remote start portion. Im having trouble finding the ign and accy wires.
Back to Top Search for other posts by CutDog504
monty_77
Silver
Silver
spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace

Joined: January 15, 2009
Location:
North Dakota,
United States
Posts: 457
Posted: January 16, 2011 at 11:13 PM - IP Logged

they can be found on the ignition harness coming from the key switch or at the BCM.
Back to Top Search for other posts by monty_77
CutDog504
Silver
Silver
spacespace

Joined: May 14, 2002
Location:
Louisiana,
United States
Posts: 640
Posted: January 16, 2011 at 11:27 PM - IP Logged

Thats the same thing the diagram said, but none of the wires colors match the diagram on the wires at the key switch.
Back to Top Search for other posts by CutDog504
monty_77
Silver
Silver
spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace

Joined: January 15, 2009
Location:
North Dakota,
United States
Posts: 457
Posted: January 17, 2011 at 9:00 AM - IP Logged

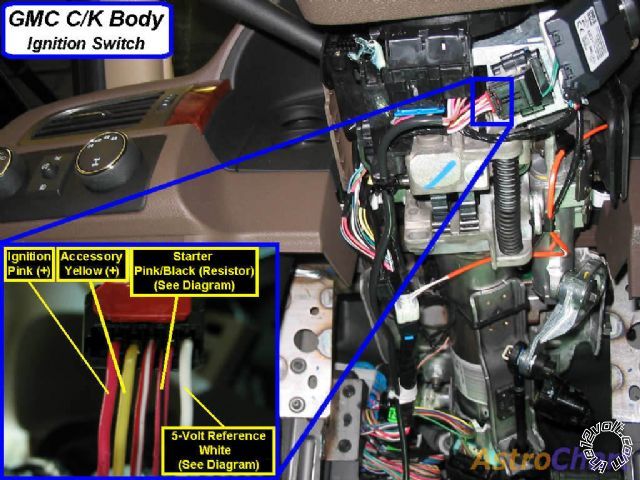

note that the accessory wire on some can be brown or yellow

posted_image
Back to Top Search for other posts by monty_77
