Subject Topic: wiring up a winch

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
riouxk
Member
Member
spacespace

Joined: November 11, 2011
Location:
Ontario,
Canada
Posts: 5
Posted: November 11, 2011 at 12:53 PM - IP Logged
Link to Post  Post Reply Quote riouxk

Hello all, I have a question that I hope you can help me with.

My neighbor has a small winch attached to the front of his quad which he uses to hoist a snowplow blade up and down. The winch controls send positive through the switches, so they are very prone to arcing out and failing to work.

We want to wire it up with a two way toggle switch and relays to prevent this issue, but are unsure how to do it.

If anyone has any thoughts, I would appreciate it. Thanks.
Attached is a picture of how the original switch works, please ignore the crudeness of my artwork.

posted_image
Back to Top Search for other posts by riouxk
Hi Guest
Not a member?
Register

Already a member?
Sign In
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,601
Posted: November 11, 2011 at 7:10 PM - IP Logged
Link to Post  Post Reply Quote howie ll

Look at the diagram in the relay section on this site, the on that shows adding door lock actuators to an alarm. The wires from the alarm going to the relays in your case would simply go back to ground via either two simple push switches or even your existing, disconnected the ground (neg) side and join your power side to ground, then each wire marked "motor" in your diagram feeds a relay.
This is your existing switch circuitry:- switch.bmp
Now look:- 9EC_switch.bmp

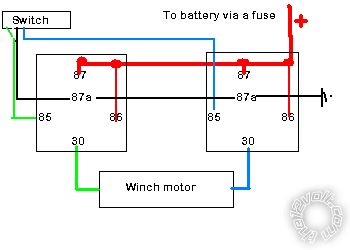

Now look again:- winch.bmp
___________________________________
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Back to Top Search for other posts by howie ll
riouxk
Member
Member
spacespace

Joined: November 11, 2011
Location:
Ontario,
Canada
Posts: 5
Posted: November 11, 2011 at 8:40 PM - IP Logged
Link to Post  Post Reply Quote riouxk

I did look at the relay section, I'm just not that good at wiring.

Thanks a lot for the diagram though! :D
