viper 5906v, 2013 wrx sti

Home / the12volt's Install Bay / Car Security and Convenience / viper 5906v, 2013 wrx sti (

Topic Closed)

Welcome Guest :)

Members

< Prev Page Next Page > < Prev Topic Next Topic >

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: July 26, 2014 at 6:58 AM / IP Logged

GREEN/ black Engine Control Mod below glove box, wht 35 pin plug (C), pin 35. With acknowledgment to DEI

jsigna

Copper - Posts: 151

Joined: July 25, 2014

Posted: July 26, 2014 at 7:02 AM / IP Logged

howie ll wrote:

GREEN/ black Engine Control Mod below glove box, wht 35 pin plug (C), pin 35. With acknowledgment to DEI

Wow you found that fast.. Thanks again..

So for the diode you said Y shaped.

I guess you mean like this..

viper 5906v, 2013 wrx sti - Page 2 -- posted image.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: July 26, 2014 at 7:03 AM / IP Logged

Perfect. In your case, diode bands towards the R/S.

jsigna

Copper - Posts: 151

Joined: July 25, 2014

Posted: July 26, 2014 at 7:13 AM / IP Logged

howie ll wrote:

Perfect. In your case, diode bands towards the R/S.

Please forgive me.. I don't understand the point of the Y diode.. Before you said just between 85 and 86 on the relay...

This is how I am looking at it..

With one diode between 85 and 85. Could you explain the y diode?

So sorry.

jsigna

Copper - Posts: 151

Joined: July 25, 2014

Posted: July 26, 2014 at 7:21 AM / IP Logged

I guess you are saying because there will be 2 relays.. 1 for the 2nd starter and 1 for the clutch bypass that you can take the 12v C and split it with a diode facing Relay 1 86 and another facing relay 2 86?

jsigna

Copper - Posts: 151

Joined: July 25, 2014

Posted: July 26, 2014 at 7:22 AM / IP Logged

jsigna wrote:

I don't think that makes any sense..

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: July 26, 2014 at 7:22 AM / IP Logged

Actually may be either, they fill the same function, I do it on the relays to avoid cutting the wiring and extra heat shrink.

Here's an example of how I do it:-


jsigna

Copper - Posts: 151

Joined: July 25, 2014

Posted: July 26, 2014 at 7:27 AM / IP Logged

That looks good to me.. so 1 diode per relay.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: July 26, 2014 at 7:28 AM / IP Logged

Essentially it's one diode for each relay.

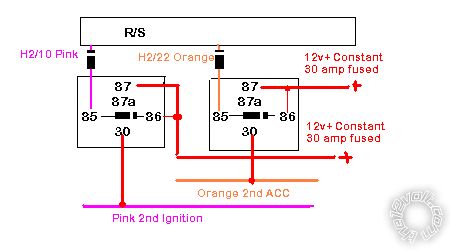

Here's another diagram, you can see that here it's belt and braces using two diodes:- DB7_2nd_ignition_and_acc.bmp

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: July 26, 2014 at 7:29 AM / IP Logged

Effectively your avoiding:-

a)Back feeding from one relay to another.

b)Back feeding to the source and destroying it.
