icbm7071 alarm in 2004 Mitsubishi Gallant

I got another one of these alarms again and I am placing it in a 2004 Mitsubishi Gallant this time. The user manual for the Alarm is found here: ICBM 7101 and I am going to include a rough draft of my wiring I have figured out so far and was wondering if anyone might be able to look over it and tell me if it looks good or if I missed anything. Also I am not sure on the wires to do for the door triggers when the door is opened to set the alarm off. I am noticing that there is a difference in the alarm wiring diagrams from bulldogsecurity and the other sites for parking lights and door triggers. one site shows a negative wire I can use for parking lights and the option for the 2 positive wires using 2 relays. and the door triggers on one site show I can use 1 wire Red/Green while bulldogsecurity shows I have to use 4 diodes and connect to all 4 door trigger wires. Do I need a second Ignition wire connected or just leave it not connected? Also the car has a second accessory wire should I connect a relay to do the second accessory with the first accessory wire or just leave it not connected too? Can anyone help me figure this out? I really appreciate any assistance. Thank you everyone. ICMB-7071 Wiring DRAFT for 2004 Mitsubishi Gallant (No transponder Key) 5 Pin Heavy Gauge Harness: Red - Battery Constant 12v+ Positive Wire (+): Blue/Yellow Battery Constant 12v+ Positive Wire Location: Ignition Switch Harness Purple - Starter Positive Wire (+): Black/Yellow Starter Positive Wire Location: Ignition Switch Harness Orange - Accessory Positive Wire (+): Blue/Red Accessory Positive Wire Location: Ignition Switch Harness     Pink A - Ignition Positive Wire (+): Black/White Ignition Positive Wire Location: Ignition Switch Harness Pink B - Second Ignition Positive Wire (+): ??? 7 Pin Secondary (H4) Harness: 1-3 - Factory wiring to R/S module 4 - Blue/White - N/C 5 - Gray/Black - N/C 6 - BLACK/ White - Chassis Ground 7 - Violet/White - Tachometer Wire Negative Wire (-): Any Wire Not Black/White Or Black Tachometer Wire Negative Wire Location: At Any Ignition Coil 10 Pin Primary (H1) Harness 1 - Brown - To Siren (+) input 2 - White - Parking Light Positive Wire (+): GREEN/ORANGE (+) and GREEN/WHITE (+) Use BOTH, See NOTE *3 *Requires 2 Relays* Parking Light Positive Wire Location: In Drivers Kick Panel Relay 1 Pin 85 - Ground Pin 86 - 2 - White (+) on Alarm Pin 87 - GREEN/ORANGE (+) Pin 87a- N/C Pin 30 - 12v constant Relay 2 Pin 85 - Ground Pin 86 - 2 - White (+) on Alarm Pin 87 - 12v constant Pin 87a- N/C Pin 30 - GREEN/WHITE (+) 3 - Violet - N/C 4 - Blue/Black - Power Door Unlock Negative Wire (-): The left front and left rear door triggers are in a 15 pin plug above the fuses. The left front door is light green (-) in pin 6, and the left rear door is orange/black (-) in pin 10. The right front and right rear door triggers are at the ETACS ECU. The right front door is yellow (-) in pin 65, and the right rear door is orange/black (-) in pin 35. When connecting to an alarm system, use all 4 door trigger wires and diode isolate to connect. 5 - BROWN / Black - Chassis Ground 6 - Violet/Black - N/C 7 - GREEN/ Black - Power Door Lock Negative Wire (-):Light Green/Red Power Door Lock Negative Wire Location: At ETACS ECU, Pin 34. ETACS (Electronic Timing/Alarm Control System) ECU (Electronic Control Unit) Is Attached To The Back Of The Fusebox. 8 - WHITE/ Black - Chassis Ground 9 - Red - 12v Constant fused (can tie into heavy gauge red wire from main harness) 10 - Black - Chassis Ground 6 Pin Secondary (H2) Harness: 1 - Orange - Starter kill relay input: Goes to (-) on LED/Scanner bar to enable when alarm is armed 2 - Blue - N/C 3 - WHITE/ Black - N/C 4 - PURPLE / Black - N/C 5 - BLACK/ White - N/C 6 - RED / White - N/C 8 Pin (H3) Harness: 1 - GREEN/ Black - N/C 2 - GREEN / WHITE - N/C 3 - Black - Trunk Pin Switch Negative Wire (-): N/C 4 - Gray - Must add aftermarket hood pin. 5 - Brown - Brake Light Positive Wire (+): Green Brake Light Positive Wire Location: At Switch Above Brake Pedal 6 - Yellow - Pink wire from main harness 7 - Green - Negative Door Input (-): NOTE *2 THE LEFT FRONT AND LEFT REAR DOOR TRIGGERS ARE IN A 15 PIN PLUG ABOVE THE FUSES. THE LEFT FRONT DOOR IS LIGHT GREEN(-) IN PIN 6, AND THE LEFT REAR DOOR IS ORANGE/BLACK(-) IN PIN 10. THE RIGHT FRONT AND RIGHT REAR DOOR TRIGGERS ARE AT THE ETACS ECU. THE RIGHT FRONT DOOR IS YELLOW(-) IN PIN 65, AND THE RIGHT REAR DOOR IS ORANGE/BLACK(-) IN PIN 35. WHEN CONNECTING TO AN ALARM SYSTEM, USE ALL 4 DOOR TRIGGER WIRES AND DIODE ISOLATE, TO CONNECT, SEE DIAGRAM here Click for Diagram 8 - Purple - N/C

I noticed something. on this site: http://www.S P A M.com/2004-mitsubishi-galant-auto-alarm-wiring-guide/ they have it different from this site: http://diagrams.marktoonen.nl/index.aspx?MakeID=32&ModelID=17842 I am going with the one from Bulldog site cause they have not steered me wrong in the past but I was wondering if that seems right?

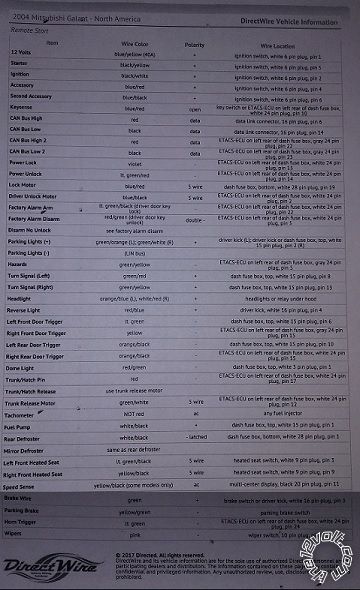

I went over to my friends at Best Buy Mobile install bay and they were able to print the wiring out for me. it looks like Bulldog Security site was like how Best Buys wiring looks so I went with that, got my relays all soldered in for door pin trigger circuit and the 2 relays. was gonna install today but it is raining. Anyone have any experience in getting the wiring through the firewall on the 2004 Galant? I am including the wiring printout I got with my post in case anyone else has questions like I did.

Well, yesterday I installed the alarm/remote start however I couldn't find an easy access place through the firewall so I didn't hookup the siren and hoodpin switch but I also found out that I do have a transponder chip in the key so I will need a transponder bypass. :( Anyone know what would be a good cheap solution for this? I tested the remote start with my key just in the ignition and it worked fine.

I posted bypass module question seperatly
