Two Sources, Activate Single Relay Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
ingeld
Member - Posts: 4
Member spacespace
Joined: November 30, 2019
Location: Florida, United States
Posted: November 30, 2019 at 11:19 AM / IP Logged Link to Post Post Reply Quote ingeld
I am trying to figure how to properly use two source to activate a single relay but not to back feed power from one source to another. Is there a special relay I need ?
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 30, 2019 at 1:57 PM / IP Logged Link to Post Post Reply Quote geepherder
You can do what you want with a single relay. The simplest way to keep from backfeeding your sources to each other would be to use diodes.

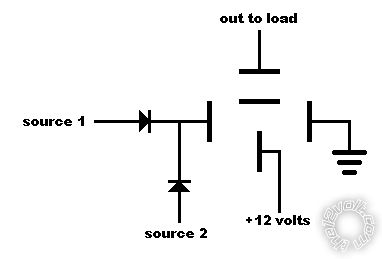

Two Sources, Activate Single Relay Wiring - Last Post -- posted image.
My ex once told me I have a perfect face for radio.
ingeld
Member - Posts: 4
Member spacespace
Joined: November 30, 2019
Location: Florida, United States
Posted: November 30, 2019 at 2:34 PM / IP Logged Link to Post Post Reply Quote ingeld
What type or part number diodes do i use .
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 30, 2019 at 3:15 PM / IP Logged Link to Post Post Reply Quote geepherder
Just generic 1 amp switching diodes will work fine. I don't have a part number.
My ex once told me I have a perfect face for radio.

If you wish to post a reply to this topic, you must first login.
If you are not already registered, you must first register.

  Printable version Printable version Post ReplyPost New Topic
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot delete your posts in this forum
You cannot edit your posts in this forum
You cannot create polls in this forum
You cannot vote in polls in this forum

  •
