2007 Ram 3500, Remote Start Wiring Confirmation

Home / the12volt's Install Bay / Car Security and Convenience / 2007 Ram 3500, Remote Start Wiring Confirmation

Welcome Guest :)

Members

< Prev Topic Next Topic >

gtitonta

Member - Posts: 18

Joined: November 28, 2021

Location: Illinois, United States

Posted: February 28, 2022 at 5:29 PM / IP Logged

Hello,

I read many threads from this website, and I made wiring schematic. Before I start to install, I want to confirm if this works or not.

I appreciate for sharing your knowledge and help. I used base someone's wiring schematic (thank you very much) and also edited the schematic for my installation.

I am kind of confused about wiring for bypass system and remote start system.

2007 Ram 3500, Remote Start Wiring Confirmation - Last Post -- posted image.

thanks for sharing your knowledge and experience. appreciate it.

mustyk@att.net

Copper - Posts: 132

Joined: November 25, 2009

Location: Michigan, United States

Posted: March 01, 2022 at 7:15 AM / IP Logged

So, what is your question?

thetopinstaller

Search for other posts by mustyk@att.net

gtitonta

Member - Posts: 18

Joined: November 28, 2021

Location: Illinois, United States

Posted: March 01, 2022 at 2:41 PM / IP Logged

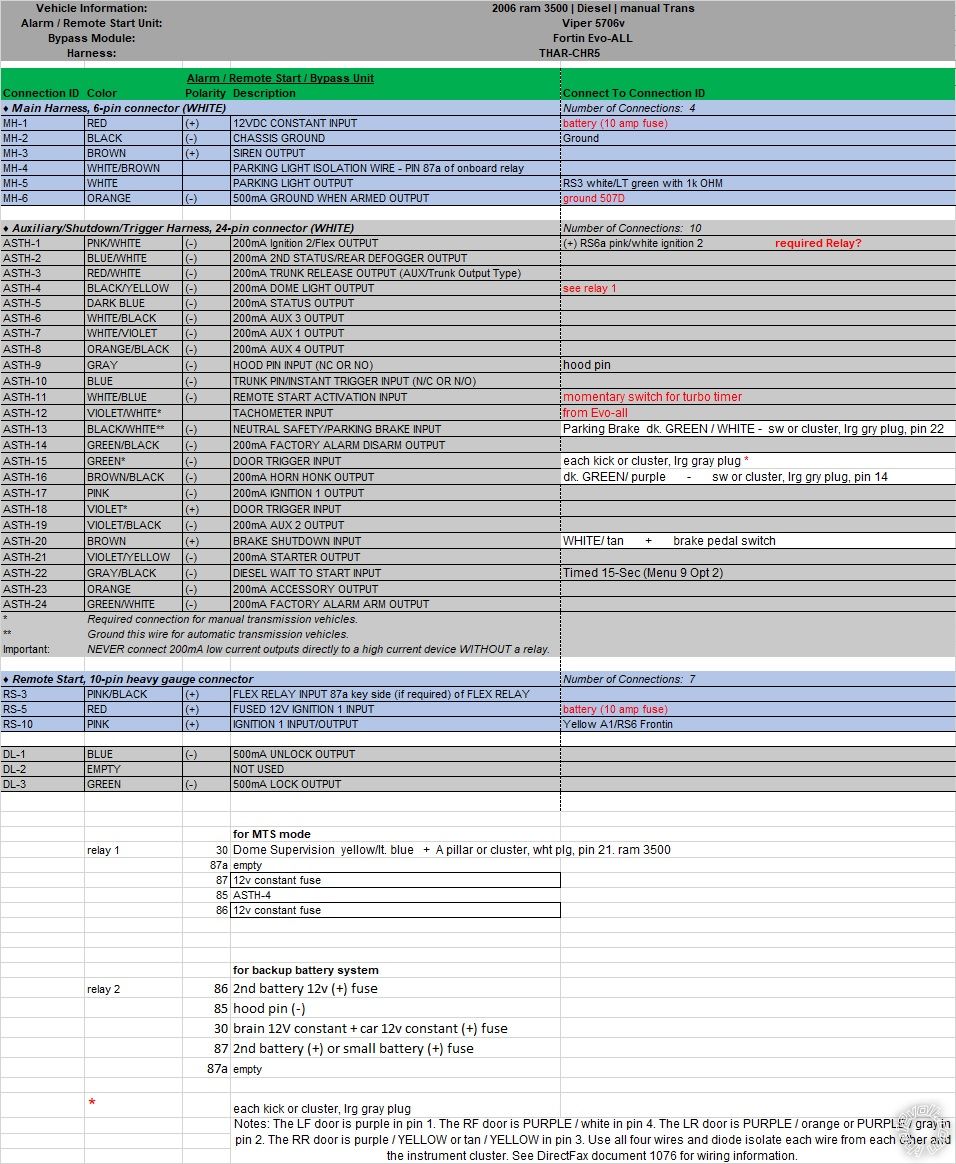

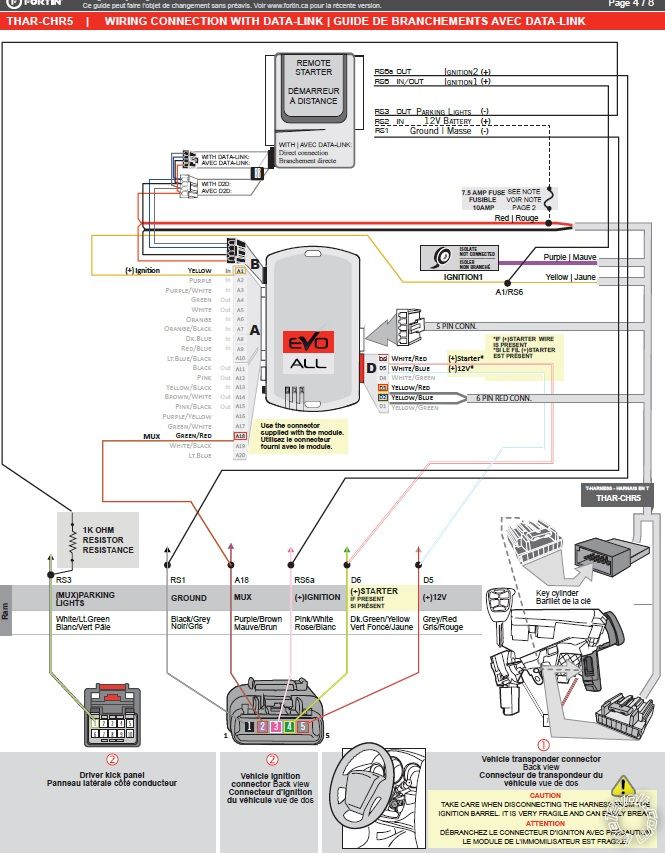

I can understand that evo-all can unlock, lock, door status etc. My question is that I don't know which wires I am supposed to connect to car and viper remote other than fortin instruction mentioned. Top part is wiring diagram from viper 5706V. Bottom part came from evo-all wiring. I would appreciate if you give me advice. thanks

catback

Silver - Posts: 703

Joined: August 13, 2002

Location: Canada

Posted: March 01, 2022 at 5:47 PM / IP Logged

Gas or Diesel? Automatic or Manual?

The Evo-All manual gives the bare minimum connections needed for Remote Start. The only other required connection is ASTH-13 Black/White.

P.S. I recognize where that 5706v wiring spreadsheet came from, please don't get into that MTS and Backup Battery System mess.

gtitonta

Member - Posts: 18

Joined: November 28, 2021

Location: Illinois, United States

Posted: March 02, 2022 at 3:40 PM / IP Logged

it is diesel and manual trans. I am planning to install proximity sensor 508D, stinger 504D, and tilt sensor 507M also.

So I just follow the instruction from fortin and additionally connect ASTH-13. Then, connect sensors to MUX port from 5706V.

I am kind of wondering if this setup works for MTS mode since it is manual transmission.

thanks for your help. appreciate it

catback

Silver - Posts: 703

Joined: August 13, 2002

Location: Canada

Posted: March 02, 2022 at 9:46 PM / IP Logged

The 5706v is manual transmission capable so it should work. The evo-all supplies a lot of the inputs over d2d so start with the bare minimum connections (based on the evo-all install guide) and augment with hard-wired connections as necessary. The evo-all even supplies parking brake input via d2d (according to the install guide) so ASTH-13 may not be needed to be connected. Unless someone can chime in who has done this specific vehicle/remote start/bypass it's going to be trial and error on your part.

gtitonta

Member - Posts: 18

Joined: November 28, 2021

Location: Illinois, United States

Posted: March 03, 2022 at 2:45 AM / IP Logged

Thanks again, Catback! Appreciate it! I will see what will happen!
