double pulse circuits

Home / the12volt's Install Bay / Car Security and Convenience / double pulse circuits (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

ttran209

Member - Posts: 13

Joined: September 30, 2008

Location: California, United States

Posted: January 14, 2009 at 11:43 AM / IP Logged

Does anyone know how to make a double pulse circuit?

I have a Honda 2009. My alarm does not have a double pulses to turn off the factory alarm.

Thanks a million,

Tony

tony

kassdog

Copper - Posts: 257

Joined: March 09, 2007

Location: United States

Posted: January 14, 2009 at 12:10 PM / IP Logged

What unit are you putting into it.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: January 14, 2009 at 1:42 PM / IP Logged

Run a relay off the lock /unlock then feed the out put back into the lock/unlock that should give you just under one second delay.

ckeeler

Gold - Posts: 1,461

Joined: June 20, 2008

Location: New Mexico, United States

Posted: January 14, 2009 at 2:27 PM / IP Logged

I think ive posted this several times now.

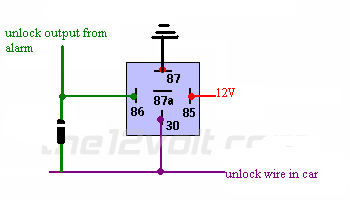

double pulse circuits -- posted image.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: January 14, 2009 at 4:53 PM / IP Logged

Thanks CK I've posted the diagramme into my files.

ttran209

Member - Posts: 13

Joined: September 30, 2008

Location: California, United States

Posted: January 15, 2009 at 10:35 AM / IP Logged

thank you Kassdog, Howie II, Cheeler,

I have Autopage RS-900 installs in my vehicle now. I just figured out that the alarm does not have a double pulse for my factory alarm.

I will try it on the weekend.

THANK YOU VERY MUCH FOR YOUR ALL KINDNESS!

Tony

tony
