3 way switch for bi color dome light


Post ReplyPost New Topic
< Prev Topic Next Topic >
laughtybus
Member - Posts: 1
Member spacespace
Joined: November 25, 2010
Location: California, United States
Posted: November 25, 2010 at 10:08 PM / IP Logged
I am working on a van, and I am trying to be able to controll to sets for dome lights from two different locations.  i would like to use only two switchs ( 3 way style)  to controll one red light and one white light but I dont wont them to come on at the same time. the only way I can think of doing it is with 2 sets of 3 way switchs on seperate circuts. any Ideas
i am an idiot
Platinum - Posts: 13,667
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: November 25, 2010 at 10:29 PM / IP Logged
3 way switch for bi color dome light -- posted image.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: February 10, 2011 at 2:14 AM / IP Logged

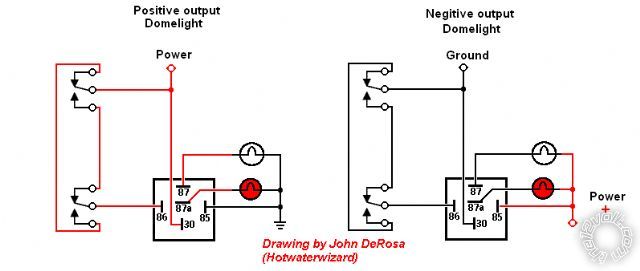

3 way switch for bi color dome light -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: February 12, 2011 at 7:50 PM / IP Logged

Here is a simpler Version of the Drawing

3 way switch for bi color dome light -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
