2005 colorado avital remote start wiring

Hello I'm new to this site and there is great information and topics on here. I'm looking to see if somebody can please help me with the wiring on a 2005 Colorado. I'm going to install an Avitar 4103 remote starter and a PLJX Passlock module. This is the wiring i have and would like to make sure it's correct before I do the install.

Avitar 4103

Primary Harness H1

H1/1 light GREEN/ black - factory alarm disarm- not being used

H1/2 GREEN / WHITE - facotry rearm- not being used

H 1/3 yellow - (+)Ignition out(to alram) - WHITE/ green ignition switch????

H1/4 WHITE/ Blue- (-) actiovation input- not being used

H1/5 orange- (-) ground when locked - not being used

H1/6 brown - (-) horn output - green to black horn switch

H1/7 RED / white - (-) truck release output - not being used

H1/8 Black - ground - Chassis ground

H1/9 white - (+/-) light flash - brown headlight switch

4-Pin satellite Harness

1 - blue - status output - Brown PLJX

2 - orange - (-) accessory output - not being used

3 - purple - (-) starter output - not being used

4 - pink - (-) - starter output - not being used

Heavy gauge relay wiring diagram

1 - Pink - (+) (30 amp) output to ignition circuit - WHITE/ green ignition switch & pink PLJX (seems like a heavy gauge wire to hook into the small gauge wire on the ignition swicth) ????

2 - purple - (+) (30amp) output to starter circuit - violet PLJX

3- orange - (+) (30 amp) output to accessory circuit - WHITE/ red ignition switch(seems like a heavy guage wire to hook into the small gauge wire on the ignition switch) ????

4- red - (+) (30A) 12v constant - battery

5- pink/white - (+) programmable output for accessory or ignition - ?????

6 - red - (+) (30A) 12v constant  - battery

Door lock harness

1 - blue - (-) unlock output - white driver kick panel

2 - empty not used

3 - green - (-) lock output - lt.blue driver kick panel

Remote Start Harness (H2) wiring diagram

H2/1 - BLACK/ white - (-) neutral saftey switch input - not used

H2/2 - violet/white - tachometer input - any fuel injector not solid color wire

H2/3 - Brown - (+) brake switch shutdown wire - lt.blue brake switch

H2/4 - gray - (-) hood pinswitch shutdown wire - not being used

H2/5 - bluw/white - (-) 200mA 2ns status/rear defogger output - not being used

PLJX

brown - satellite harness avitar 1.blue

blue - WHITE/ blue bcm side ignition switch

voilet - heavy gauge relay 2.purple

pink/white - WHITE/ blue ignition switch side

pink - WHITE/ green ignition switch & avital heavy gauge relay 1.pink

red- 12v constant

black - chassis ground

Please review this and let me know if i'm missing something or have something wrong. thanks so much for the help!!!!

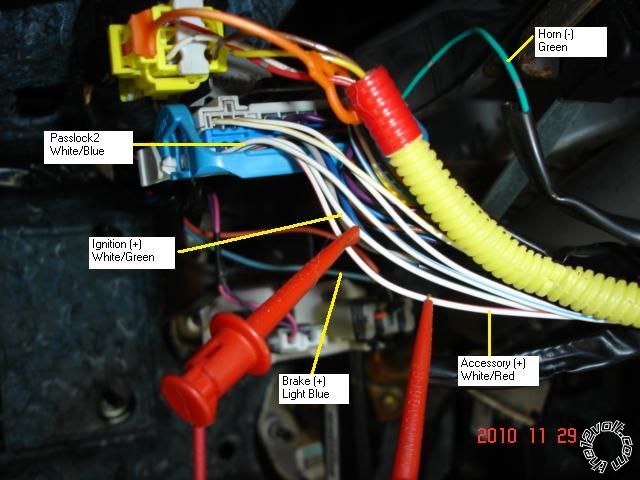

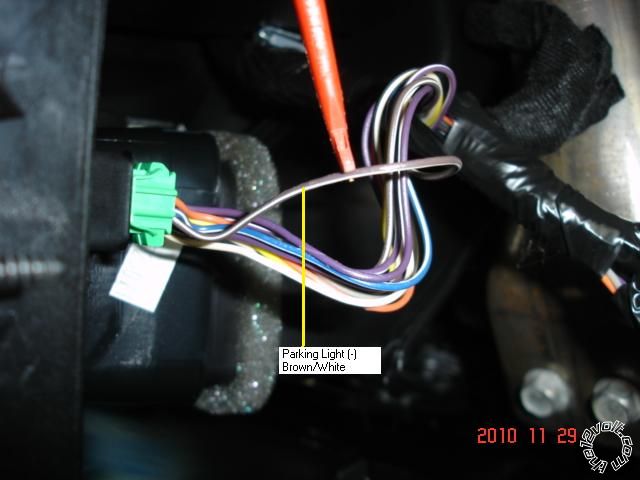

H 1/3 yellow - (+)Ignition out(to alram) - WHITE/ green ignition switch????     Not Used For the parking Lights, set the Avital to (-) and use this wire : Parking Lights BROWN / white (-) headlight switch harness It is OK to connect the Avital's heavy gauge wires to thin wires. H3/5- pink/white - (+) programmable output for accessory or ignition - ?????   Not needed H2/1 - BLACK/ white - (-) neutral safety switch input - not used   To Chassis Ground if auto trans H2/4 - gray - (-) hood pinswitch shutdown wire - not being used   Please use me.... Important safety feature. There are easier locations to get some of the wires. Here is a photo : Soldering is fun!

Thanks for the info I will do the install this weekend and let you know how it works out

Thanks again for the info. i noticed on your picture you put passlock 2. the pljx install paperwork says the colorado is an ion passlock type. Is this incorrect? does my truck have a passlock 2 system? there is a different programming method and jumper selction on the pljx if this is the case. Please let me know thanks :)

Your vehicle is passkock 2 but follow wiring and programming for ion.

Got it will do thanks!!

So i installed the pljx today and when I tried to program it had a problem. I put the key in the ignition and turn it to accessory and the motor started cranking. I continued to turn the key to start and then released it to go back to accessory and it stopped cranking over. I have double and triple checked everything and it's all installed correctly. So i tried to hold the program button on the pljx and hold the key to start and the program light doesn't come on the pljx. It does flash when the key is on accessory tho. Any idea's? The jumper is set correctly also. Faulty pljx? please let me know your thoughts. I had to use the truck so I disconnected the blue/white wire from the pljx and connected the wire back together so I could use the truck. Everything else is still hooked up and I unplugged the harness from the pljx also

PLJX does not have a blue/white wire. Do not connect start wire from remote start module to vehicle.

The blue/white wire is on the vehicle have to cut that wire and put the blue pljx wire to the bcm side of the wire and the pink/white pljx wire to the key side of the blue/white wire. I don't have the remote start hooked up yet just put the pljx. And the remote start starter wire goes to the violet start wire on the pljx

I have install the same avital 4103 remote start and keyless entry with the pljx bypass here's what I did. I turn the truck on, while running I cut the WHITE/ blue which dissables the passlock and light came on, but the truck keep running then connected the corresponding cables coming from pljx to the WHITE/ blue mention obove and press the button on the bypass modelu to program the correct resistance after the light on module turn off the light on the dash from passlock turn off. Now truck turn on and off as it should with the passlock light off might try doing the same. Do you have any updates on your side I have everything hook up but can't seem to remote start the truck any help is appreciated.
