Starter Kill - need your opinion


Post ReplyPost New Topic
< Prev Topic Next Topic >
morisah
Member - Posts: 1
Member spacespace
Joined: November 18, 2016
Location: Malaysia
Posted: November 18, 2016 at 9:35 PM / IP Logged Link to Post Post Reply Quote morisah
Hello. This is my 1st post.

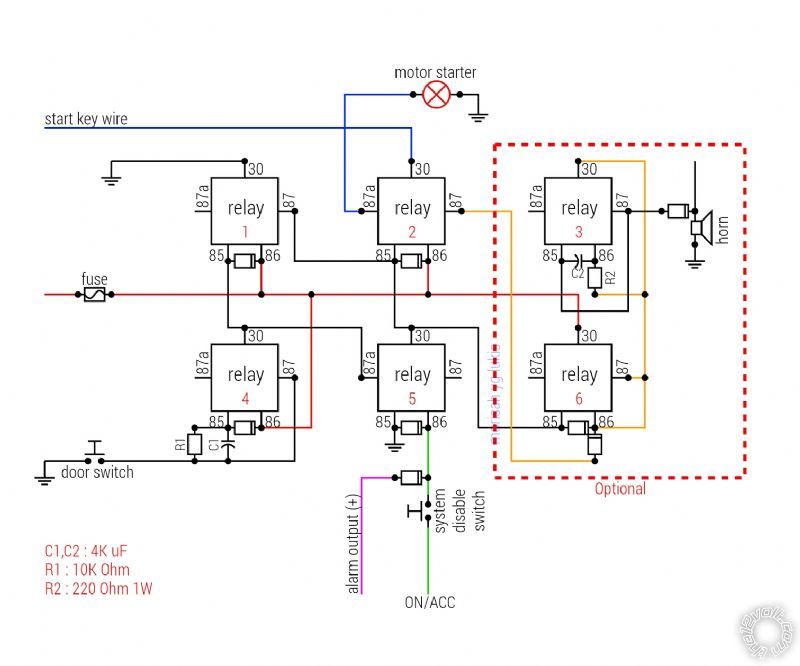

My friend ask me to do a starter kill fir him car. With very usefull information from thim site, so i draw some diagram of starter kill with some features.
I think, it will work like this;
1. when door is open switch is close, it will activate relay4 at moment.
2. Then it will ativate relay1 & 2 that will cut wire to starter motor.
3. If he not push disable switch & turn key to start then he will be activate relay3 & 6 where horn will make sound till he disable it by pushing disable switch or by remote lock.
I dont know if this will work well like i think because never play with bunch of relay like this.
I do like to all member give opinion and suggest me what the best relay or electronic components will work well in this diagram.
Thanks.
Starter Kill - need your opinion -- posted image.
