Viper 5305v2 Remote Start, 2003 Ford E-350

Home / the12volt's Install Bay / Car Security and Convenience / Viper 5305v2 Remote Start, 2003 Ford E-350

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

cencal2235

Member - Posts: 2

Joined: November 03, 2022

Location: California, United States

Posted: December 27, 2023 at 7:21 PM / IP Logged

Working on a 2003 Ford E350 Econoline Van. 5.4 GAS motor.

I am not sure that I understand the wiring from the alarm/remote start.

The three "12V Input" wires are just labeled inputs. I am not sure if they mean constant inputs or ignition switched input.

I know these Vipers are pretty common so I am hoping that someone can clear it up for me.

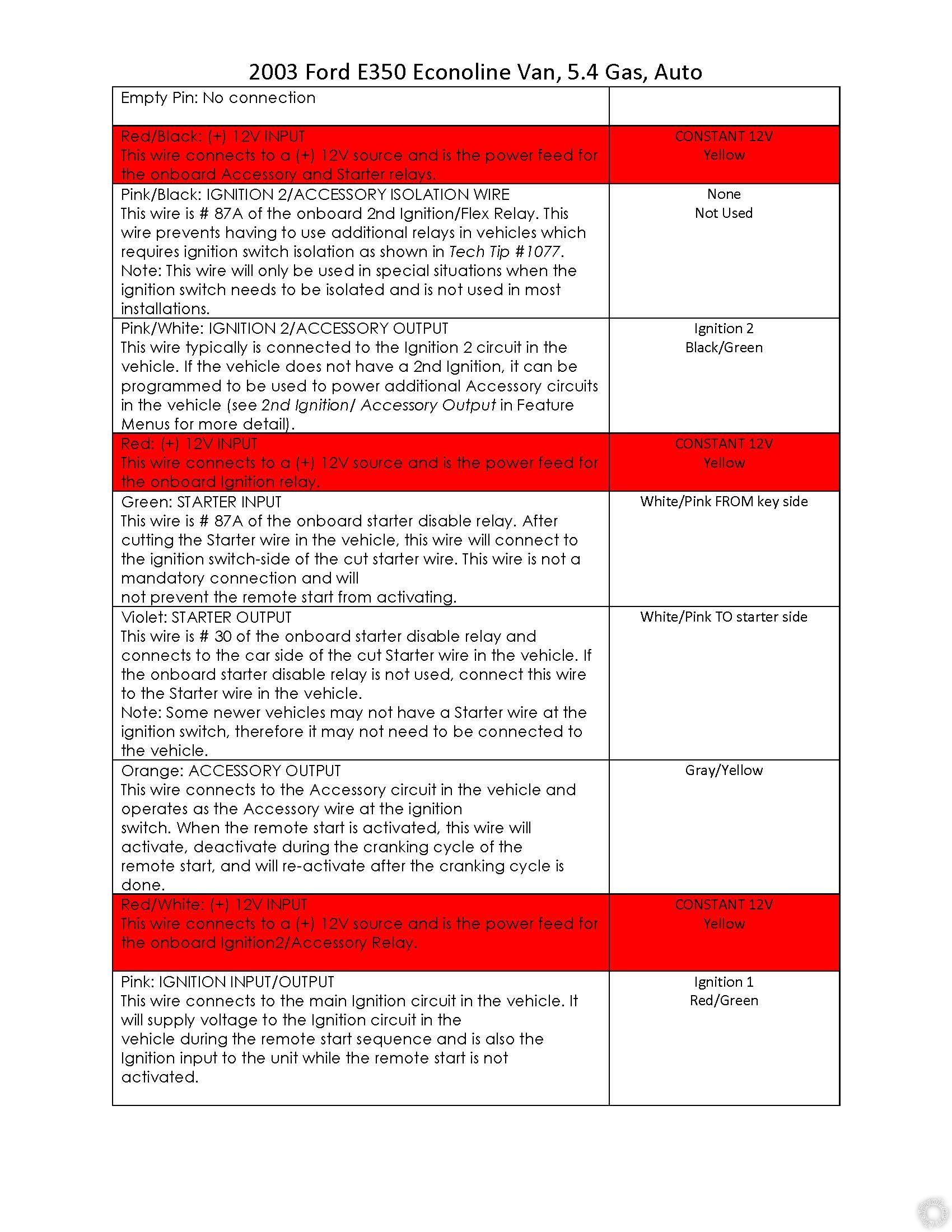

I am attaching a pic of the plan that I have. I am just not sure on the cells that I have in red and to constant or switched.

Thanks in advance for any help!!

Viper 5305v2 Remote Start, 2003 Ford E-350 -- posted image.

Back to Top

chev104275

Gold - Posts: 1,427

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: December 28, 2023 at 4:51 AM / IP Logged

RED/Black, RED and RED/White all go to a constant 12 volt source.

If i Can't Install it I Don't need it Joe

Back to Top

cencal2235

Member - Posts: 2

Joined: November 03, 2022

Location: California, United States

Posted: December 28, 2023 at 9:35 AM / IP Logged

Thank you

Back to Top
