smcross03

Member - Posts: 5

Joined: January 17, 2019

Location: Ohio, United States

Posted: January 31, 2024 at 7:48 PM / IP Logged

Hello,

I’m installing an iDatastart RS on a 2015 Armada and I

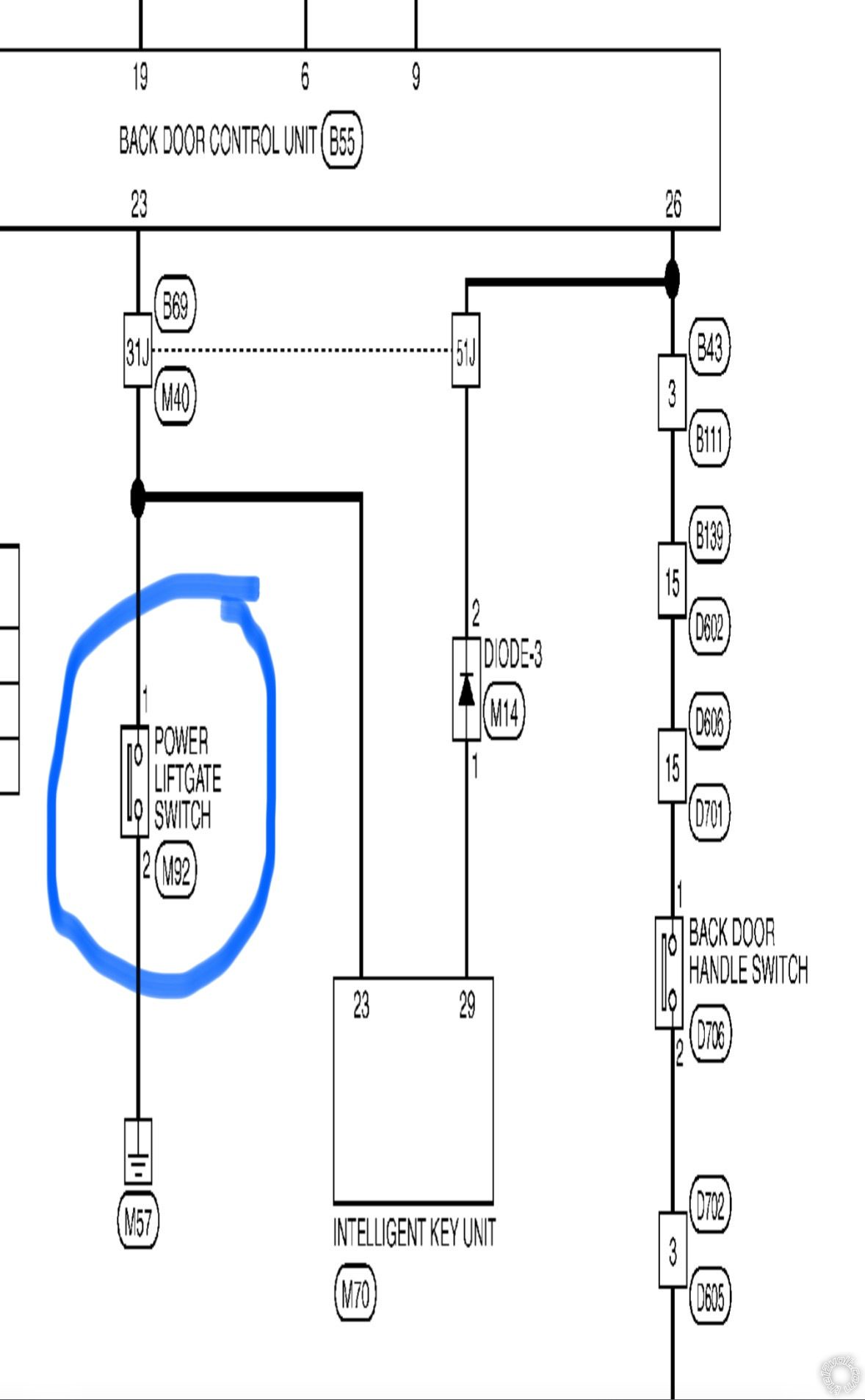

am looking for some confirmation on whether, or not, the negative trunk trigger makes a contact to ground when activated. The power liftgate switch on my Armada only makes a connection to ground when pressed. Ultimately trying to determine if I can just connect the trigger wire to the appropriate side of the switch or if should use the trigger in conjunction with a relay. Your help is greatly appreciated. I attached an image for reference. IDatastart CMHCXAO, Trunk Output? -- posted image.

IDatastart CMHCXAO, Trunk Output? -- posted image.

Thanks

Back to Top

smcross03

Member - Posts: 5

Joined: January 17, 2019

Location: Ohio, United States

Posted: January 31, 2024 at 7:51 PM / IP Logged

Adding additional details

2015 Nissan Armada Platinum

W/ intellikey. Not push to start but a keyless ignition

IDatastart CMHCXAO

Back to Top

kreg357

Platinum - Posts: 7,783

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: January 31, 2024 at 8:33 PM / IP Logged

First a little terminology. Trunk Trigger and Trunk Release.

Trunk Trigger is M3-08 Blue w/Silver Dot wire. It is looking for a (-) Input that means the trunk is open

Trunk Release is M2-03 Red/White w/Black Dot wire. It outputs a (-) signal on a trunk release command.

The Trunk Release can be programmed for various output durations, Default is .8 seconds. See Menu 2 Feature 2.

Additional programming for Trunk Release sequence - see Menu 2 Feature 14.

Anyway, connecting the R/S M2-03 Red/White Trunk Release wire to the vehicles wire at Pin 1 of the Power Liftgate Switch will work.

Below is the wire color info :

Trunk Release Activation BLUE/WHITE(-) POWER LIFTGATE SWITCH GREY 6 PIN CONN, PIN 1

Soldering is fun!

Back to Top

smcross03

Member - Posts: 5

Joined: January 17, 2019

Location: Ohio, United States

Posted: February 01, 2024 at 5:12 AM / IP Logged

Kreg357,

Thank you for the education in terminology and confirming what I had hoped was true!!

Have a great day!
