Odd relay hook up question


Post ReplyPost New Topic
< Prev Topic Next Topic >
01 Suburban LS
Member - Posts: 43
Member spacespace
Joined: September 26, 2003
Location: California, United States
Posted: December 27, 2003 at 1:46 PM / IP Logged

Well its odd for me. Probably an easy answer for some of you guys. I have a 1993 Saturn SW2 that i just installed stock fog light into. I also want to use the stock switch. The switch operates and the wiring harness for it is already inside the car. But the underhood and lighting wiring harness and underhood fuse box do not have the option for the foglamps. So in order to make the stock switch work I need to make a relay system the turns on the lights when voltage is removed.

Basically there are four wires connected to the switch.

Output
Ground
Parking light input (Supplies Voltage)
High Beam Input (Turns off fog lamps when high beams are turned on)

The output has 12 volts when the switch is off and no voltage when the switch is on.

Thanks,

-Mike

auex
Platinum - Posts: 5,041
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 23, 2002
Location: Arizona, United States
Posted: December 27, 2003 at 1:57 PM / IP Logged
01 Suburban LS wrote:

The output has 12 volts when the switch is off and no voltage when the switch is on.

Does the switch just pass a ground?   It would be easier to rewire the switch then to troubleshoot the car's wiring.
Certified Security Specialist
Always check info with a digital multimeter.
I promise to be good.
Tell Darwin I sent you.
I've been sick lately, sorry I won't be on much.
01 Suburban LS
Member - Posts: 43
Member spacespace
Joined: September 26, 2003
Location: California, United States
Posted: December 27, 2003 at 2:02 PM / IP Logged
auex wrote:
01 Suburban LS wrote:

The output has 12 volts when the switch is off and no voltage when the switch is on.

Does the switch just pass a ground?   It would be easier to rewire the switch then to troubleshoot the car's wiring.

I don think so. I thought of that and tested to see if the output went to ground once activated. When I had the multimeter connected to the output wire and to ground the LED indicator on the switch was bright when the switch was on and dim when the switch was off. (the LED sould of been off). Also its an electronic switch and a toggle of anything like that, how could I rewire that? Is it possible? If its and easier alternative, I'm up for it. I'll see if I can get a wiring schematic of the switch to show you guys.

01 Suburban LS
Member - Posts: 43
Member spacespace
Joined: September 26, 2003
Location: California, United States
Posted: December 28, 2003 at 1:49 AM / IP Logged

OK heres the schematic of the foglight switch:

"H" is the output
"F" is the high beam input
"E" is the Parking light input
"G" is ground

My knowledge of schematics is very limited. Is "H" a positive or negative output?

Odd relay hook up question -- posted image.

superchuckles
Copper - Posts: 89
Copper spacespace
Joined: December 29, 2003
Location: United States
Posted: January 10, 2004 at 10:01 AM / IP Logged

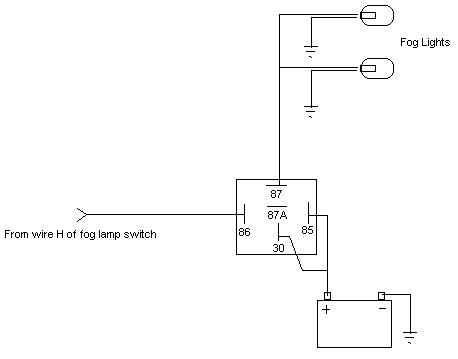

H is supposed to be a negative output.  it's really a simple circuit - but i think you have it wrong.....  E should be high beam input, and F should be parking light input -- that way the light on the switch will only be on when the fog light switch is in the ON position, and the headlights are set to low beam (it's also the only way to make the fog lights turn on with the lights in low beam, but not high beam).  hook the switch up that way, and hook up this circuit under the hood, and you'll be set

Odd relay hook up question -- posted image.

superchuckles
Copper - Posts: 89
Copper spacespace
Joined: December 29, 2003
Location: United States
Posted: January 10, 2004 at 10:23 AM / IP Logged

errr..... doh  - what i should have said was, E should be the LOW beam input, and F should be the Parking light -- with E hooked to high beam, it would only activate fogs in high beam (duh) but the indicator light would be off.  anyhow, hook E to the low beam +  and F to the parking light +   G to ground and H to pin 86 on the above diagram, and you're in bidness

this is all of course, assuming that the transistor in the schematic you provided is an NPN (because it isn't indicated the normal way - like wiith an arrow on one leg).

01 Suburban LS
Member - Posts: 43
Member spacespace
Joined: September 26, 2003
Location: California, United States
Posted: January 19, 2004 at 12:40 PM / IP Logged

I guess I should come here more ofter and check replies. Thanks for your help. I'll give it a try.

-Mike
