2 wire door actuator


Post ReplyPost New Topic
< Prev Topic Next Topic >
LittleBill
Copper - Posts: 72
Copper spacespace
Joined: May 16, 2003
Location: United States
Posted: January 23, 2004 at 3:13 PM / IP Logged
hi i recently purchased 2 door actuator, i only have a question which may be obvious to people, anyway to make the actuator go in and out, u must reverse the polarity on both sides, ex one side is pos and the other is neg, to make it operate the other way it must then be connected neg, pos, is there like some simple way to wire this up or am i looking at 2 relays or do they make a reverse polarity switch which is nice, wire colors are green and blue by the way
LittleBill
Copper - Posts: 72
Copper spacespace
Joined: May 16, 2003
Location: United States
Posted: January 23, 2004 at 3:47 PM / IP Logged

i found the scematic, by chance is there a switch that does the work of the 2 relays for you?

hotrodelectric
Copper - Posts: 112
Copper spacespace
Joined: March 13, 2002
Location: United States
Posted: January 24, 2004 at 1:03 AM / IP Logged
Try a standard (early 80's GM for example) power window switch. 1 + input, 1 or 2 - input(s), and 2 outputs.
Sandungero24
Member - Posts: 44
Member spacespace
Joined: February 24, 2004
Location: United States
Posted: February 25, 2004 at 8:19 PM / IP Logged

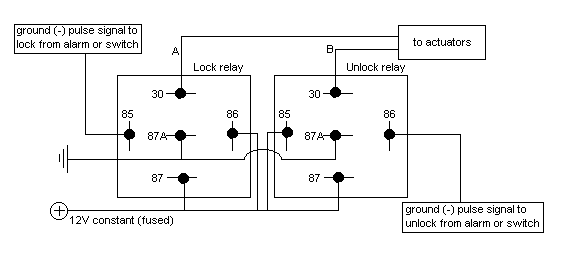

2 wire door actuator -- posted image.
Sandungero24
Member - Posts: 44
Member spacespace
Joined: February 24, 2004
Location: United States
Posted: February 25, 2004 at 8:20 PM / IP Logged

this diagram only applies if the "trigger" wires from the alarm provide a pulsed ground (-) to lock/unlock. If they provide a pulsed positive (+) instead, you will have to ground the opposite 85/86 terminal to allow the relay to work. Actually, my alarm allowed me to use either pulsed (-) or (+), I just chose to use the (-).
