Not sure if I'm posting in the right place but here goes....

Getting ready to convert my sister's 88 camry to power doors locks along with a keyless entry/alarm system. I'm curious about one thing. I've seen a 4 door "central locking" kit with two 5 wire (master) actuators that I can get at a good price. I know it's not really necessary because of the keyless entry, (it's more for visual appeal) but I'd like to also add a lock/unlock switch. Has anyone added a lock/unlock switch to a central locking power lock kit? Or would I be better off just going with four 2 wire actuators, a dual relay pack, and the switch?

Duane...

If you think you're confused, imagine how you feel. Power door lock Switch -- posted image.

defective

Silver - Posts: 642

Joined: August 20, 2003

Location: Canada

Posted: February 23, 2004 at 4:11 PM / IP Logged

2wire IMO

mo12v

Platinum - Nominee - Posts: 2,748

This member consistently provides reliable information

Joined: September 30, 2003

Location: Afghanistan

Posted: February 23, 2004 at 4:22 PM / IP Logged

AAMP of America has a nice 4 Door kit WITH the Switch #APDLK4. You can add a Keyless Entry with simple Negative pulse for Lock and Unlock and the Doors are accessable from Driver or Passenger Front doors.

Don't Learn from Others Mistakes

You Might Be the One That Knows.

draasch

Gold - Posts: 2,172

Joined: February 07, 2003

Location: Florida, United States

Posted: February 25, 2004 at 8:57 AM / IP Logged

Sweekster, you can pretty much go any route you want.

if you buy a kit with the switch, it should be pretty much straight forward. if you decide to add your own switch, you will need to have three wires coming off of the switch. one for ground and the other two for the lock and unlock wires.

they all are pretty much the same....

Good Luck

David

Ace Security

813-376-9778

Tampa

Donate to the 12volt

spunkzz

Member - Posts: 13

Joined: February 29, 2004

Posted: March 02, 2004 at 1:08 PM / IP Logged

i'm also trying to install a door lock switch into my avital 4300 system with door actuators...i have this all installed in a 92 civic and have everything wired plus have the oem honda switch that has three prongs.....i know one is ground and the other two i jus cut into the blue and green wires....does anyone know if this will somehow mess with the arming and disarming of the system when the unlock or lock buttons are pressed?

thanks in advance!

Sandungero24

Member - Posts: 44

Joined: February 24, 2004

Location: United States

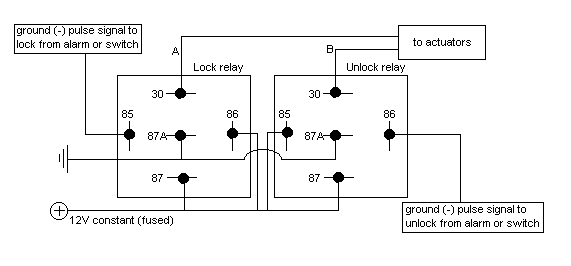

Posted: March 02, 2004 at 9:36 PM / IP Logged

spunkzz

Member - Posts: 13

Joined: February 29, 2004

Posted: March 02, 2004 at 11:52 PM / IP Logged

i'm using the 451M door relay already with my avital system..how do incorporate jus one driver side switch to this setup? the 451M has 5 wires...right now i have a purple +12V, brown and white grounded, and blue and green as lock and unlock to two door actuators....how would i put a oem honda switch that has 3 prongs to this setup?
