2004 Chevy Suburban VSS

Home / the12volt's Install Bay / Mobile Video, GPS, and Navigation / 2004 Chevy Suburban VSS (

Topic Closed)

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

alfredaa

Member - Posts: 3

Joined: April 28, 2005

Location: United States

Posted: April 29, 2005 at 12:08 PM / IP Logged

Hello,

Can anyone tell me where I can located the vehicle speed sensor? I think I may have found it but I want to make sure before I tap into it. I am installing a Kenwood navigation system and would really appreciate the help. Also, I need to track down the back up light wire, if anyone has a wiring diagram that would be great.

Thanks,

Alfred

Back to Top

Satkunas

Copper - Posts: 97

Joined: April 04, 2005

Location: Canada

Posted: April 29, 2005 at 2:50 PM / IP Logged

Not 100% sure but you may be able to get it at the radio plug. Check the light-GREEN / WHITE in that plug.

Back to Top

NowYaKnow

Gold - Posts: 1,217

Joined: December 18, 2002

Posted: April 29, 2005 at 4:41 PM / IP Logged

VSS - GREEN / WHITE @ the instrument cluster

Backup - Light green (+) pull the fuse cover off the left side of the dash and it should be in that harness there. If not check both door sills.

Mike

Back to Top

alfredaa

Member - Posts: 3

Joined: April 28, 2005

Location: United States

Posted: May 02, 2005 at 10:19 AM / IP Logged

Thanks Mike,

I got the gauge cluster off and found the GREEN / WHITE wire, but there are 3 of them? Just tap into anyone of the three?

Back to Top

NowYaKnow

Gold - Posts: 1,217

Joined: December 18, 2002

Posted: May 02, 2005 at 3:56 PM / IP Logged

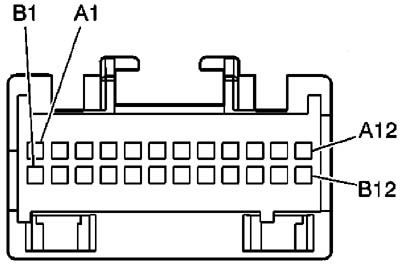

2004 Chevy Suburban VSS -- posted image.

Pin:

A1: BROWN / White - MIL Control

A2: Not Used

A3: BLACK/ White - Low Washer Fluid Control

A4: Dark GREEN / WHITE - Vehicle Speed Signal

A5: White - Engine Speed Signal (Tach)

A6: Gray - IPC Class 2 Serial Data

A7: Not Used

Sorry about that should've been more descriptive.. The wire you want is in pin A4. I've listed some of the other wires around it to help you pick it out. Hope it helps,

Mike

Back to Top

alfredaa

Member - Posts: 3

Joined: April 28, 2005

Location: United States

Posted: May 02, 2005 at 4:25 PM / IP Logged

Thanks Mike. I appreciate all the help.
