reed switch wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 04, 2007 at 8:45 AM / IP Logged

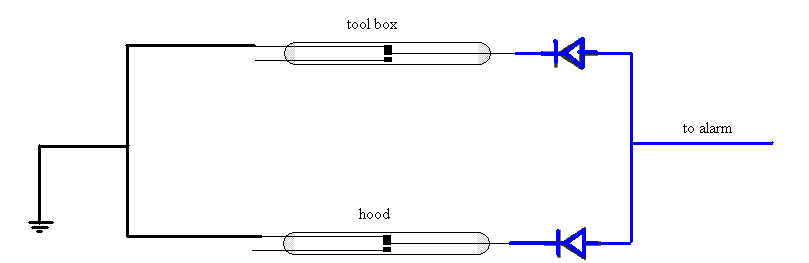

I am installing a 350hv on my truck. I'd like to use the instant trigger (-) Zone 1 input for my hood and toolbox if possible. Below is what I think the wiring should be, is that correct?
reed switch wiring -- posted image.
jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 04, 2007 at 8:53 AM / IP Logged
Sorry should have included this in the previous post...The magnet will be next to the switch while the hood/toolbox is closed it would be in the N/O position (not pictured) and then when it is pulled away I was thinking it would go to the N/C (above). Is there a better way to do this? I am somewhat worried that the magnet/switch will lose their polarity over time.

Sorry, you can NOT post a reply.
This topic is closed.
