viper aux output


Post ReplyPost New Topic
< Prev Topic Next Topic >
jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 16, 2007 at 3:59 PM / IP Logged
I just finished installing a 350HV. I want to use the aux output to turn on my head lights. Do I need to use a relay to do this?
enice
Silver - Posts: 857
Silver spacespace
Joined: March 05, 2006
Location: New York, United States
Posted: June 16, 2007 at 5:02 PM / IP Logged

Highly recommend it.

KarTuneMan
Platinum - Posts: 7,056
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: December 14, 2004
Location: Isle Of Man
Posted: June 16, 2007 at 5:36 PM / IP Logged
What kind of vehicle? This does make a diff. Some you will need to use a relay....others you will not!
jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 16, 2007 at 7:12 PM / IP Logged
Dodge RAM 1500, 2001. From the Hayne's manual, the wire that controls the head lights is light green. When I tested that wire it went from +12V to ground when I turn the lights on. So I am wondering if I need to connect the output from the alarm to a relay that switches to ground, or just use the output from the alarm itself? The output is -200mA. I really appreciate the help.
jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 16, 2007 at 8:13 PM / IP Logged

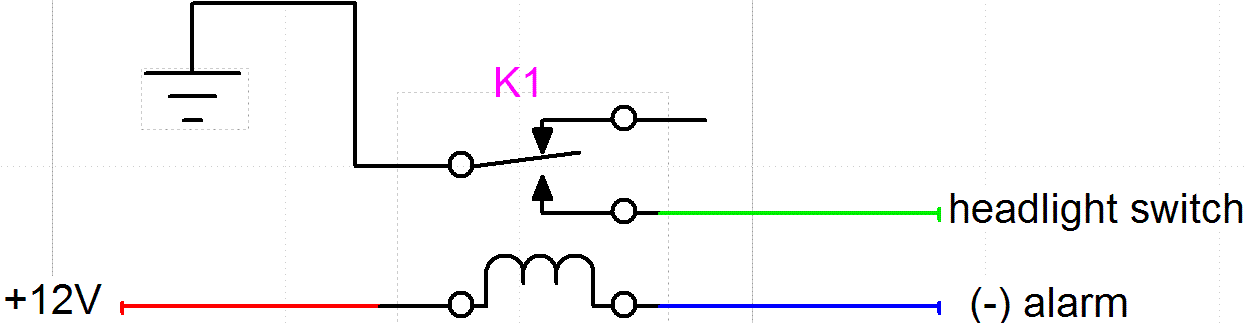

viper aux output -- posted image.
This is what I was thinking.
peterubers
Silver - Posts: 706
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 29, 2006
Location: United States
Posted: June 17, 2007 at 10:55 PM / IP Logged

Um, I can't recall for sure, but don't think it's that simple:  I know the dodge/chrysler's need to see a certain resistance in the headlight wire to turn on:

Check this link:

https://www.the12volt.com/installbay/forum_posts.asp?tid=67105&KW=ram+headlight

I'm not sure if the 2001 is different .. if the 2001 is a simple 12 volt + wire for turning the headlights on, then wiring as follows:

85: 12 volts fused (+)

86: aux output from brain (-)

87: to headlight wire on Dodge Ram(+)

30: 12 volts fused(+)

The search function is your friend.
enice
Silver - Posts: 857
Silver spacespace
Joined: March 05, 2006
Location: New York, United States
Posted: June 17, 2007 at 11:10 PM / IP Logged

According to DEI it is a light green wire at the light switch.  Victory technology states that it is a GREEN/ black wire at the same switch.  Post which is right.  By the way, DEI states that this wire needs a high current ground so yes you do need a relay. Either way both are (-) triggers.

jurb
Member - Posts: 39
Member spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: May 23, 2007
Location: United States
Posted: June 18, 2007 at 9:40 AM / IP Logged
So I got it to work using a SPST relay from Radio Shack. For a 2001 Dodge Ram it is a light green wire that comes out of the headlight switch, it's pretty easy to find once you unscrew the switch from the dash, it goes from 12V+ to 0 when the switch is turned on. The wiring of the relay was:
85: 12V+
86: Trigger from alarm
30: Ground
87: Light green headlight wire
Thanks for the help, this site is great.
