2016 Honda Civic, Remote Start Wiring

Home / the12volt's Install Bay / Vehicle Wiring Information & File Requests / 2016 Honda Civic, Remote Start Wiring

Welcome Guest :)

Members

< Prev Topic Next Topic >

frank_30

Member - Posts: 26

Joined: December 11, 2006

Location: Arizona, United States

Posted: February 24, 2016 at 12:56 PM / IP Logged

Help..has any one done a remote start in a 2016 honda civic

looking for starter wire..

"throw it in the gutter and go buy another"

frank_30

Member - Posts: 26

Joined: December 11, 2006

Location: Arizona, United States

Posted: February 25, 2016 at 11:05 AM / IP Logged

found wires at BCM ...score!!

will post pics later

"throw it in the gutter and go buy another"

tonton81

Member - Posts: 9

Joined: June 27, 2019

Location: Quebec, Canada

Posted: June 27, 2019 at 12:32 PM / IP Logged

any details on wiring color assignments and pictures?

frank_30

Member - Posts: 26

Joined: December 11, 2006

Location: Arizona, United States

Posted: June 27, 2019 at 8:06 PM / IP Logged

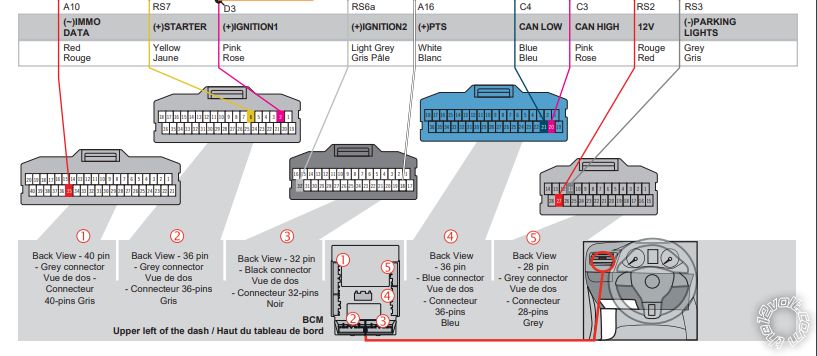

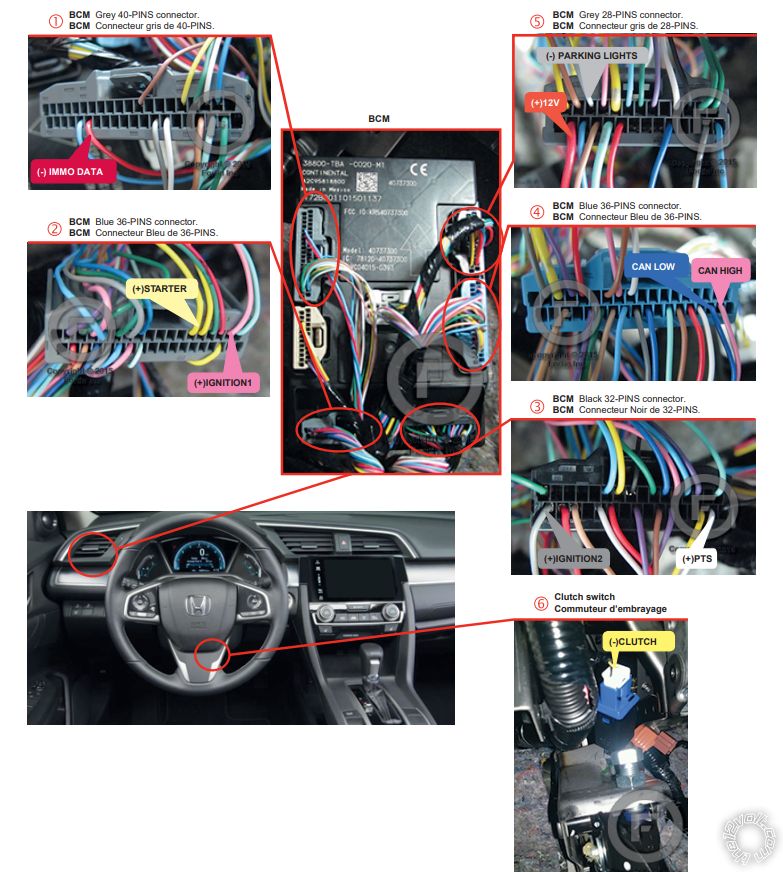

2016 Honda Civic, Remote Start Wiring -- posted image.

12v: Red

Ignition:Pink

Starter: Yellow

All at BCM

12v by itself at BCM Grey 28-PINS connector

Ignition and Starter BCM Blue 36-PINS connector

BCM is located under dash left of brake pedal un clip BCM and turn around and you will see all the Harneses

hope this helps.

"throw it in the gutter and go buy another"
