I think I'm missing something extremely basic here.

I've seen a ton of information about what diodes are, what they're used for, how to determine ratings, how to read them in electrical drawings, how and when to reverse them, etc, etc, etc, but I haven't seen anything that talks about how exactly to solder them into your connections.

Like I said, I think this is one of those things that are so basic that no one thinks that there's actually someone out there that doesn't understand.

Does the diode get soldered in-between two wires? If so, do you wrap a wire around one end of the diode and solder? How do you protect the connection (the diode seems somewhat fragile)? Is there someplace else this is going to go?

I know this is a dumb question (otherwise someone else would have asked it), but if someone could help me with this, I would greatly appreciate it. If you have pictures of how to do this, I would be happy to wash your car for you. How exactly do you solder diodes? -- posted image.

For reference purposes, I'm installing an Audiovox APS-996a in my 2003 F150 this weekend.

Thanks in advance!!

Bill

draasch

Gold - Posts: 2,172

Joined: February 07, 2003

Location: Florida, United States

Posted: May 20, 2004 at 7:48 AM / IP Logged

yes they go in-line. i would slide some heat shrink on the wire first. put the diode in place. after you make your connection, slide the heat shrink over the diode and apply a little heat to finish it off. watch the heat when you solder your connections. you can damage the diode...

Good Luck

David

Ace Security

813-376-9778

Tampa

Donate to the 12volt

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 9:41 AM / IP Logged

How exactly do you solder diodes? -- posted image.

A picture is worth a thousand words, also if you are concerned about heat destroying the diode, you can use a pair of pliers as a heatsink, or even an aligator clip works well. If you trim the leads as shown in the pic there is more of a chance of destroying the diode due to heat.

Will

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 9:47 AM / IP Logged

Maybe this pic will work

Will

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 9:52 AM / IP Logged

Pictures not showing up??

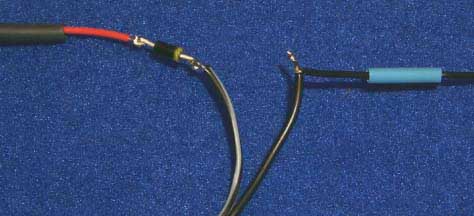

Solder Diode

Solder Diode Finished

Here are the links, for some reason the pics I ULed didn't show up.

Will

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)

Velocity Motors

Moderator - Posts: 12,488

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Fabrication. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: May 20, 2004 at 9:54 AM / IP Logged

What you needed to do is have the .jpg at the end of the picture. The second picture was linked like this :

https://www.the12volt.com/installbay/uploads/solderdiodefinished.jpg

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

Search for other posts by Velocity Motors

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 10:03 AM / IP Logged

It ended up being that way because it was .JPG not .jpg for some reason the caps made a difference.

Will

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)

Cptbrainiac

Member - Posts: 21

Joined: April 27, 2004

Location: United States

Posted: May 20, 2004 at 10:37 AM / IP Logged

Okay, so that's why no one has asked before - it really is that simple. Thank you very much for the pictures - that's always the best.

I hope I'm not posting to the wrong forum, but I have the same question regarding relays? Do I just solder directly on to the "blade" on the back of the relay? Also, should I try to hide (and loom/tape) the relays? Will the heat from soldering damage the relay?

So many basic questions....so little time (and money). How exactly do you solder diodes? -- posted image.

Again, thank you very much!

Bill

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 10:53 AM / IP Logged

This is actually a pic of a flasher, but it shows the type of harnesses that I use with relays, it makes it really easy to remove and replace the relays. Or to disable a feature just unplug the relay. I am cheap and have time to spare, so I will just go and get them from the junkyard, relays included How exactly do you solder diodes? -- posted image.

Otherwise you can just use the female blade connectors and do it that way. As far as soldering them, it would be cheap, and I don't think that the heat would hurt them, but I have never done it, it would make it really hard to replace.

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)

WillTS

Copper - Posts: 65

Joined: May 07, 2004

Location: United States

Posted: May 20, 2004 at 11:09 AM / IP Logged

On the left of the pic are insulated female blade type connectors, and on the right is one of the OEM type relay harnesses. The flasher will get a harness soon, I just have to make it to the junkyard, and the relay one still has to have some tape/loom. Hope that helps.

Will

Will Just my $00.02

97 Chevy K1500 5.7L w/ Clifford Matrix RS2

BTW I am not a professional(well at procrastination maybe)

Be Gentle, I'm new to this :-)
