1999 Ford Explorer Sport turn signal


Post ReplyPost New Topic
< Prev Topic Next Topic >
matthewinga
Member - Posts: 4
Member spacespace
Joined: January 11, 2017
Location: Georgia, United States
Posted: January 11, 2017 at 4:42 PM / IP Logged Link to Post Post Reply Quote matthewinga
I am searching for the wire color diagram for the turn signal multi switch.
1999 Ford Explorer Sport
The wires were loose and fell out. Some may have been put back in the incorrect positions. Mainly the top portion pins 1-8.
I got a replacement harness from the junkyard and the wires don't match. The discrepancy may be my own fault but I'm unsure.

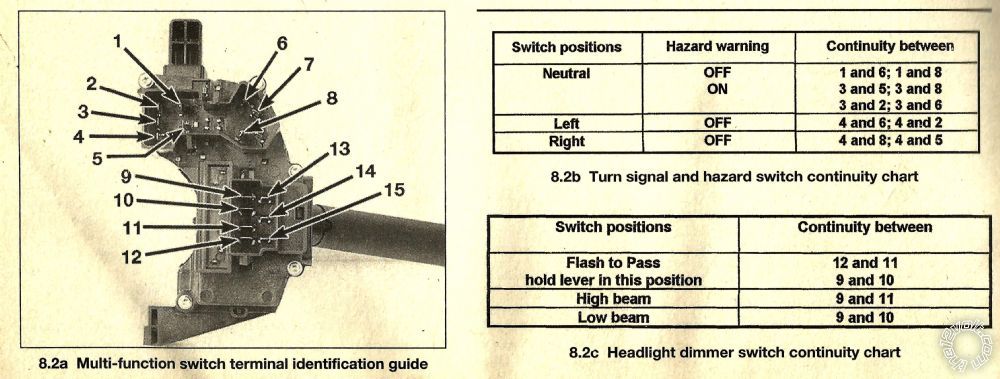

A)
1999 Ford Explorer Sport turn signal - Last Post -- posted image.
B)
1999 Ford Explorer Sport turn signal - Last Post -- posted image.
C)
1999 Ford Explorer Sport turn signal - Last Post -- posted image.

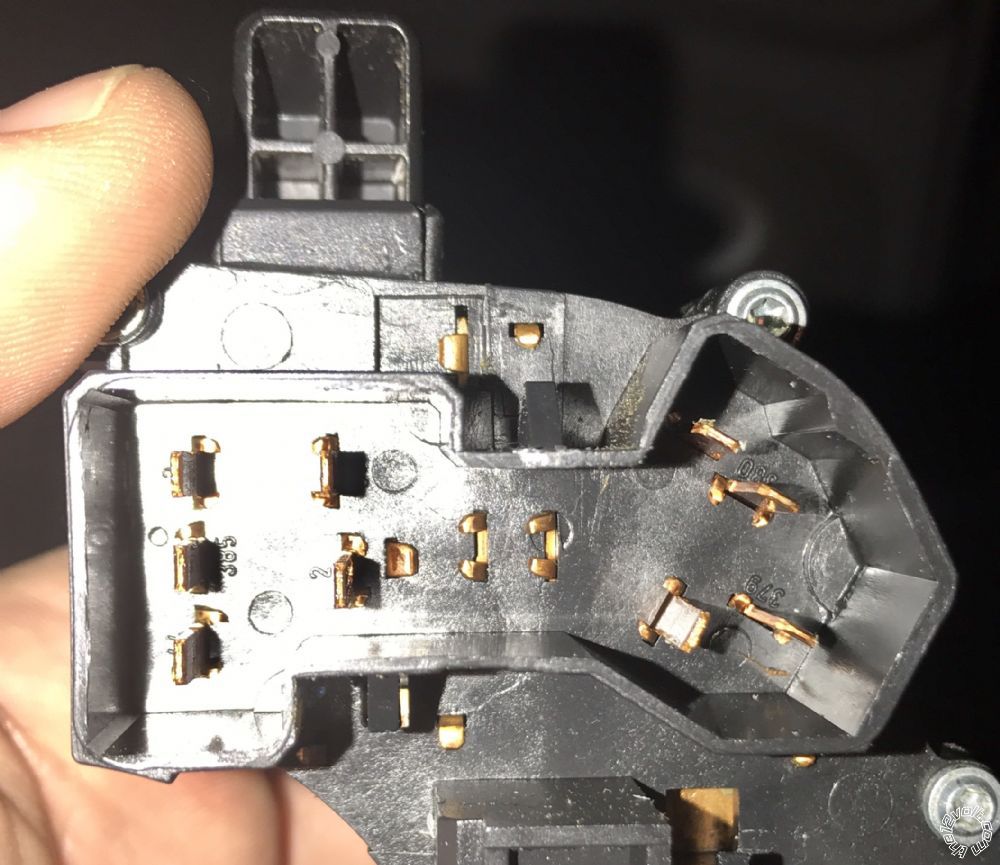

D)
1999 Ford Explorer Sport turn signal - Last Post -- posted image.

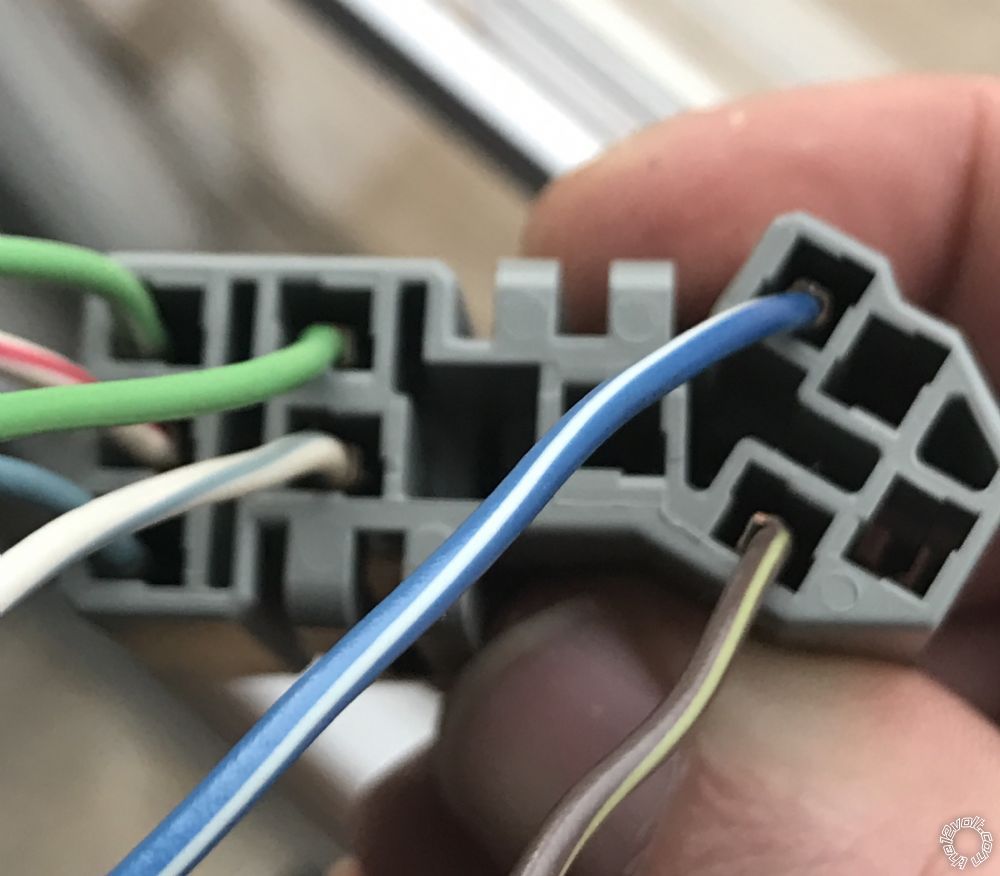

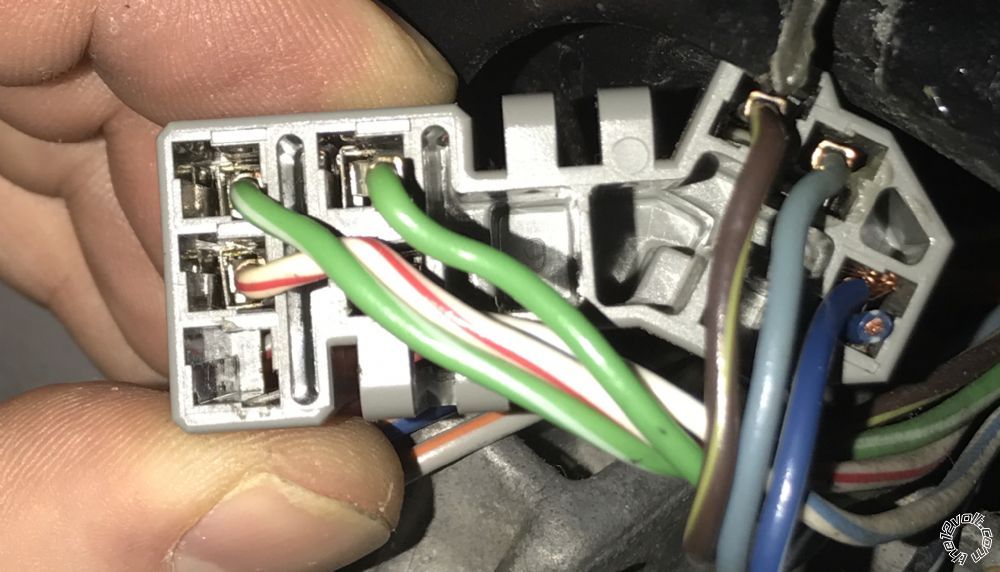

Picture C is on the vehicle
Picture D is the junkyard replacement.
As you can see the discrepancy on terminal 5 and the reverse of wires 6 & 8 color . The missing wire from between pin 7 & 8.
So I'm in trouble and in need of help as I'm stuck without a vehicle.
PLEASE HELP. Thank you
matthewinga
Member - Posts: 4
Member spacespace
Joined: January 11, 2017
Location: Georgia, United States
Posted: January 11, 2017 at 4:49 PM / IP Logged Link to Post Post Reply Quote matthewinga
Terminal 4 & 7 (not 5)
matthewinga
Member - Posts: 4
Member spacespace
Joined: January 11, 2017
Location: Georgia, United States
Posted: January 14, 2017 at 9:05 PM / IP Logged Link to Post Post Reply Quote matthewinga
Problem solved thanks to another website.
