1999 Jeep Cherokee XJ, Backup Camera Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
reidjm650
Member - Posts: 3
Member spacespace
Joined: June 07, 2025
Location: California, United States
Posted: June 07, 2025 at 12:29 PM / IP Logged Link to Post Post Reply Quote reidjm650
Im installing a touchscreen stereo with a backup camera and cannot locate the wire in the dash which runs back to the reverse lights. I’ve taken the harness apart, and I cannot find the same wire that is in the tail light housing anywhere in the cluster under the driver or passenger side kickpanel. I’m assuming it connects to something midline and change his color or I have a wiring problem with this jeep. Can anybody help me with this?
Renaissance Man
lee.lopez
Copper - Posts: 272
Copper spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: June 07, 2025 at 1:53 PM / IP Logged Link to Post Post Reply Quote lee.lopez

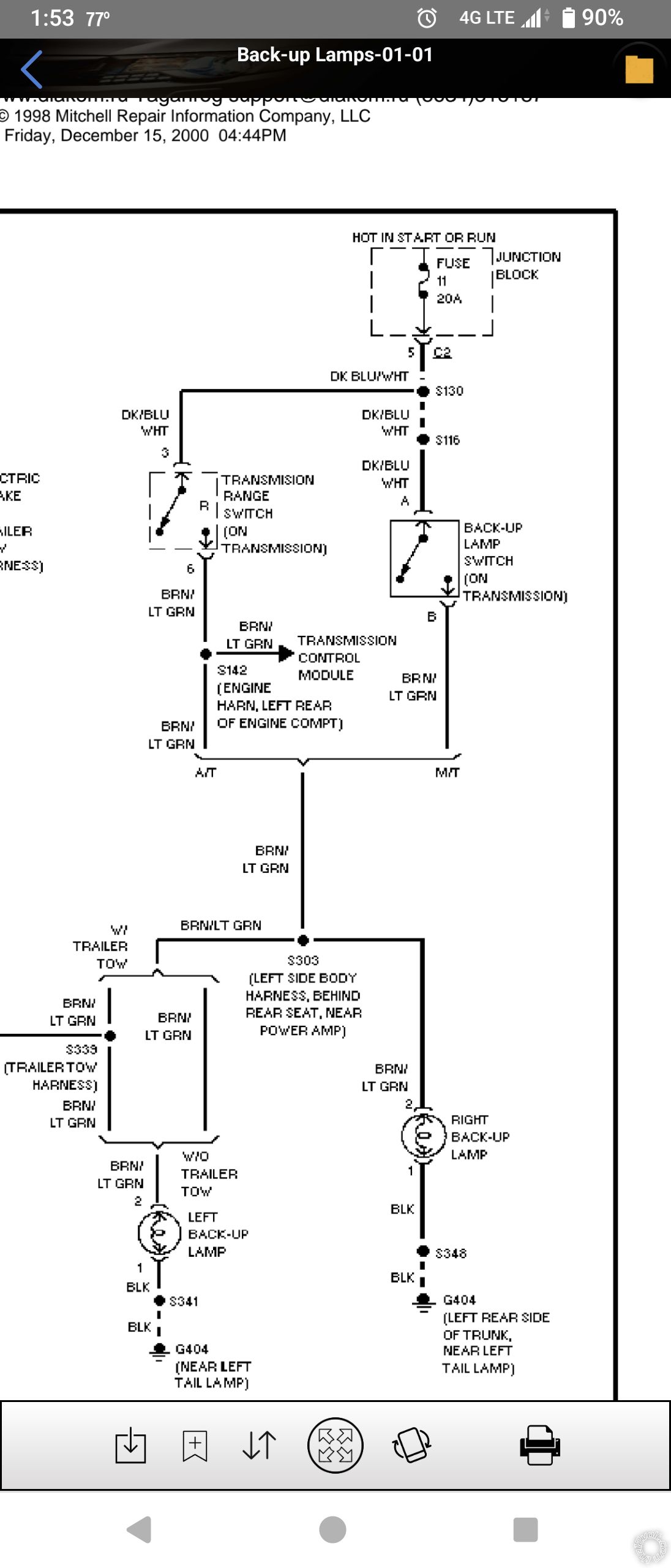

1999 Jeep Cherokee XJ, Backup Camera Wiring - Last Post -- posted image.
reidjm650
Member - Posts: 3
Member spacespace
Joined: June 07, 2025
Location: California, United States
Posted: June 07, 2025 at 8:36 PM / IP Logged Link to Post Post Reply Quote reidjm650
Thanks, I’m going to get up in the morning dash again tonight
Renaissance Man
reidjm650
Member - Posts: 3
Member spacespace
Joined: June 07, 2025
Location: California, United States
Posted: June 08, 2025 at 1:22 AM / IP Logged Link to Post Post Reply Quote reidjm650
Just to update, I found 2 wires under the dash on the driver side in the cluster below the steering column. Both are BRN/LT GRN and only one has power when the transmission is in reverse. The last time I went hunting for this I thought I had the correct wire based on the color, but didn’t get voltage. Both lights and the backup camera are now working.
Renaissance Man
