gain setting with remote level control


Post ReplyPost New Topic
< Prev Topic Next Topic >
T.Hill
Copper - Posts: 268
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: February 21, 2003
Location: Missouri, United States
Posted: June 23, 2008 at 6:06 PM / IP Logged
Well I'm finally getting around to getting things set right in my system. I guess my problem would be setting my gain on my sub amp correctly. I have read through other post and videos about setting the gains but might need an answer more tailored to my situation. My sub amp has a button that switches from 100mV-1V to 1V-10V. It says that the first one is typical for RCA installs, but my HU is rated for 5V preouts. I'm thinking it should be switched to the 1-10V. Also, both the HU and the sub amp have x-overs,, which to use? I really like to ability to turn the sub off all together from the HU. I have a really good DMM to play with but not a lot of time to try hit and miss methods of setting the gains. also where does the remote gain knob come into play with all this. Any help would be great. Thanks in advance
Pioneer DEH-P980BT, Zapco DCREF1000.4,Pioneer TS-C520PRS, Adire Extremis, MTX TA91002, TC Sounds TC-3000 15"
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: June 23, 2008 at 8:33 PM / IP Logged

1My sub amp has a button that switches from 100mV-1V to 1V-10V. It says that the first one is typical for RCA installs, but my HU is rated for 5V preouts. I'm thinking it should be switched to the 1-10V.

I have a really good DMM to play with but not a lot of time to try hit and miss methods of setting the gains.

Use your test tone CD and sine wave freqs, and set the gain using both switch positions.  Choose the position that allows for some play in turning the amp gain but results in the lower dial position.  Use several freqs in that amp's target range.  Since you are listening for the clipping, you will not need to brush off your DMM.

Gain setting, as you must know, really IS "hit or miss".  You stop adjusting and call it done when you've attained the best "hit".

2.  Also, both the HU and the sub amp have x-overs,, which to use? I really like to ability to turn the sub off all together from the HU.

With the assumption that comparison of gear quality is apples to apples, use the head unit's xover.  You can always try a switch to the other one if you can't get the sound right (when you have more time, that is.)

3.  also where does the remote gain knob come into play with all this.

See if  the manual gives you any specifics about it, but I would consider the remote knob an attenuator.  Set the gain with the remote unplugged, then turn the knob to max high and plug it in.  If the remote is plugged in while setting gain, keep it at max high position.

I'm no expert on bass remote knobs, though.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
T.Hill
Copper - Posts: 268
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: February 21, 2003
Location: Missouri, United States
Posted: June 24, 2008 at 6:57 AM / IP Logged
Thank for the reply. I read through it pretty quick but sounds like good advice. gotta get to work so I'll read through it better later. If I did want to use the DMM to get it closer electrically what would be the plan of action
Pioneer DEH-P980BT, Zapco DCREF1000.4,Pioneer TS-C520PRS, Adire Extremis, MTX TA91002, TC Sounds TC-3000 15"
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: June 24, 2008 at 9:41 PM / IP Logged

1.  Set gain by ear first, as stated above.

2.  Double check your hearing by using the DMM.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
T.Hill
Copper - Posts: 268
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: February 21, 2003
Location: Missouri, United States
Posted: June 25, 2008 at 6:10 PM / IP Logged
Well some how I didn't do the math right on wiring my sub and that led to my amp choice. I've been thinking that the reason my sub amp keeps shutting off was due to heat but now I'm thinking it may be heat due to running it at a lower ohm load than it should. It says it is quad 1ohm and I have it in series then paralleled resulting in a 1ohm load. The amp is only rated down to 2ohm bridged. The actual reading I get off the sub is 1.5ohm per coil and 1.5 where it connects to the amp. Is the amp actually seeing 1.5 or 1ohm?
Pioneer DEH-P980BT, Zapco DCREF1000.4,Pioneer TS-C520PRS, Adire Extremis, MTX TA91002, TC Sounds TC-3000 15"
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: June 25, 2008 at 8:21 PM / IP Logged

You can't really measure impedance, so it is best to use the specs on each coil.  If you have the coils series / parallel like this

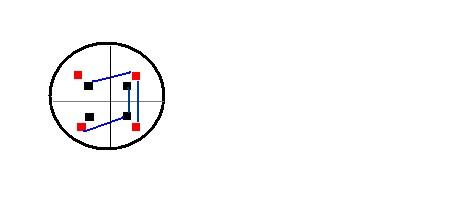

gain setting with remote level control - Last Post -- posted image.

and each coil is 1 ohm, then you indeed have a 1 ohm impedance.

You can measure DCR and from that conclude a likely impedance.  DCR * 1.3 = impedance.  Your DMM has internal resistance, so be sure to deduct that from the reading of each coil.  Touch the probes together and hold until the reading steadies.  If your DMM reads .5 ohms (for example), that is the internal resistance that is deducted from the coil reading.  (My digital multimeter has a .8 ohm internal resistance.)

Read a coil for DCR, deduct the internal resistance, then multiply by 1.3 to conclude impedance for that coil.  Reading just one coil should suffice but you could read all four and average it if you want.  If you conclude that each coil likely has a higher impedance than 1 ohm, use the parallel and series calculators linked in the left column to find the total impedance presented to the amplifier.  (If wired correctly in series / parallel, the result of one coil will be the same impedance as all four wired coils.  For example, if you conclude that each coil is actually 1.3 ohms, the resulting load on the amp will be 1.3 ohms.)

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
T.Hill
Copper - Posts: 268
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: February 21, 2003
Location: Missouri, United States
Posted: June 25, 2008 at 9:40 PM / IP Logged
I changed it where it's in series presenting a 4ohm load to the amp. Only about 1100w to which I can tell a difference. That sucks but can't blame anyone but myself. At least I'm not doing anymore damage to the amp itself. I checked the internal res of the DMM and it's .3ohm. Each coil read 1.5ohm so thats 1.2ohm x 1.3= 1.56ohm. Now would that be that hard on the amp running that much under 2ohms? I guess I'll play it like normal and seem what diference it makes.
Pioneer DEH-P980BT, Zapco DCREF1000.4,Pioneer TS-C520PRS, Adire Extremis, MTX TA91002, TC Sounds TC-3000 15"

Sorry, you can NOT post a reply.
This topic is closed.

  Printable version Printable version Post ReplyPost New Topic
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot delete your posts in this forum
You cannot edit your posts in this forum
You cannot create polls in this forum
You cannot vote in polls in this forum

  •
