I am looking for a wiring diagram for a 2000 Land Rover Range Rover. I need a little more help that what is given in the wiring diagram listed on this site. Any help is greatly appreciated.

Thanks,

Jeremy

crxbumpin@aol.com

Back to Top

Bnluis

Silver - Posts: 578

Joined: December 24, 2002

Location: New York, United States

Posted: March 10, 2003 at 9:45 AM / IP Logged

2000 Range Rover Diagram

| ITEM | WIRE COLOR |POL| WIRE LOCATION |

Notes:
*1 To interface with the negative ignition wire to remote start, see directfax document #1500 for wiring information.

Luis

Sound Waves

Is up to the installer to test all wires with a DMM whenever possible.

Back to Top

prelude1481

Member - Posts: 16

Joined: August 27, 2002

Location: United States

Posted: March 10, 2003 at 8:19 PM / IP Logged

Thanks for what you posted but can you post directfax document #1500 so that I can see how do so such and also how will I work the single wire door lock systems, what does the "F" stand for in the polarity column?

Any help appreciated,

Jeremy

Back to Top

Bnluis

Silver - Posts: 578

Joined: December 24, 2002

Location: New York, United States

Posted: March 11, 2003 at 2:11 PM / IP Logged

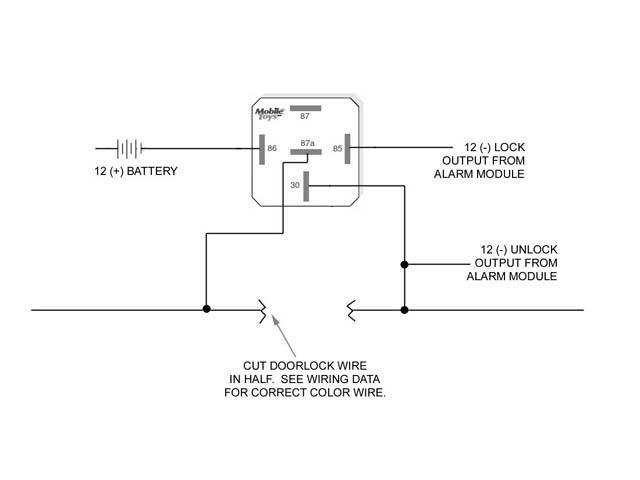

Type F is the type of door lock sysstem wire it this way, also follow the link for document 1500. Good luck.

http://www.directechs.com/techtips/pdfs/resources/security/directed_techtips/1500.pdf

2000 Range Rover Diagram Request -- posted image.

Luis

Sound Waves

Is up to the installer to test all wires with a DMM whenever possible.
