i am an idiot

Platinum - Posts: 13,674

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: January 10, 2009 at 5:42 PM / IP Logged

This is not my scope, it is the scope visualization of Windows Media Player.

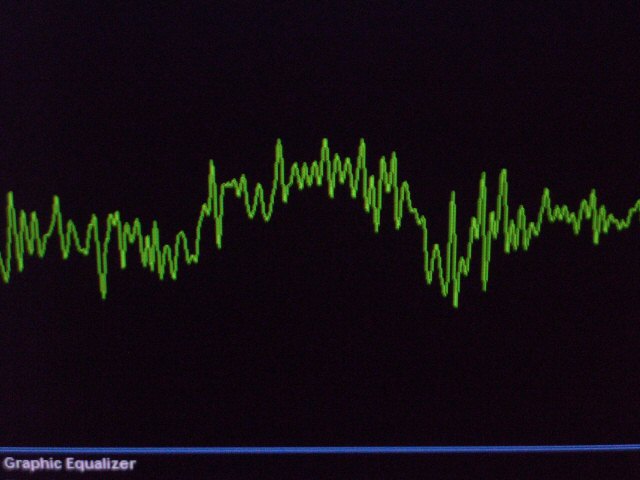

A non clipped audio signal. Not a sinewave

setting gains - Page 2 -- posted image.

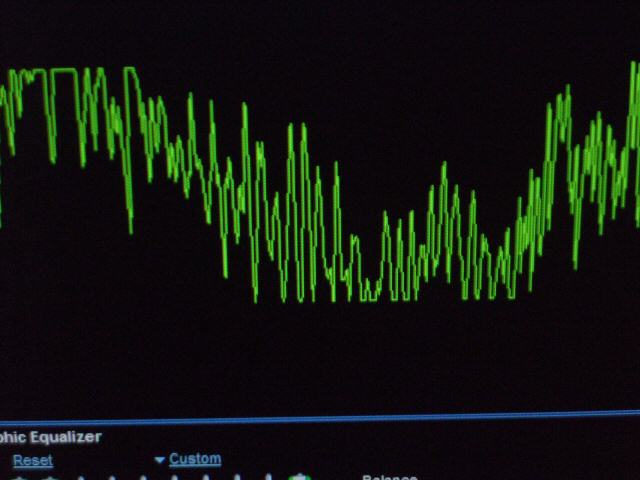

A moderately clipped audio signal.

setting gains - Page 2 -- posted image.

Hope this helps.

Back to Top

jmelton86

Gold - Posts: 1,228

Joined: February 07, 2007

Location: South Carolina, United States

Posted: January 12, 2009 at 10:22 PM / IP Logged

I like how in Windows Media Player you can see clipped signals. It's cool and stuff.

2013 Kia Rio -90a alternator

DDX470HD GTO14001 GTO1014D (x3)

Big3 in 1/0G

1/0G to GTO14001

Back to Top

mike creel

Member - Posts: 4

Joined: January 05, 2009

Location: Illinois, United States

Posted: January 13, 2009 at 10:27 AM / IP Logged

This is exactly what he said the sine wave would look like on the osscilliscope. The peaks start flattening out when the signal starts clipping.

reeldeal67

Back to Top
