iceman7329

Member - Posts: 23

Joined: January 02, 2007

Location: United States

Posted: August 20, 2009 at 5:40 PM / IP Logged

Ok, so I need some wiring help. I have an electric motor that is a standard red and black 2 wire motor. I have a switch that will make the motor run forward or reverse with 3 wires, one green, blue and black. The green closes the circuit with the black one way and the blue the other way.

Now, I need to build a control unit using relays (I think 2 should do it) to make this motor and switch work. Its been a while and I'm having a hard time, any help?

Back to Top

i am an idiot

Platinum - Posts: 13,670

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: August 20, 2009 at 5:53 PM / IP Logged

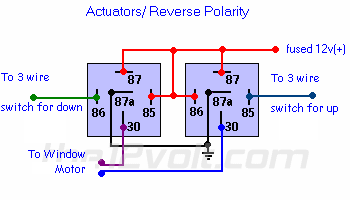

making a control box -- posted image.

Wires at bottom that are labeled To Window Motor, connect to your motor. You need to ground the black wire of your switch. Connect the other 2 wires of the switch to the 2 wires labeled To 3 wire switch.

Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB

Back to Top

iceman7329

Member - Posts: 23

Joined: January 02, 2007

Location: United States

Posted: August 20, 2009 at 8:15 PM / IP Logged

Thank you. I was looking for that diagram as I know its pretty much the same as a window motor but couldn't find it.

Back to Top

i am an idiot

Platinum - Posts: 13,670

Joined: September 21, 2006

Location: Louisiana, United States

Posted: August 20, 2009 at 8:28 PM / IP Logged

https://www.the12volt.com/doorlocks/page3.asp#arp

Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB

Back to Top

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: August 21, 2009 at 5:47 PM / IP Logged

Or change to a DAV 5 terminal window lift switch from Spal etc. Cheaper than a pair of relays.
