Hey,

i got a 94 Protege and my cousin messed

up all the stereo wiring and the

radio that came with the car...

Anyways, now i have this ridiculous

wires coming out thru the hole

where the stereo was...

and i got this Kenwood kdc-3100 that

ive been trying to wire,

but some of the wires on the car

have the same colors and i couldnt figure out

where to plug...

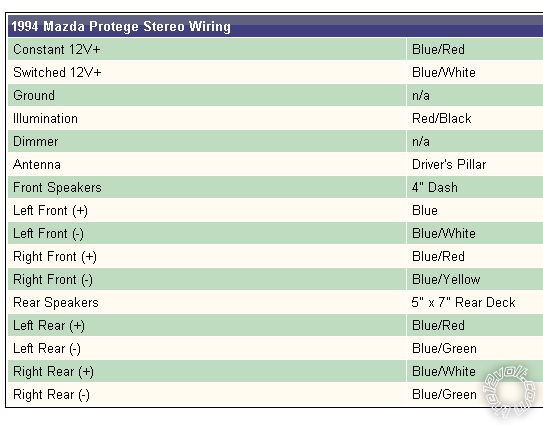

so heres the wiring diagram i found

for the car stereo wiring on this website:https://www.the12volt.com/installbay/stereodetail/1397.html (theres a few Blue/white ones thats gettin me confused):

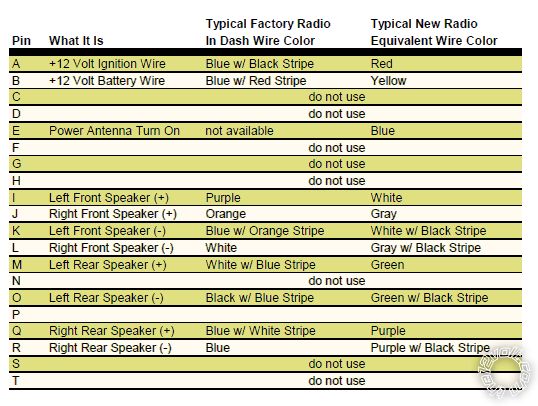

1994 mazda protege, kdc 3011 -- posted image.

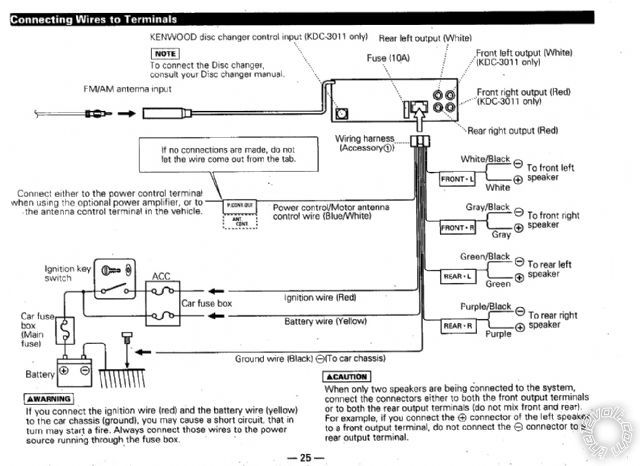

and heres the kdc-3100 wiring diagram:

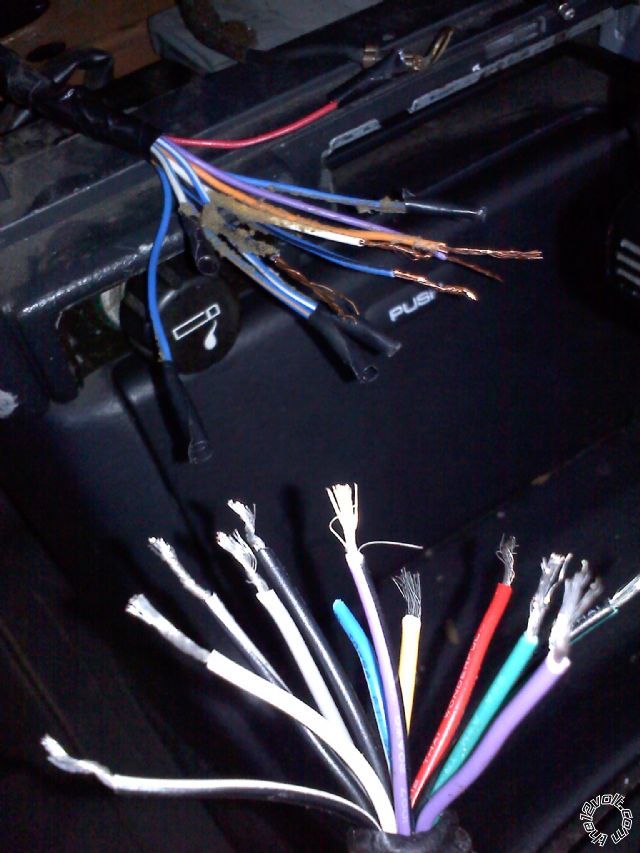

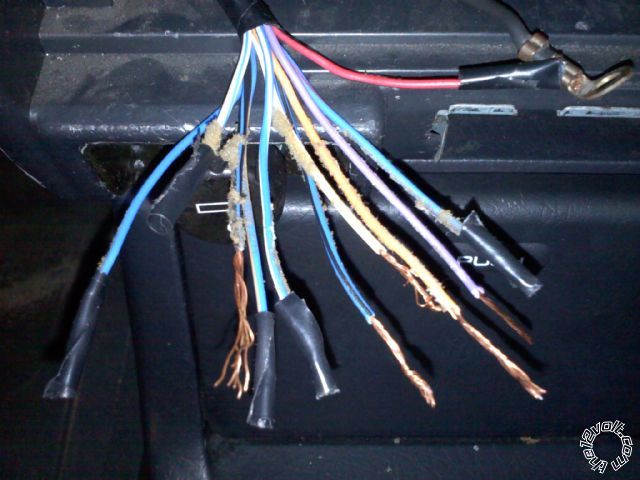

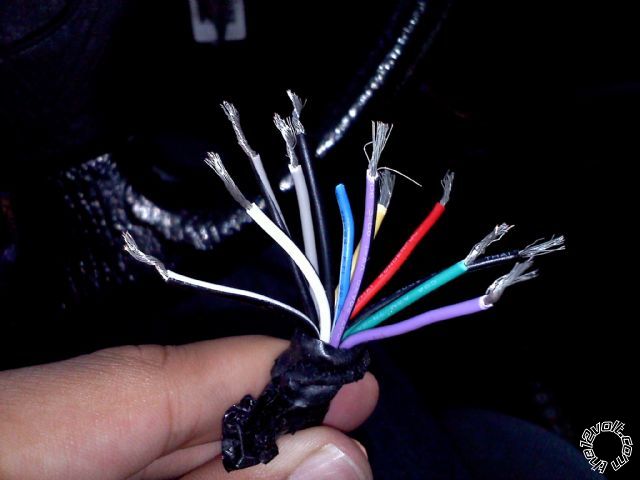

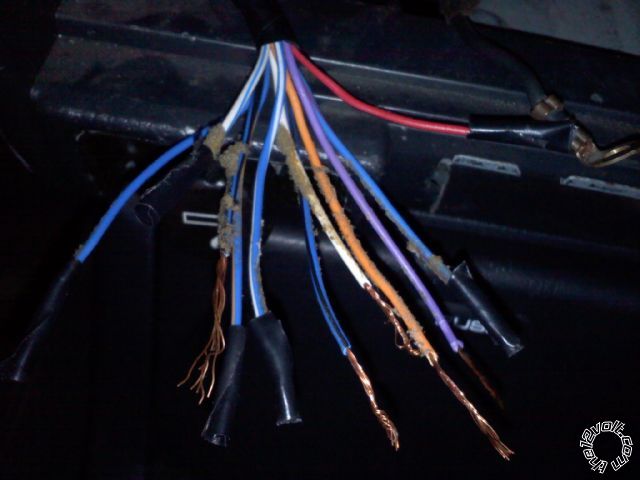

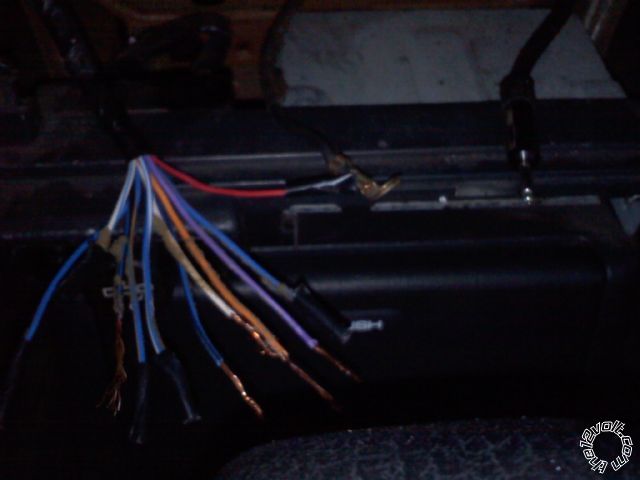

and heres how my car and the kenwood wires

are:

can someone gimme a help?

Back to Top

t1tu

Member - Posts: 3

Joined: October 20, 2010

Location: Massachusetts, United States

Posted: October 20, 2010 at 9:29 AM / IP Logged

t1tu wrote:

CORRECTION : KDC- 3011

Back to Top

mrm1776

Copper - Posts: 100

Joined: October 08, 2010

Location: Texas, United States

Posted: October 20, 2010 at 4:13 PM / IP Logged

Yikes, man. My first thought as a professional is take it to a professional.

Do you have multi-meter? You're gonna need to do some testing. I can't tell you exactly which Blue/White is which without having a meter.

MECP Basic Installation Tech

Certification ID: CEA195600

Pioneer AVIC-X920BT

Polk Audio DXi 6500 - front

Rockford Fosgate Power T1693 - rear

Alpine MRP-F300

Alpine MRP-M500

Alpine SWR-1242D

Back to Top

afdanw

Copper - Posts: 74

Joined: August 06, 2010

Location: Oklahoma, United States

Posted: October 20, 2010 at 4:25 PM / IP Logged

Agree, take it to a pro. Also if you take it to them, they can order and install the plug that has been cut off, instead of just wiring your radio harness to it. That will get it back to how it was from the factory. Then if you ever change radios in the future, it will be a much easier install.

If your cousin is such a good installer, and he will install anything for a 6 pack; why are you talking to me?

Back to Top

oldspark

Gold - Posts: 4,913

Joined: November 03, 2008

Location: Australia

Posted: October 20, 2010 at 5:56 PM / IP Logged

You could use a 1.5V or 3V battery to test the speaker pairs. (Listen for the pop as you connect/disconnect the battery from the correct speaker pairs.)

Back to Top

t1tu

Member - Posts: 3

Joined: October 20, 2010

Location: Massachusetts, United States

Posted: October 21, 2010 at 8:23 AM / IP Logged

so i used this parameter to connect the wires

to each other...

and i found out that blue/white is different fron

WHITE/ blue so i connected them all to their respective

wire

but the player still didnt turn on =S

Back to Top
