asiansensation7

Member - Posts: 10

Joined: June 15, 2010

Location: Florida, United States

Posted: March 13, 2011 at 9:57 PM / IP Logged

Hey guys, I'm wondering if it's possible to retrigger a DEI 528T pulse timer relay while the timer is running. For example, I'll set the timer on 30 seconds and send a +12v trigger pulse. After 15 seconds, I'll send another trigger pulse. Will this keep the +12v relay output on for 45 seconds total? Or does the 528T not support retriggering?

Thanks!

Back to Top

Search for other posts by asiansensation7

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 14, 2011 at 11:08 AM / IP Logged

Test it and let us know!

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: March 20, 2011 at 1:27 PM / IP Logged

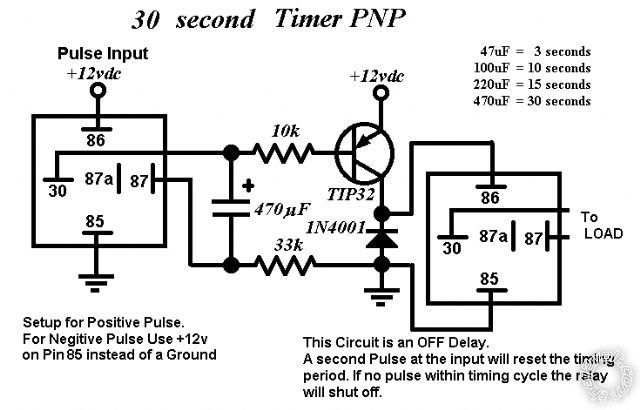

Here is another way without the DEI Timer Module.

dei 528t retrigger? -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

Search for other posts by hotwaterwizard
