I want to add a wireless system to my 5th wheel toy-hauler to control the slides, jacks and awning.
I am drawing a blank on how to wire this system up because the switches that are in there are already 5 wire resting neutral.
How do I 5 wire a 5 wire neutral system?
the12volt
Administrator - Posts: 3,955
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: April 02, 2011 at 1:15 AM / IP Logged

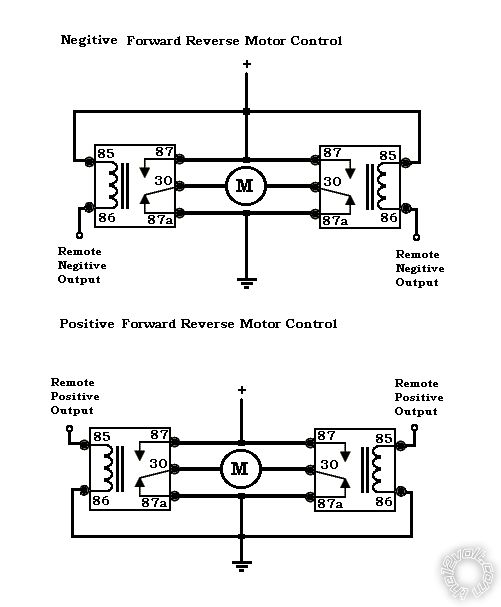

If both motor legs are normally open, have a peek at this: https://www.the12volt.com/relays/relaydiagram2.html

need a relay guru -- posted image. the12volt • Support the12volt.com
drgixxer
Member - Posts: 2
Member spacespace
Joined: April 02, 2011
Location: Alberta, Canada
Posted: April 02, 2011 at 1:23 AM / IP Logged
I think that might just work.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 06, 2011 at 12:58 AM / IP Logged

I thought he had a 5 wire system????

https://www.the12volt.com/relays/relaydiagram3.html

need a relay guru -- posted image.

need a relay guru -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
the12volt
Administrator - Posts: 3,955
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: April 06, 2011 at 1:17 AM / IP Logged
Read his description again. The motor legs are normally open.
need a relay guru -- posted image. the12volt • Support the12volt.com
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 07, 2011 at 12:53 AM / IP Logged

A wiring diagram of the existing circuit would help. Some people call the ground leg a neutral.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
