2 wires on pin 87


Post ReplyPost New Topic
< Prev Topic Next Topic >
01sesedan
Member - Posts: 40
Member spacespace
Joined: January 04, 2003
Location: Florida, United States
Posted: January 17, 2012 at 4:15 PM / IP Logged
This is for a 1999 Jeep Cherokee XJ.
Currently upgrading the headlight wiring harness to 10 gauge. I'm using 30 amp relay for low beam and 40 amp for high.
I know a dual 87 pin relay would work but don't have on me.
I was thinking of using an 8 gauge butt connector. Twist together both low beams and crimp to one end of the butt connector. Then come out the other side of the butt connector with a singe 10 gauge to the relay using 10 gauge quick disconnect female spade. Will this also work.
Thanks
xchrisx
Copper - Posts: 197
Copper spacespace
Joined: August 19, 2008
Location: Pennsylvania, United States
Posted: January 18, 2012 at 4:34 PM / IP Logged
Don't use butt connectors, use SOLDER! But yes, that should work.
bp
01sesedan
Member - Posts: 40
Member spacespace
Joined: January 04, 2003
Location: Florida, United States
Posted: January 18, 2012 at 9:15 PM / IP Logged
Didn't think about solder. Guess I was over thinking the setup.
Now I have to locate a ceramic h4 connector that I can put together.
xchrisx
Copper - Posts: 197
Copper spacespace
Joined: August 19, 2008
Location: Pennsylvania, United States
Posted: January 19, 2012 at 1:43 PM / IP Logged
Good luck, but remember, if you try an cheap out, you're going to spend more and something WILL go wrong, I have done it myself a couple of times and it is not worth it!
bp
01sesedan
Member - Posts: 40
Member spacespace
Joined: January 04, 2003
Location: Florida, United States
Posted: January 19, 2012 at 2:25 PM / IP Logged
Has any used 4 relays? One for each low and high beam.    Someone indicated it might be a better setup.   way if a relay goes bad, I only loose one instead of both.
I have plenty 87 and 87a relay in both 30 and 40 amps.
Problem is find the correct location under the hood for this setup. Not too much space under the hood of an XJ cherokee.
xchrisx
Copper - Posts: 197
Copper spacespace
Joined: August 19, 2008
Location: Pennsylvania, United States
Posted: January 19, 2012 at 4:12 PM / IP Logged

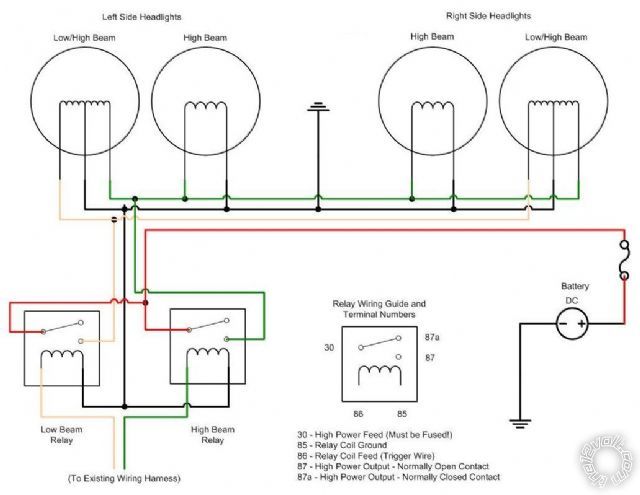

Here you go with 2 relays.2 wires on pin 87 -- posted image.
bp
01sesedan
Member - Posts: 40
Member spacespace
Joined: January 04, 2003
Location: Florida, United States
Posted: January 22, 2012 at 12:02 PM / IP Logged
Thanks. Will start working on it once the ceramic connectors come in....
