dpdt switch

Home / the12volt's Install Bay / Relays / dpdt switch (Topic Closed Topic Closed)
Welcome Guest :)

Post ReplyPost New Topic
< Prev Topic Next Topic >
nboog
Member - Posts: 10
Member spacespace
Joined: March 29, 2012
Location: Michigan, United States
Posted: April 02, 2012 at 8:13 PM / IP Logged
Could I use a dpdt momentary switch with this setup, or would I need a spdt momentary switch?

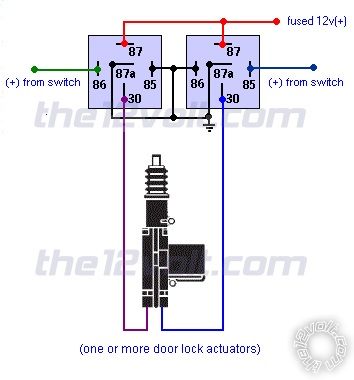

dpdt switch -- posted image.
i am an idiot
Platinum - Posts: 13,667
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 02, 2012 at 9:25 PM / IP Logged

You can use a dpdt switch, but you will use only one pole of said switch.

nboog
Member - Posts: 10
Member spacespace
Joined: March 29, 2012
Location: Michigan, United States
Posted: April 02, 2012 at 9:50 PM / IP Logged
so I would cap off one side, or would I wire them together?
i am an idiot
Platinum - Posts: 13,667
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 02, 2012 at 10:18 PM / IP Logged
No need to cap off the unused 3 terminals.  You can use both poles if you wish.
nboog
Member - Posts: 10
Member spacespace
Joined: March 29, 2012
Location: Michigan, United States
Posted: April 04, 2012 at 6:47 PM / IP Logged
so both the positives from the relays would go to both on prongs on the switch, and the off would be grounded?
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 04, 2012 at 7:04 PM / IP Logged
Connect nothing to ground because at rest the grounds would be fed to the relays.
i am an idiot
Platinum - Posts: 13,667
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 04, 2012 at 11:02 PM / IP Logged

Let me look for a picture.

howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 05, 2012 at 1:51 PM / IP Logged
It has just occurred to me that with a DPDT switch you wouldn't even need relays.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 05, 2012 at 8:39 PM / IP Logged

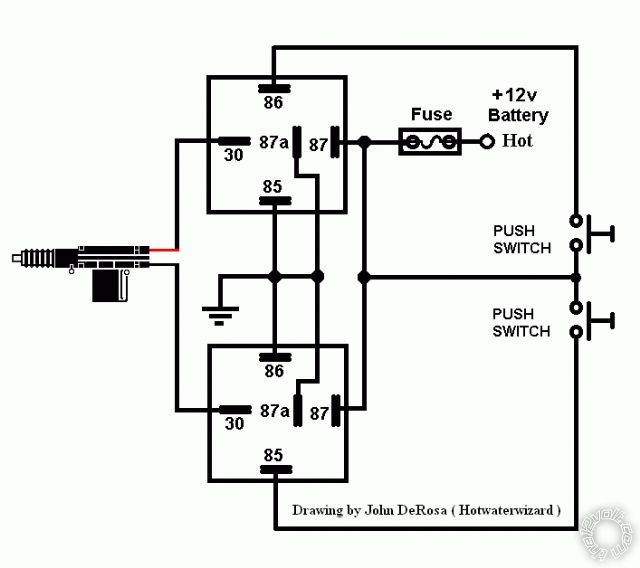

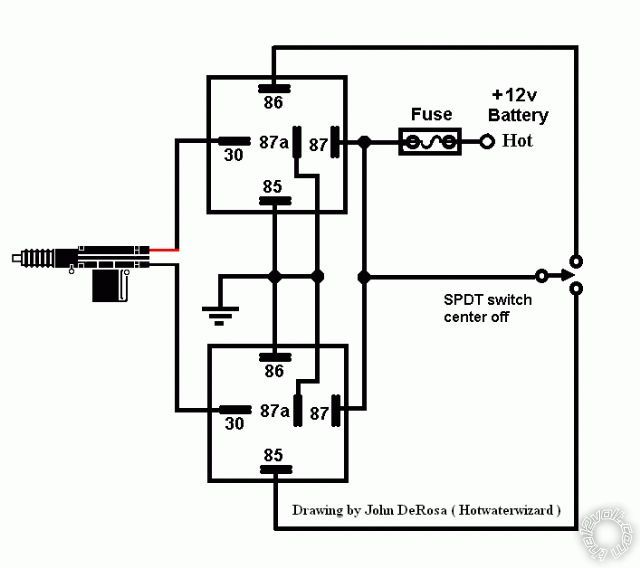

dpdt switch -- posted image.

dpdt switch -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
nboog
Member - Posts: 10
Member spacespace
Joined: March 29, 2012
Location: Michigan, United States
Posted: April 06, 2012 at 10:05 AM / IP Logged
Awesome thank you guys very much!
