control wiring diagram anyone?


Post ReplyPost New Topic
< Prev Topic Next Topic >
jj1960
Member - Posts: 3
Member spacespace
Joined: April 08, 2012
Location: United Kingdom
Posted: April 08, 2012 at 5:44 AM / IP Logged

can anyone sort this out for me . i cannot get my head around it

i need a wring diagram to do the following

i have a  fan controller that operates a fan when it reaches a certain temperature ,instead of the fan i want it to operate an 12 volt 2 wire actuator

when the desired temperature is reached the power comes on and the actuator will open , when the temperature drops the power to the actuator will be cut .and  i need the actuator to  then close by having the polarity reversed and getting the power to do this from somewhere  . is this possible

i hope you can understand what i am asking and give me a solution

thanks

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 08, 2012 at 7:53 PM / IP Logged

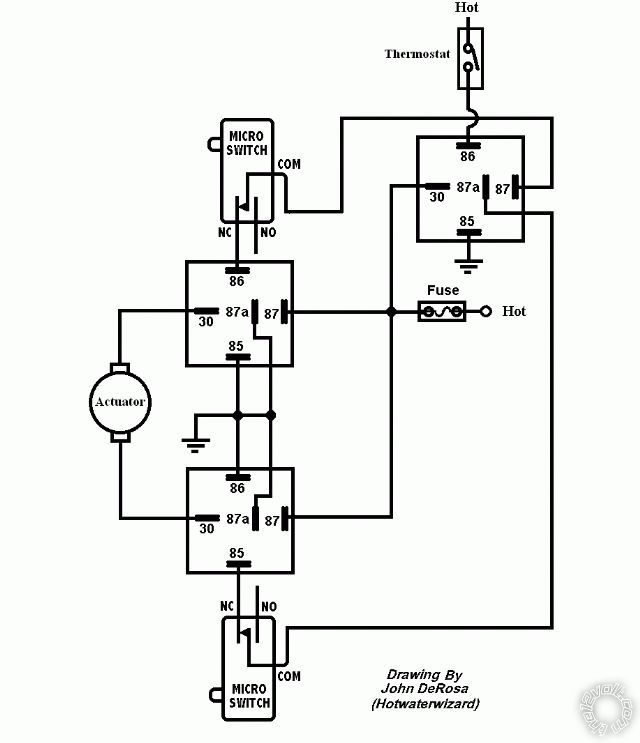

There is a way to do it but you need th be able to stop the action when the actuator reaches it's full extension and retraction. Micro switches are commonly used for this.

control wiring diagram anyone? -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
jj1960
Member - Posts: 3
Member spacespace
Joined: April 08, 2012
Location: United Kingdom
Posted: April 09, 2012 at 2:05 AM / IP Logged

i couldn't see the wood for the trees

must have had brain freeze or something

thankyou very much

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 16, 2012 at 7:38 PM / IP Logged
Please Let me know if the diagram works.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
jj1960
Member - Posts: 3
Member spacespace
Joined: April 08, 2012
Location: United Kingdom
Posted: February 04, 2013 at 10:26 AM / IP Logged

sorry for taking so long to get back to you but thought i would let you know that it works lovely
