trigger relay when device powered on


Post ReplyPost New Topic
< Prev Topic Next Topic >
jassing
Member - Posts: 2
Member spacespace
Joined: April 21, 2012
Location: Washington, United States
Posted: April 21, 2012 at 8:45 PM / IP Logged
I have a transceiver -- it has no "remote on" output -- it has 12volt +/- -- What I want t do is when I turn on the transceiver, a relay is triggered (to power up an amplifier)
I tried putting a 12v relay "in line" with the transceiver, but it used too much power and the transceiver didn't fully power up.
Any ideas?
thanks
wysiwyg
Member - Posts: 17
Member spacespace
Joined: September 03, 2007
Location: Louisiana, United States
jassing
Member - Posts: 2
Member spacespace
Joined: April 21, 2012
Location: Washington, United States
Posted: April 22, 2012 at 5:16 AM / IP Logged
Thanks; but that relies on speaker output to trigger it, no?
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: April 22, 2012 at 3:45 PM / IP Logged

Does the Tranciever have an on off switch that clicks or just a pushbutton?

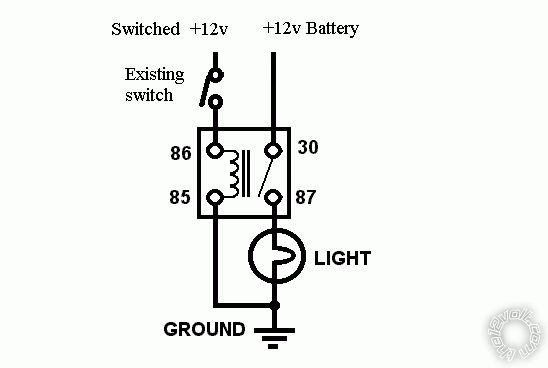

I would solder a tap off the switch to power a cube relay.

trigger relay when device powered on -- posted image.

If you are powering it with AC Voltage here is another way

Automatic Load Sensing Power Switch

http://www.aaroncake.net/circuits/loadswitch.asp

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
