Quicksilver337

Member - Posts: 7

Joined: March 04, 2005

Location: United States

Posted: June 01, 2012 at 10:26 PM / IP Logged

Hi Guys, I want to integrate an aftermarket alarm with my factory alarm which already has remote start. I want to be able to use my factory key fob. All I need is to verify the wires in the truck so I can install a Factory keyless entry upgrade to vehicle security system. Can someone PLEASE help me out with this.

Thanks in Advance...

Back to Top

Quicksilver337

Member - Posts: 7

Joined: March 04, 2005

Location: United States

Posted: June 12, 2012 at 4:40 PM / IP Logged

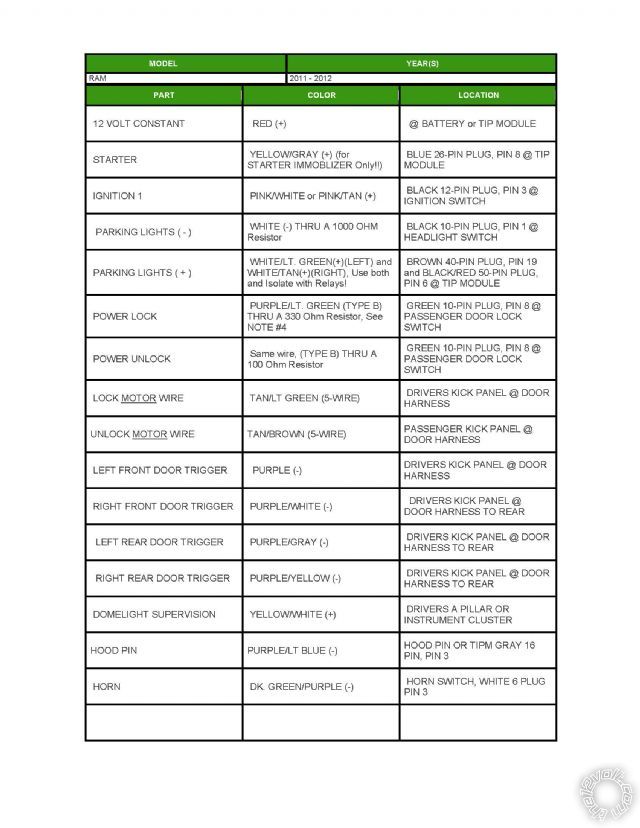

Since I didn't get any help.. I took it upon myself and identify each wire to do the install. Here is the wires required to install an alarm install in 2012 Ram 1500.

2012 Ram 1500 Alarm Wiring -- posted image.
