nuggy26

Member - Posts: 5

Joined: July 13, 2012

Location: Texas, United States

Posted: July 13, 2012 at 1:03 PM / IP Logged

Hey guys just trying to hook factory back up camera to aftermarket double din. Do anyone have any suggestions?

nuggy

i am an idiot

Platinum - Posts: 13,709

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: July 13, 2012 at 7:56 PM / IP Logged

With the OEM system, where did the camera display?

Mike M2

Platinum - Posts: 2,652

Joined: June 29, 2005

Location: United States

Posted: July 13, 2012 at 10:08 PM / IP Logged

The camera shows in the mirror if there's no factory nav. On this truck i found it easiest to just go to the plug on the mirror for signal. Further up the plug 4 wires go into a coax cable feeding the camera. 2 are signal and 2 are power for the camera, don't remember which is what but it's easy to figure out. It is a 7 volt camera so use your DVM to determine which are right.

If it's a nav truck your SOL because the nav supplies the power for the camera.

Mike M2

Tech Manager

CS Dealer Services

nuggy26

Member - Posts: 5

Joined: July 13, 2012

Location: Texas, United States

Posted: July 14, 2012 at 1:33 AM / IP Logged

Its a small flip down screen that hangs kinda buy the rear view mirror

nuggy

i am an idiot

Platinum - Posts: 13,709

Joined: September 21, 2006

Location: Louisiana, United States

Posted: July 14, 2012 at 1:55 PM / IP Logged

Either way, nav unit or standalone monitor, you should be able to interface it with an aftermarket deck.

How many wires are there on the harness that supplies the monitor?

Does the monitor power up when you put the vehicle in reverse? or is there a separate power button?

nuggy26

Member - Posts: 5

Joined: July 13, 2012

Location: Texas, United States

Posted: July 14, 2012 at 5:29 PM / IP Logged

9 wires and powers up when in reverse. No seperate power button

nuggy

Mike M2

Platinum - Posts: 2,652

Joined: June 29, 2005

Location: United States

Posted: July 14, 2012 at 8:15 PM / IP Logged

The flip down was rare, but still a 7 volt camera. Back then Fugitsu Ten made all Toyotas stuff and all the cameras were 7 volt buy them. Have you tried looking further up the harness for a sheilded harness inside the monitor harness?

Mike M2

Tech Manager

CS Dealer Services

nuggy26

Member - Posts: 5

Joined: July 13, 2012

Location: Texas, United States

Posted: July 14, 2012 at 8:35 PM / IP Logged

I have pics but how do I post them

nuggy

i am an idiot

Platinum - Posts: 13,709

Joined: September 21, 2006

Location: Louisiana, United States

Posted: July 14, 2012 at 9:36 PM / IP Logged

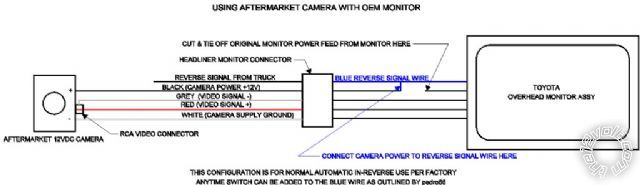

08 tundra factory back up camera -- posted image.

i am an idiot

Platinum - Posts: 13,709

Joined: September 21, 2006

Location: Louisiana, United States

Posted: July 14, 2012 at 9:37 PM / IP Logged

The previous image is exactly opposite of what you are trying to do. The wire colors may help you with your project.
